MAX 100-150KTL3-X LV/MV Introduction

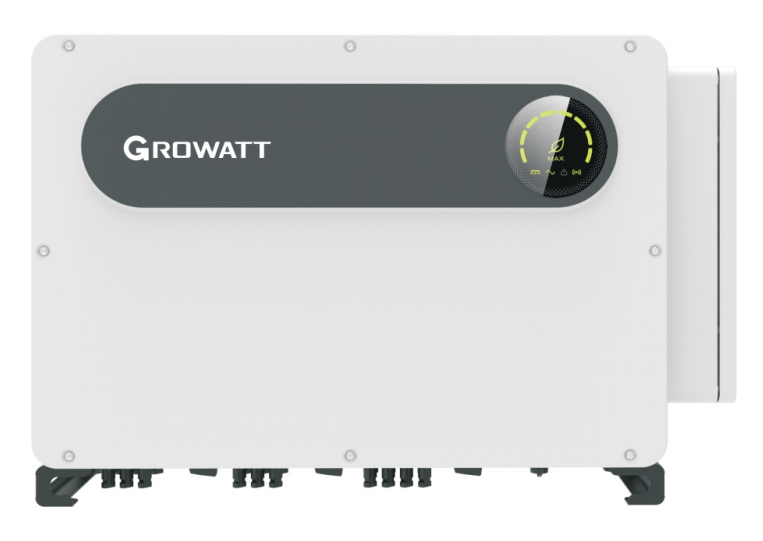

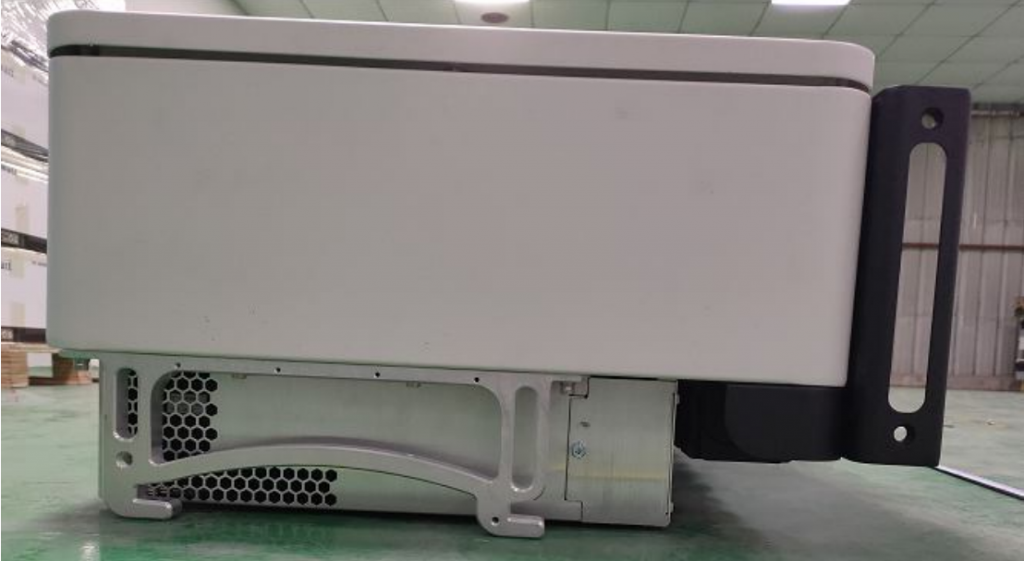

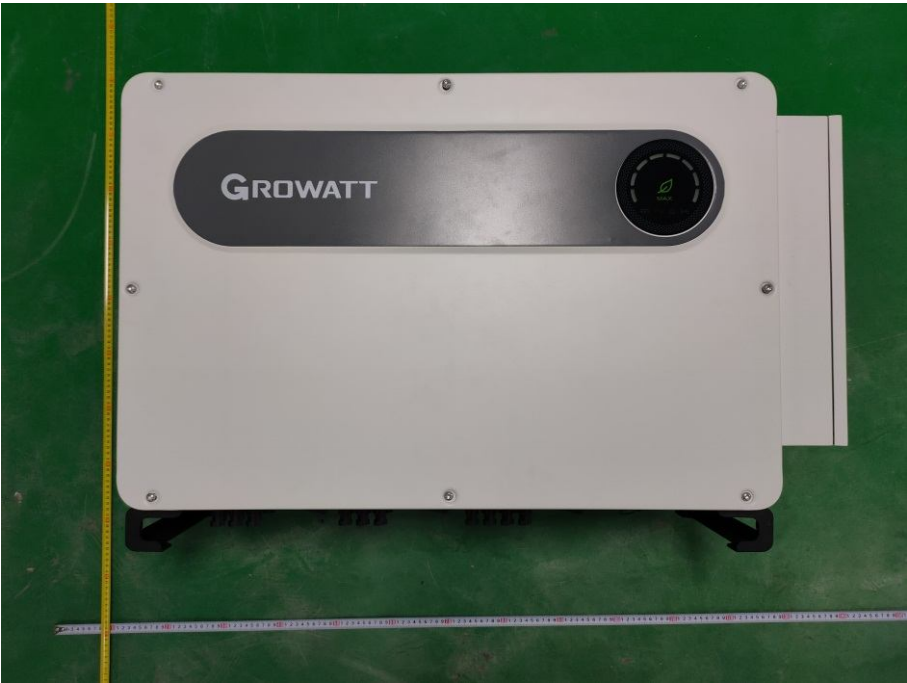

MAX 100-150KTL3-X LV/MV

MAX 100-150KTL3-X LV/MV has same modbus protocol type with MAX 50-80KTL3 LV/MV

MAX 100-125KTL3-X LV


▲ BOOST has a total of 10 MPPTs, each with only a single IGBT (freewheeling diode SiC), and different MPPTs work with each other
operate in interleaved mode; There are 10 channels in boost, and each channel does not play waves at the same time, but the other is that 10 channels are interleaved on average within 360°

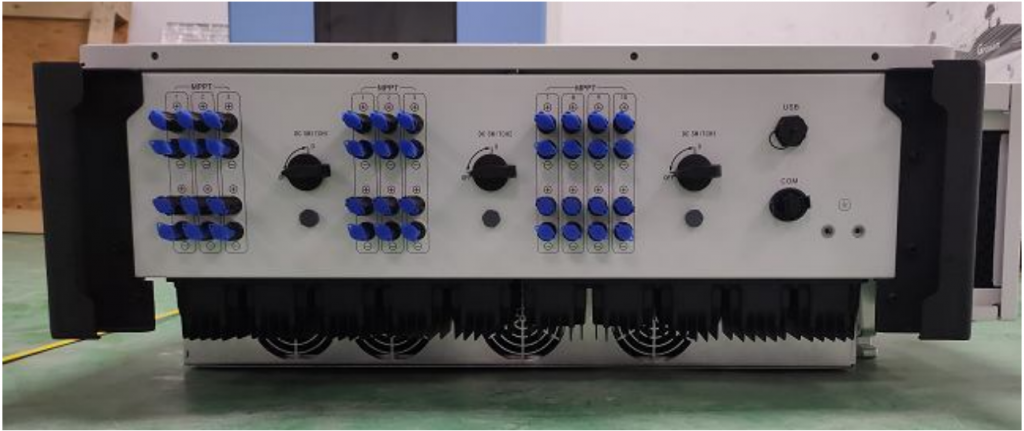

▲ Two string inputs for each MPPT, with string detection function as standard;

▲ DC-LINK capacitor adopts electrolytic + film combination scheme, increasing capacity has a very obvious effect on output characteristics/stability
role, and then to be solved is to reduce the electrolytic ripple current to ensure life;

▲ The inverter adopts three-level I-shaped TOP;

▲ AC output adopts LCL topology;

▲ Nighttime SVG functionality, added as a new feature

▲ PID SPS and AC SPS integration;

▲ The control board follows the main DSP+secondary DSP+CPLD scheme of the MAX 80K series;

▲ The monitoring display adopts STM3 ARM chip, LCD display is optional, USB/RS485 communication

▲ In terms of other functions, it meets the second-level lightning protection and is reserved for optional AFCI;

▲ Support remote programming

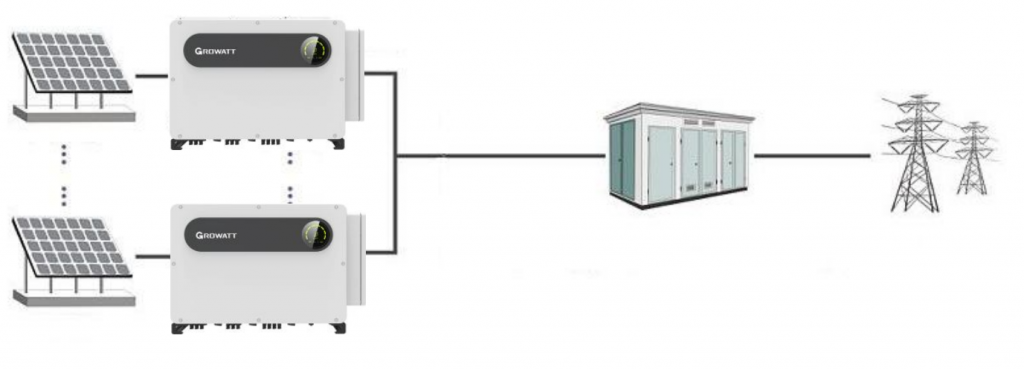

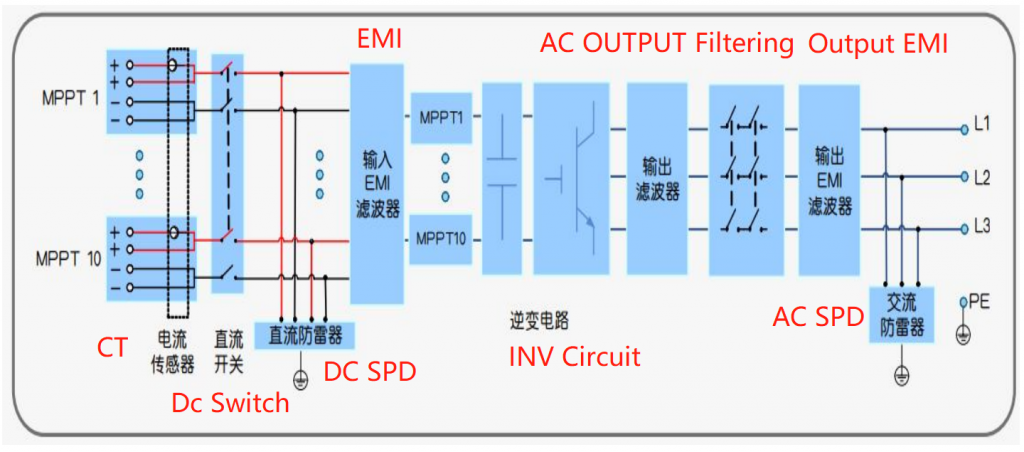

System Principle

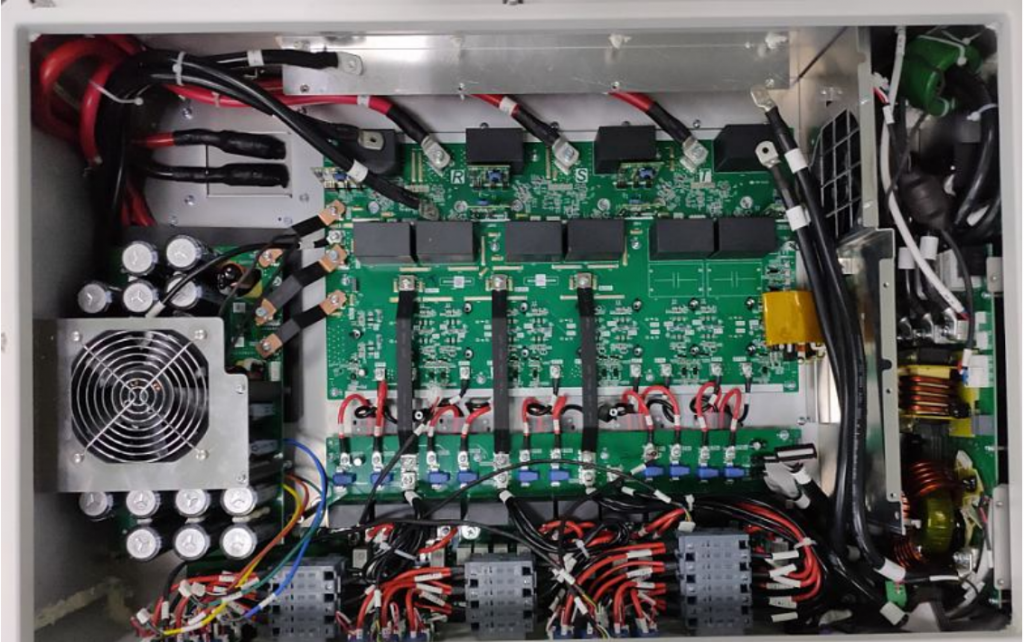

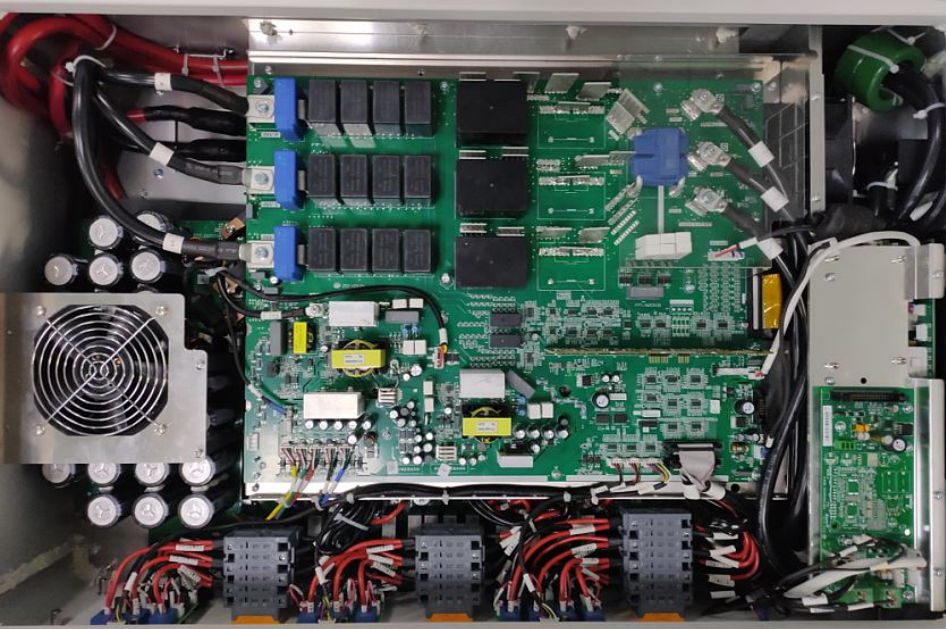

System Layout
Board Introduction

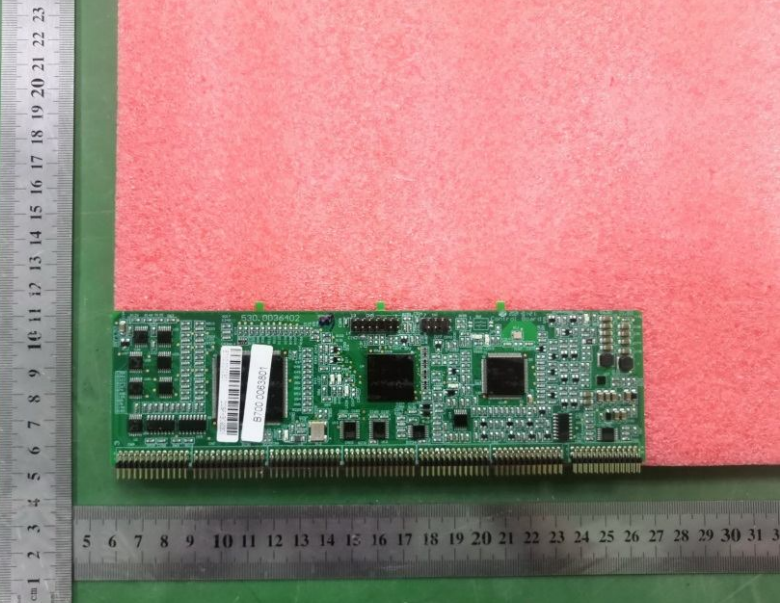

Control Board

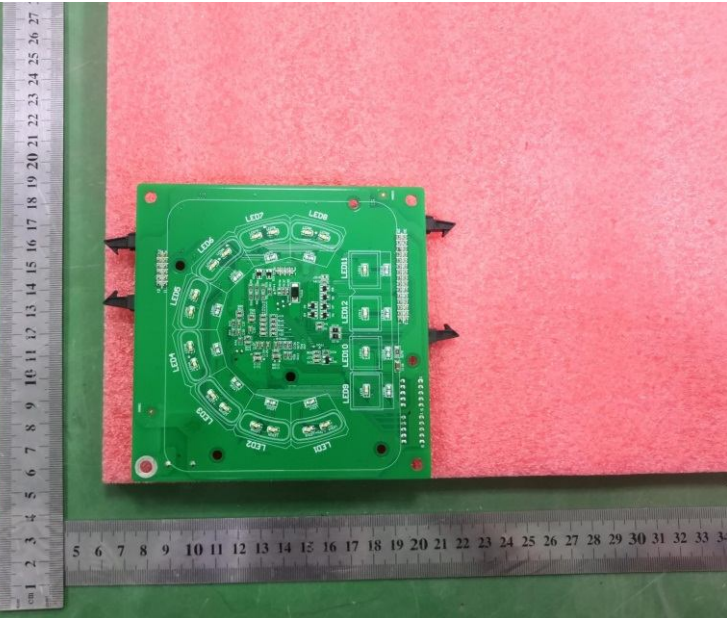

M3 Board

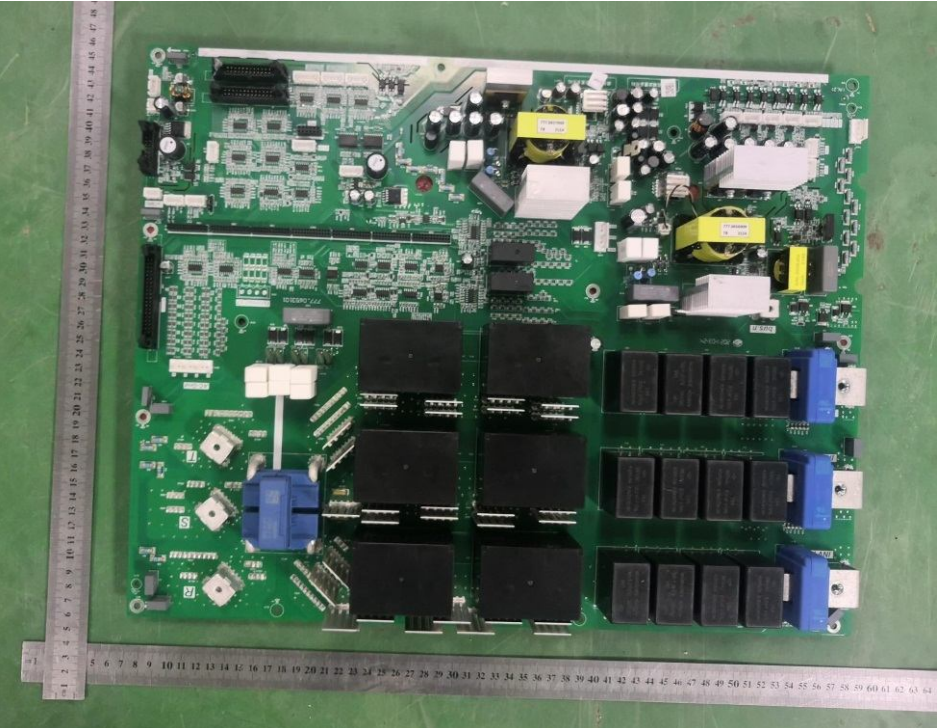

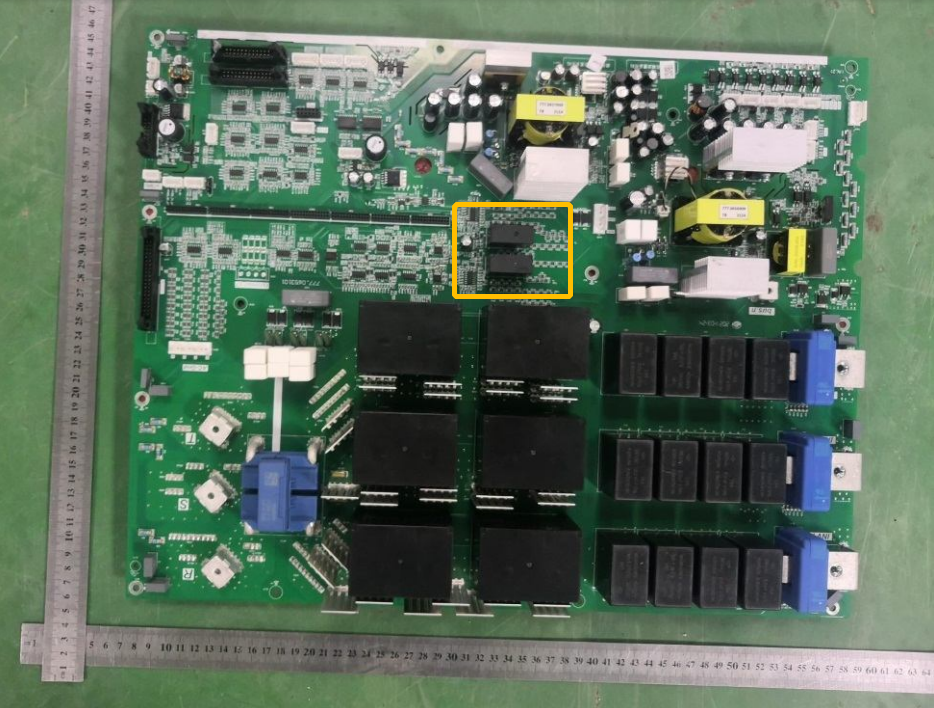

IO Board

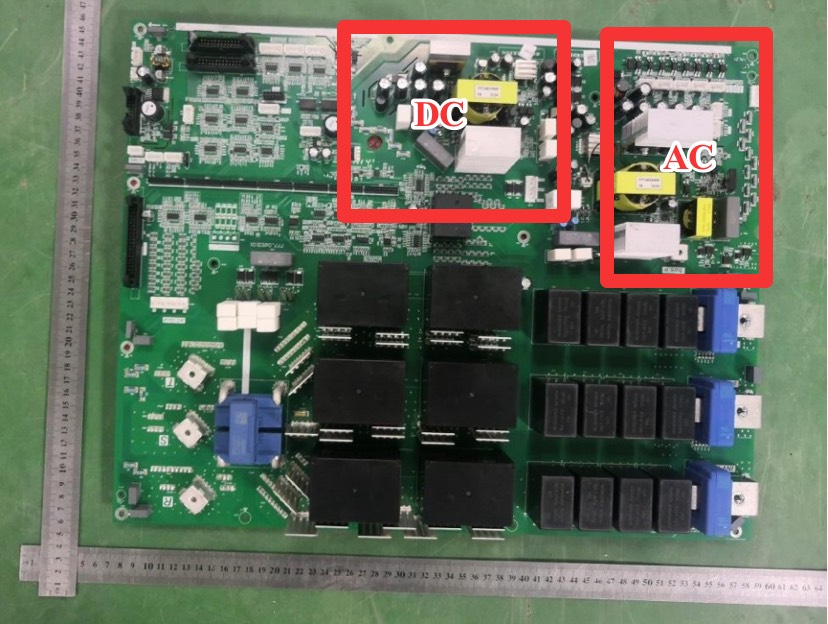

DC and AC SPS on IO Board

The two SPSs are independent, but some of the outputs are merged together, such as ±15V, 24V, etc.

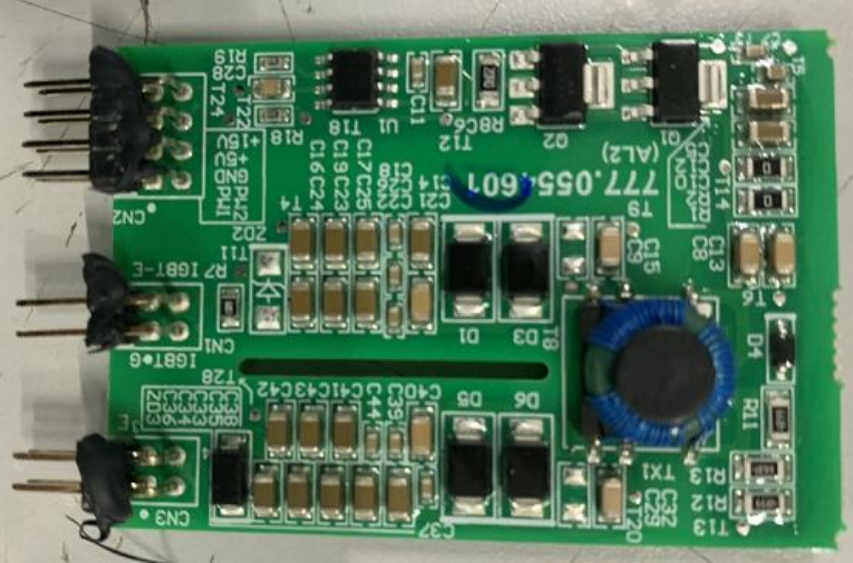

ISO on IO Board

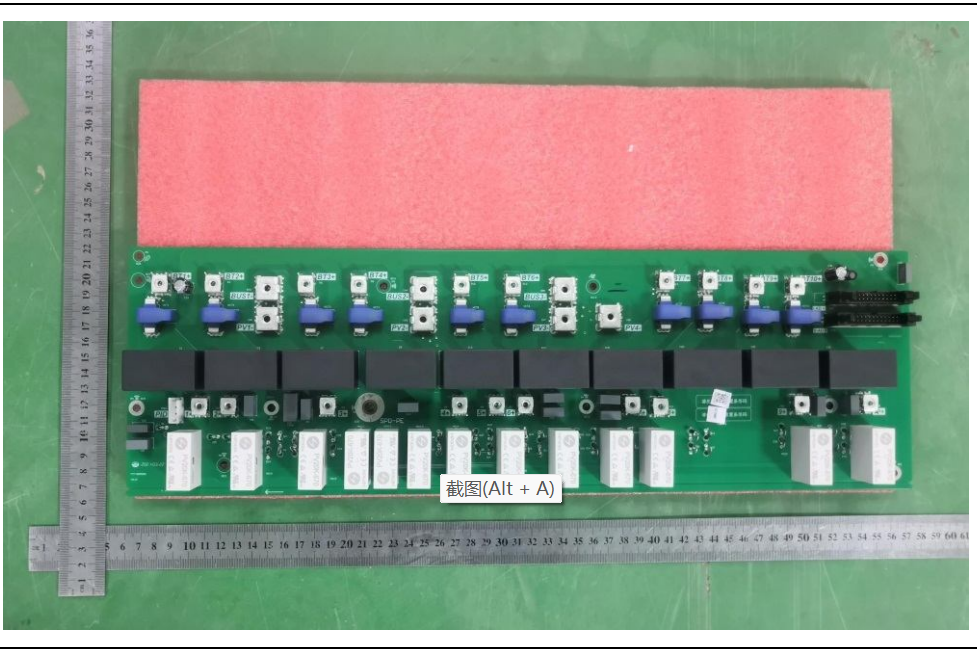

PV Input Board

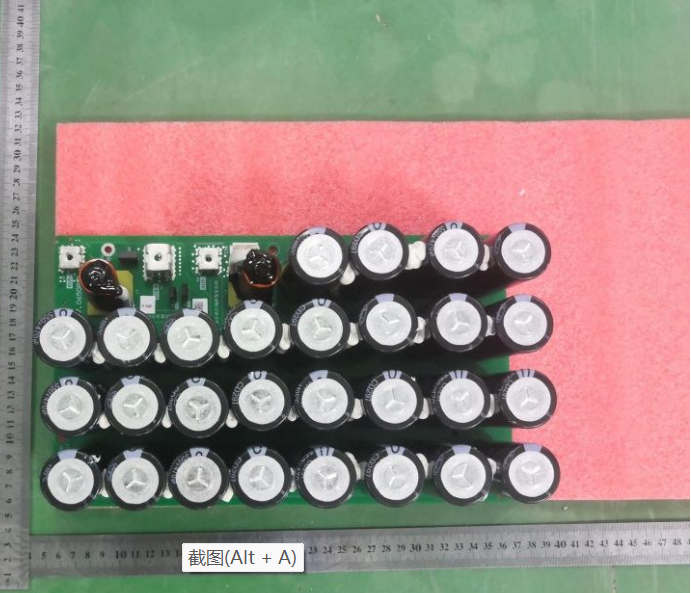

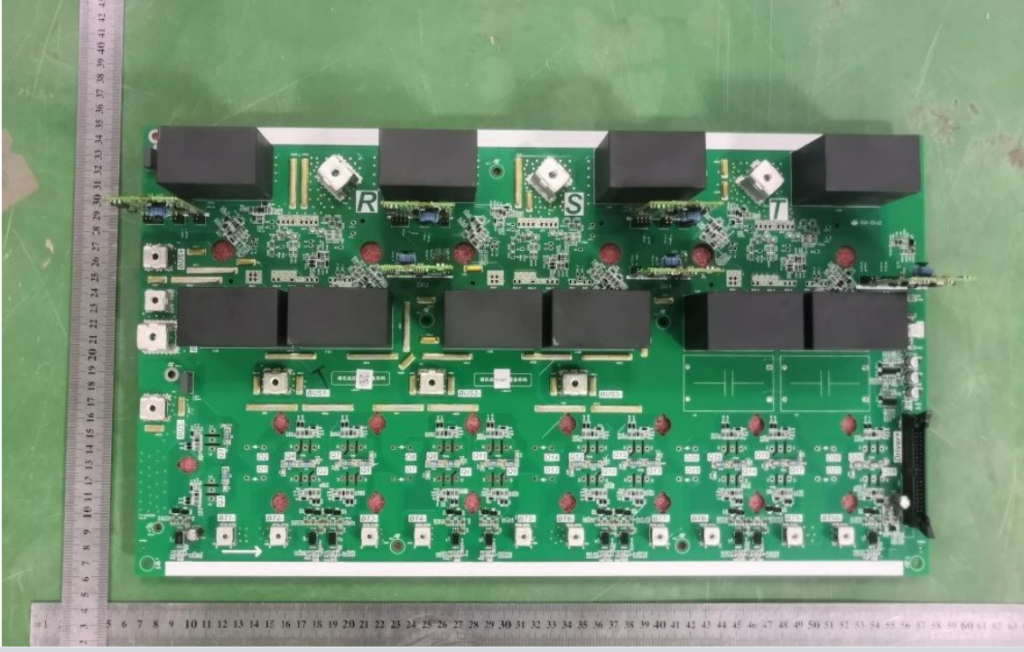

Capacitor Board

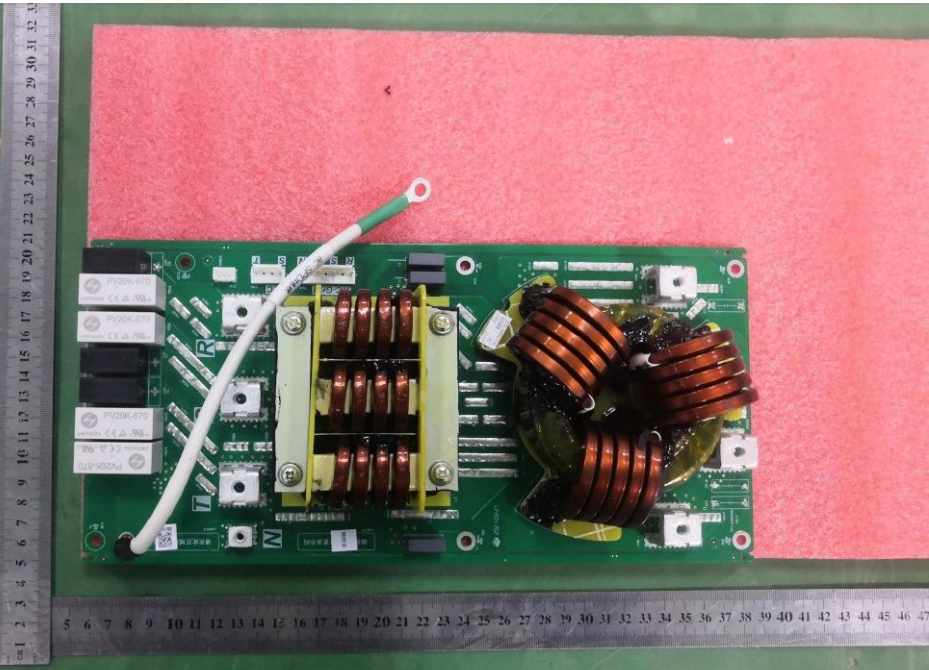

AC Filtering Board

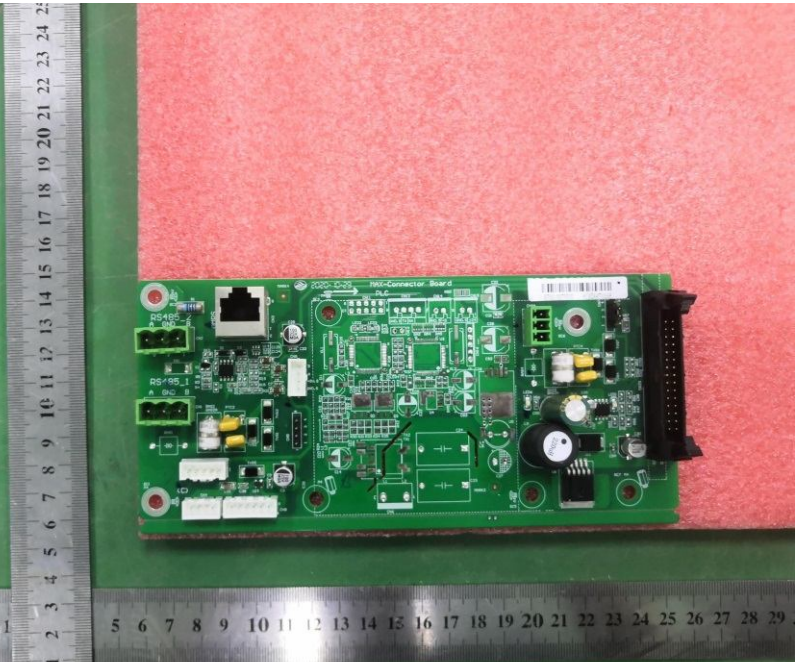

Communication Switch Board

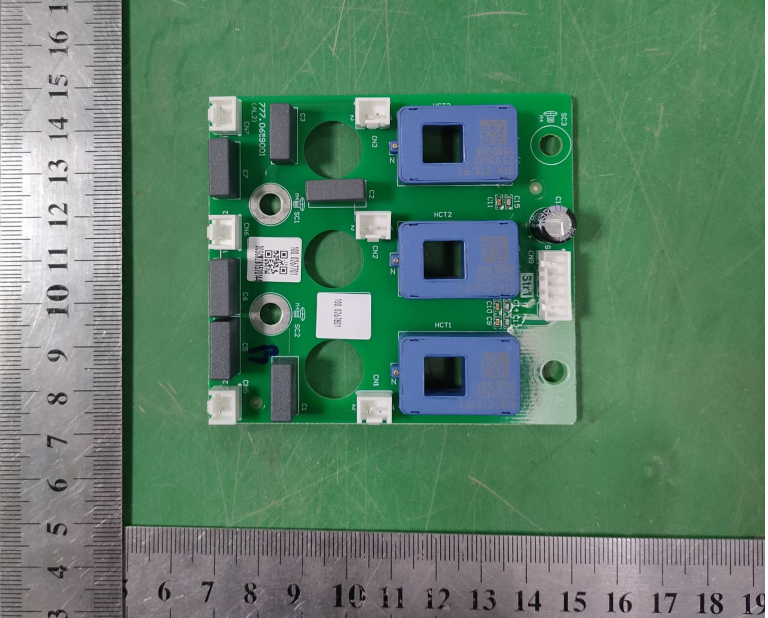

Input EMI board, Input Y capacitor, String current detection

AC and DC Cable Recommendation
Protective grounding

Type: Single-core multiple yellow-green wires;

Copper wire recommended mode: Single-core multiple yellow-green wires50 mm2 ( Copper )

Aluminum wire recommended model Single-core multiple yellow-green wires70 mm2 ( Aluminum )

AC output Cable

Type: single multi-core wire

Copper wire recommended mode:single multi-core wire; 70-240 mm2

Aluminum wire recommended modelsingle multi-core wire; 95mm2-300mm2

PV input line

Copper wire recommended mode: single multi-core wire; 4-6mm2

Communication Cable

RS 485
