SPF 5000ES/sPF 5000TL HVM WPV 17 warning Troubleshooting

SPF 5000ES 17 warning Troubleshooting

17 warning meaning

AC Output Phase loss

Triggering Condition:

1. Host inverter detects Lack of S phase or T phase
2. Lasting time 400ms( approximately 100ms*4);

Cancelling Condition:

Host Inverter has detected that both S and T phase exist.
Lasting time has exceeded 100ms

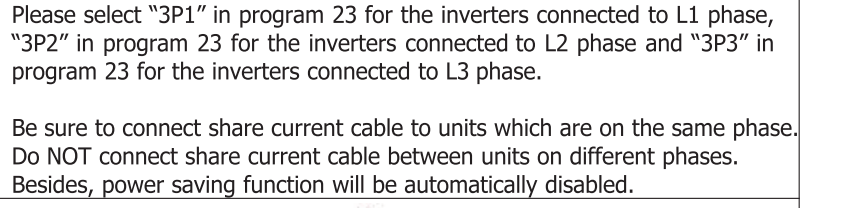

1. Check 23th option on all inverters, and make sure that on each phase, all inverters have seen set as 3P1 or 3P2 or 3P3 on 3 phase seperately
For example, on first phase, there are 2 inverters, 2 inverters on the same phase should be set as “3P1”
How to set value on 23th option
1. Turn off Inverter Switch

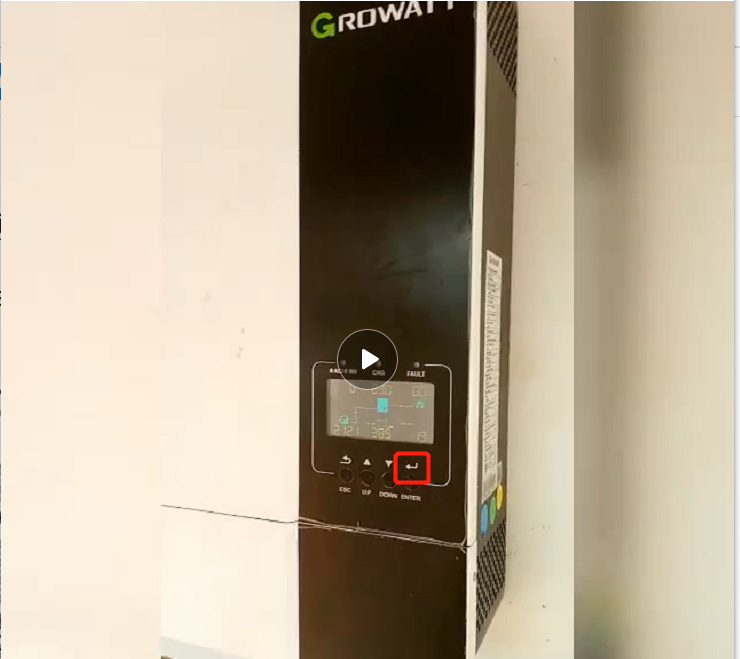

2. press Enter for 3 seconds and enter into settings, turn to 23th option

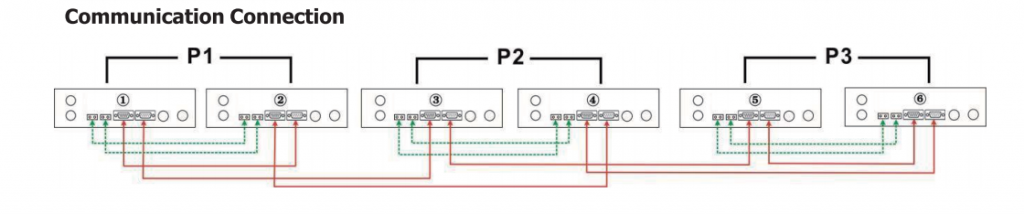

3. If 23th option is correct , 17 warning still exists, please Check parallel cables between inverters
Red wire is parallel cable
Green wire is current sharing cable
4. If you have tried above all, 17 warning still exists, please try to replace parallel cable

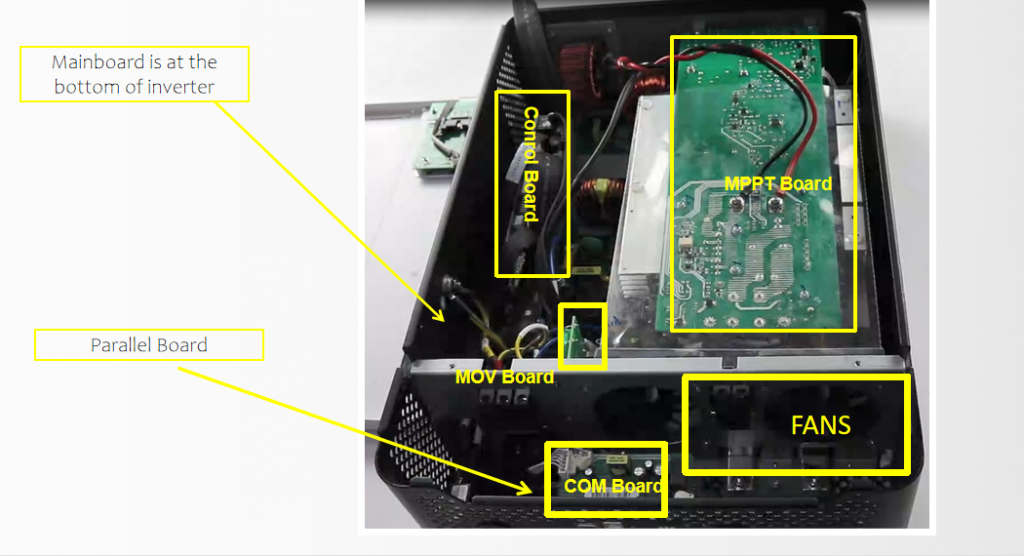

Parallel board is on the bottom
