differentiate boards on MAX series inverters
MAX 50-100K TL3 LV/MV
LV: Line voltage 400V
MV: Line voltage 480 or 500V

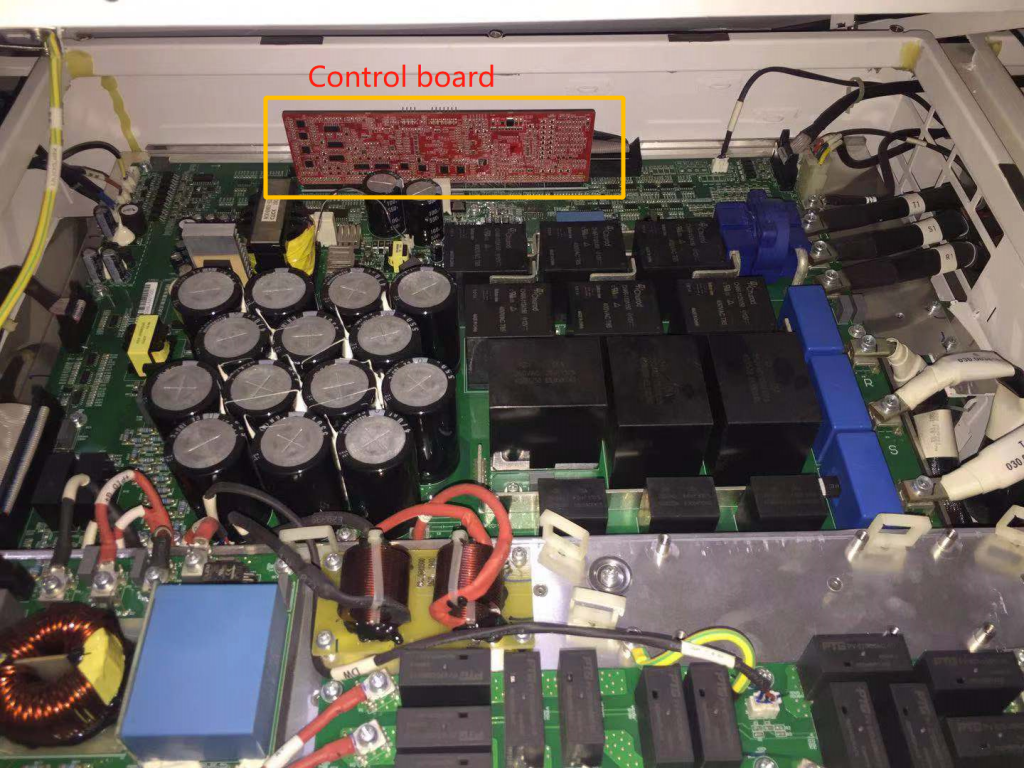

- MAX 50-80K TL3 LV( Whether 6MPPT or 7MPPT string ) has same control board, M3 board, Communication switch board，fans
2. 6MPPT MAX 50K TL3 LV- MAX 80K TL3 LV
All boards firmware are totally same , the unique difference is model number
3. 7MPPT MAX 70K TL3 LV- MAX 80K TL3 LV
All boards firmware are totally same , the unique difference is model number
4. MAX 70K TL3 LV has 7MPPT for overseas market, 6MPPT for domestical market

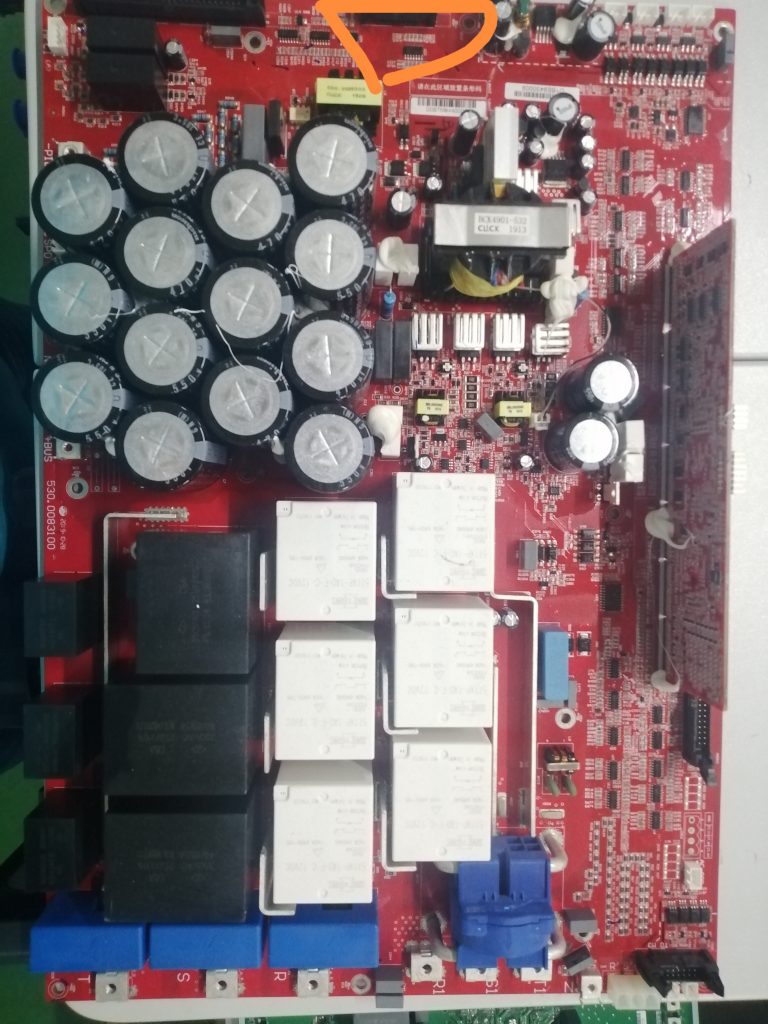

5. How to differentiate IO board of 7MPPT MAX 70K TL3 LV- MAX 80K TL3 LV and 6MPPT MAX 50K TL3 LV- MAX 60K TL3 LV

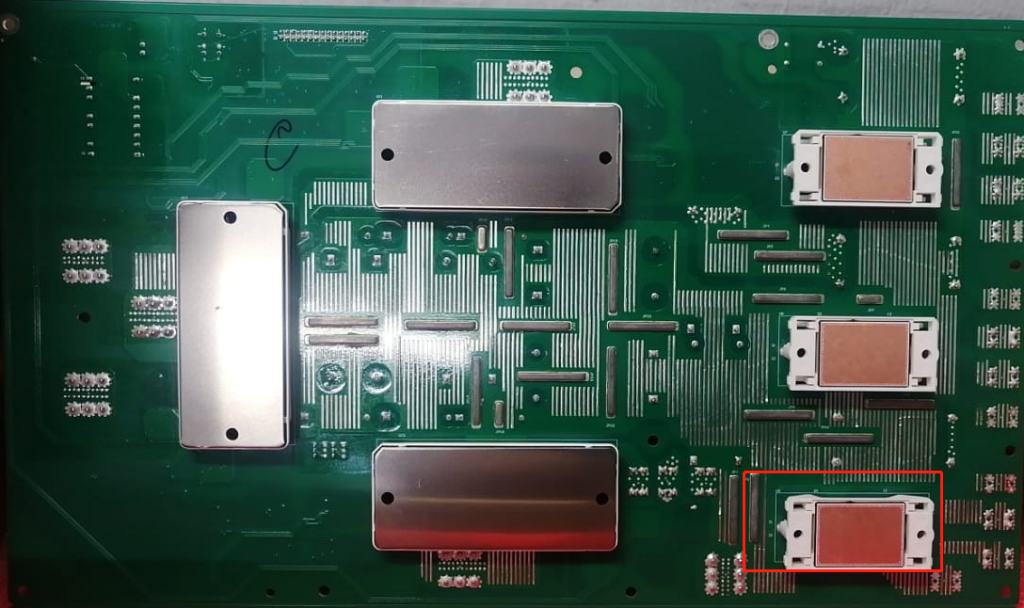

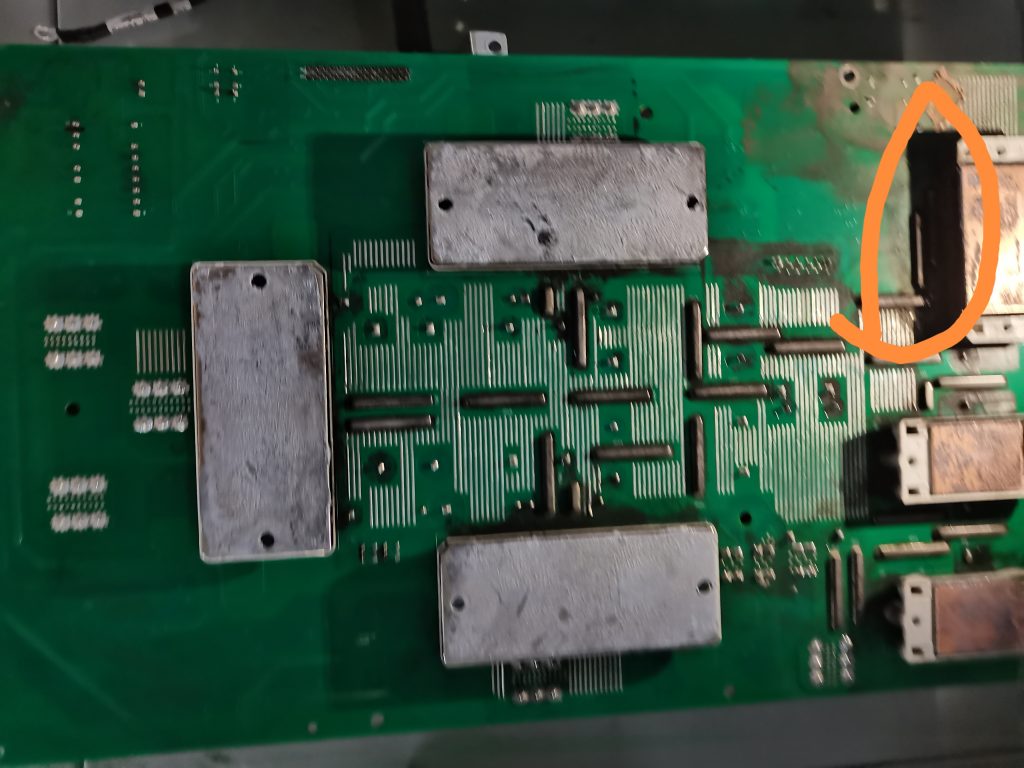

5. How to differentiate mainboard of 7MPPT MAX 70K TL3 LV- MAX 80K TL3 LV and 6MPPT MAX 50K TL3 LV- MAX 60K TL3 LV
