How to analyze off grid inverter issues based on History data
When off grid inverter is something wrong, you can analyze the issue via History data firstly
1. SPF 5000ES/SPF 5000TL HVM WPV
History Data Download

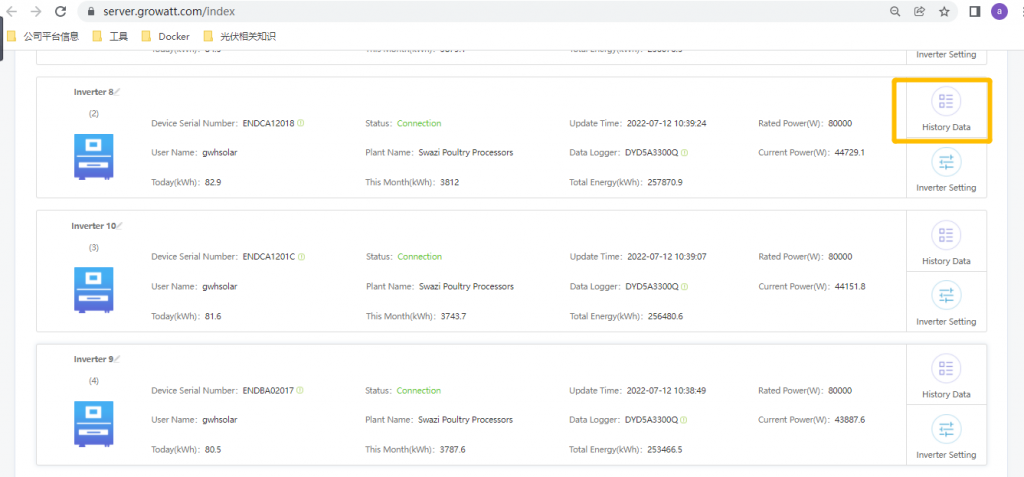

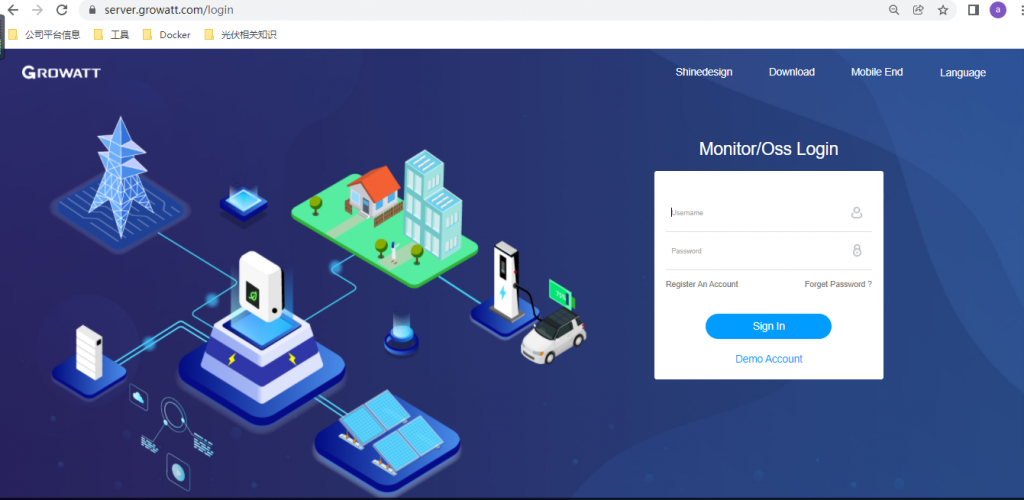

a. Access server.growatt.com
b. Download History Data
c. Download History Data
Example:
d. Meaning of History data

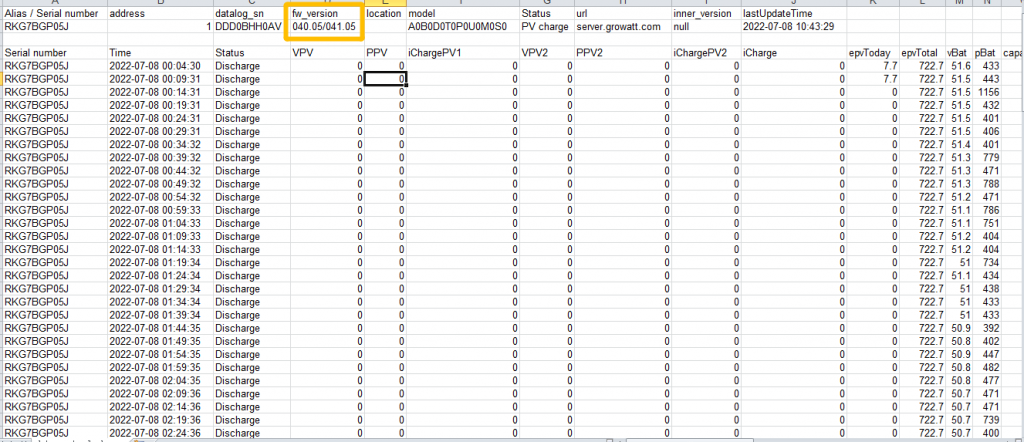

fw_version
Old ES model starts with 40.**, 41.** (Newest firmware is 40.06, 441.06) , Newest ES has changed chip on control board, firware starts with 67.**, 68.**

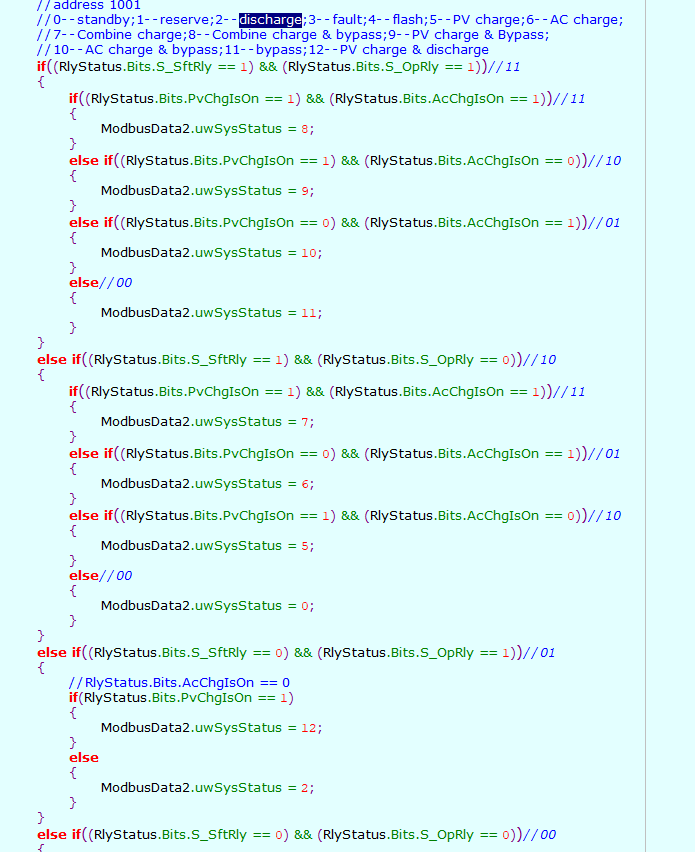

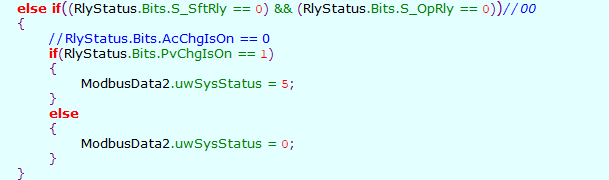

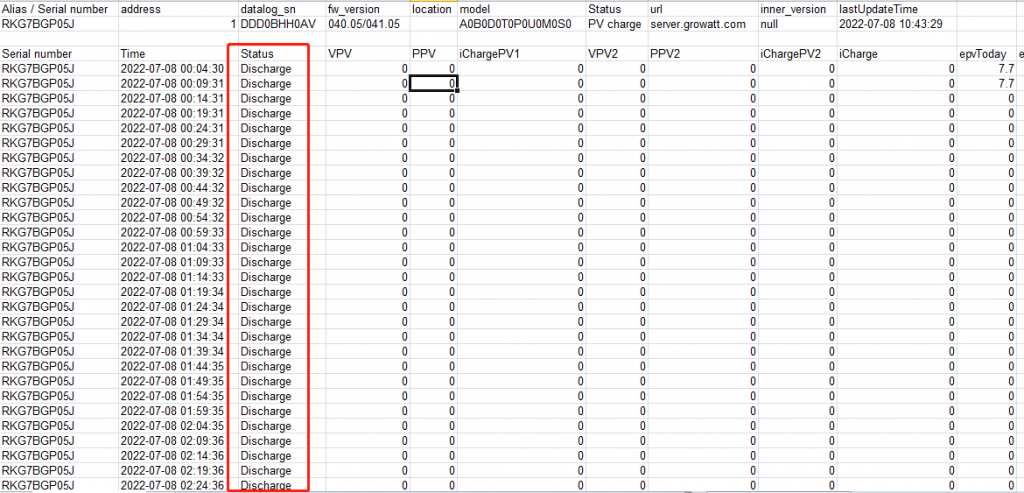

Status
Standby: 0
Reserve: 1
Discharge: 2
Fault: 3
Flash: 4
PV Charge: 5
AC Charge: 6
Combine Charge: 7
Combine charge & Bypass: 8
PV Charge & Bypass: 9
AC Charge & Bypass: 10
Bypass: 11
PV Charge & Discharge: 12

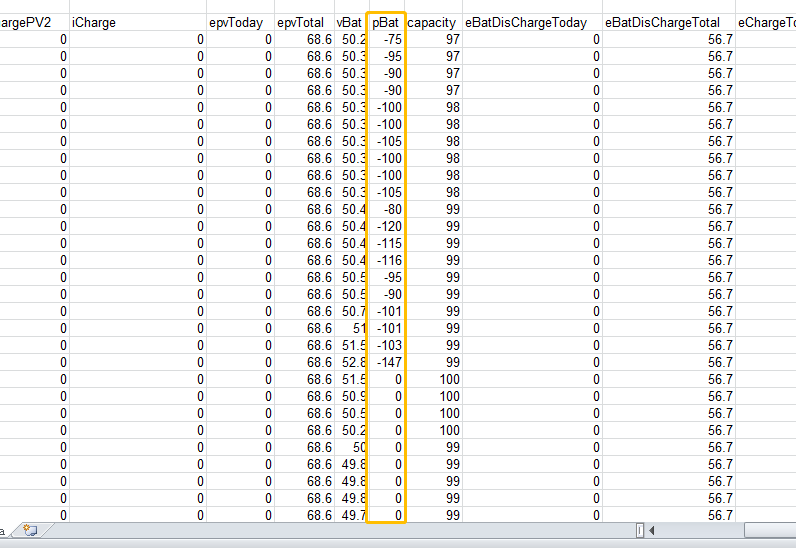

pBat
Negative value means that it is charging , positive value means that it is discharging

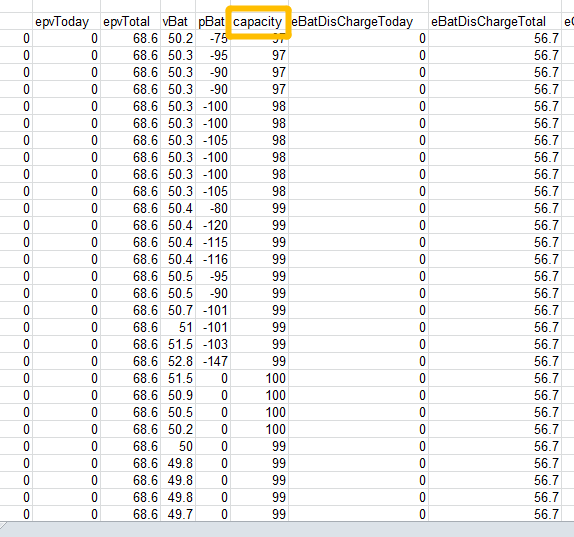

capacity
Capacity is based on battery voltage, so the result is not accurate

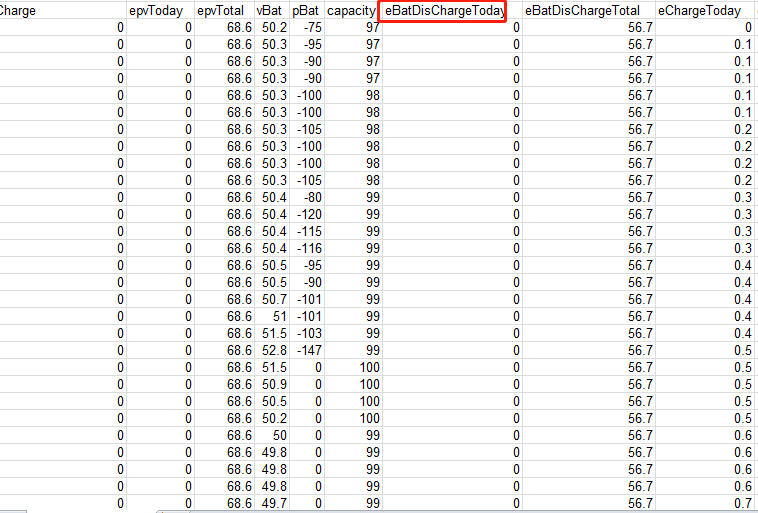

eBatDisChargeToday

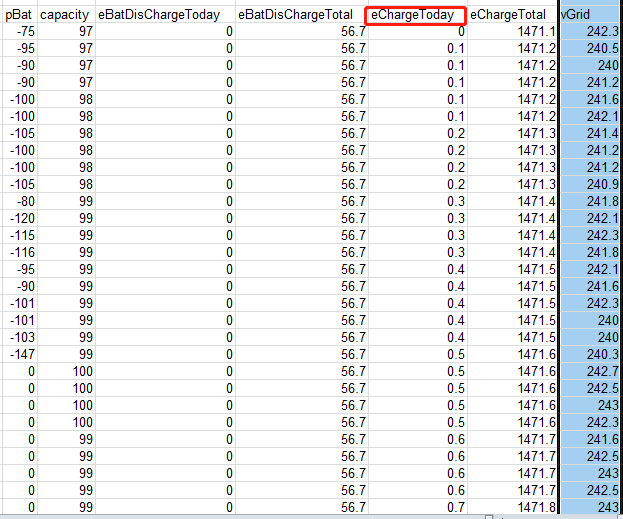

EChargeToday

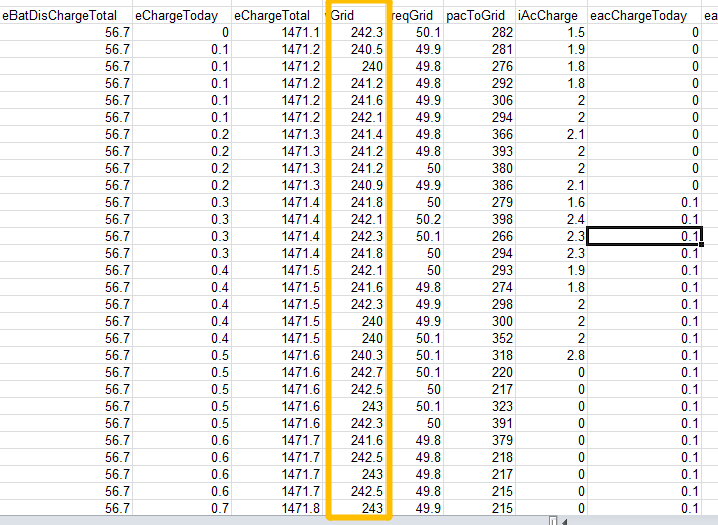

vGrid
Utility input voltage

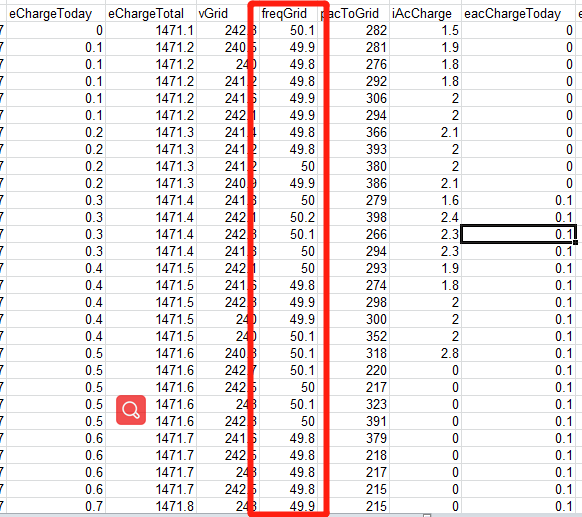

freqGrid
Utility Frequency

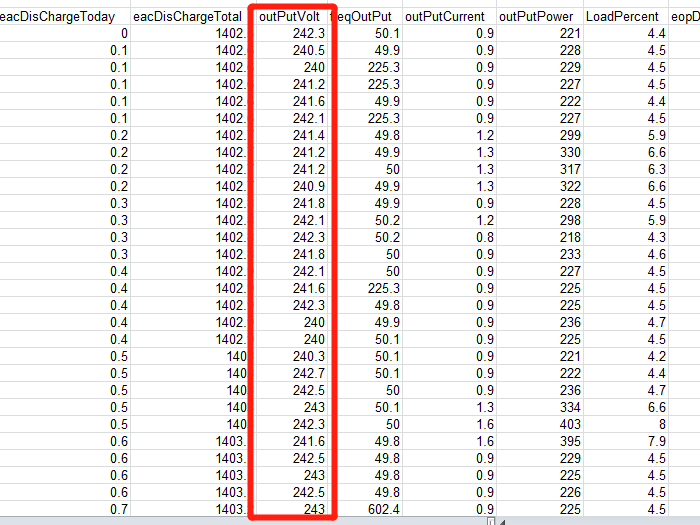

outPutVolt
AC output voltage

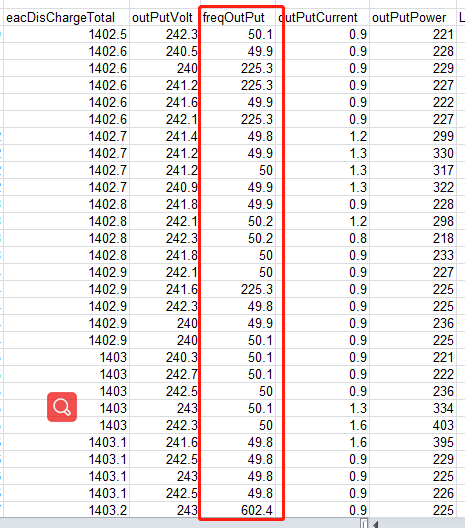

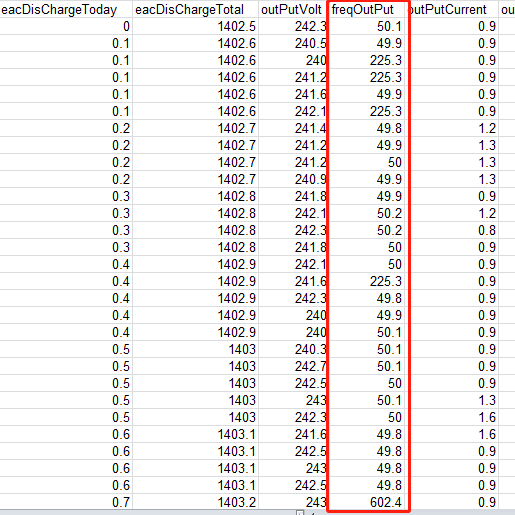

freqoutPut
AC output Frequency

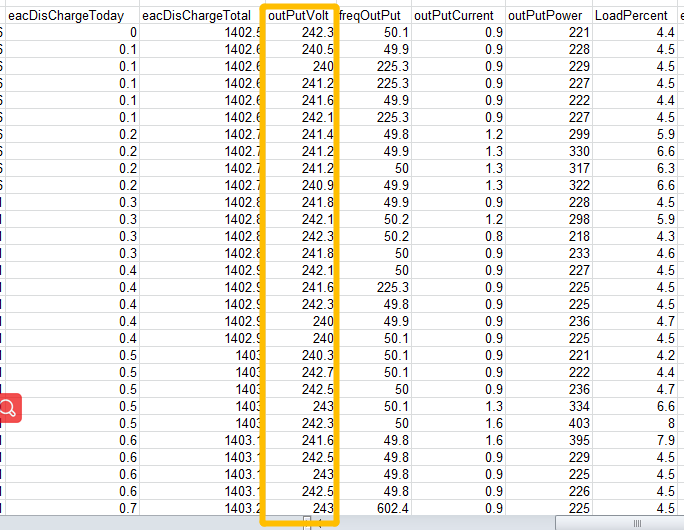

outPutVolt
AC output Voltage
freqOutput
AC output Frequency

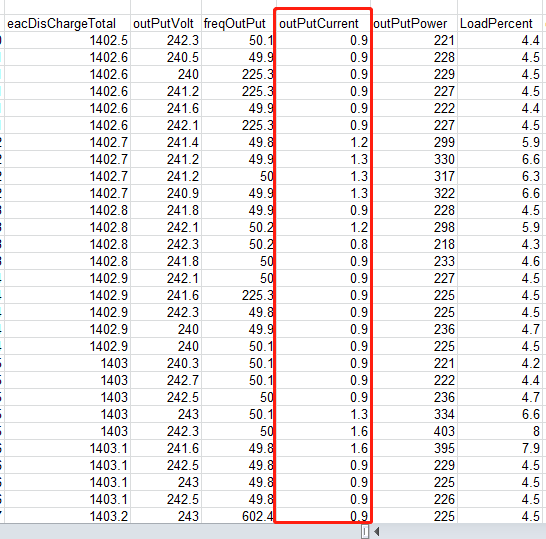

OutputCurrent
AC output current

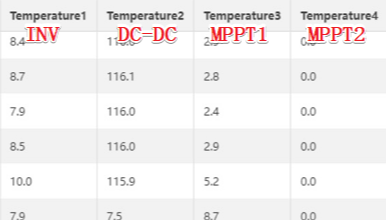

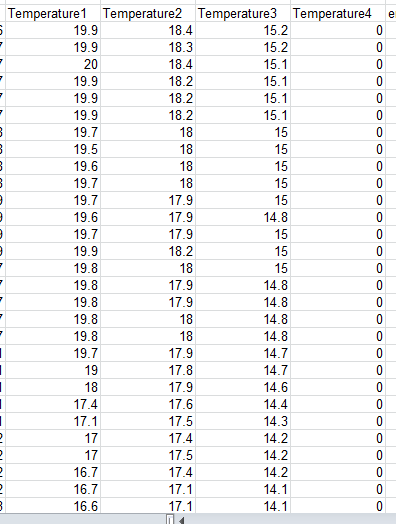

Temperature1, temperature2, Temperature3, Temperature4

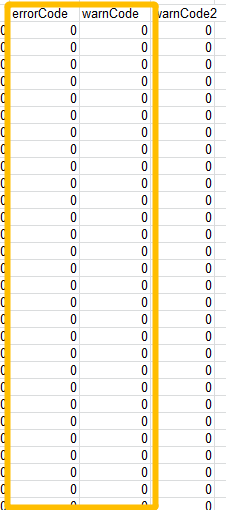

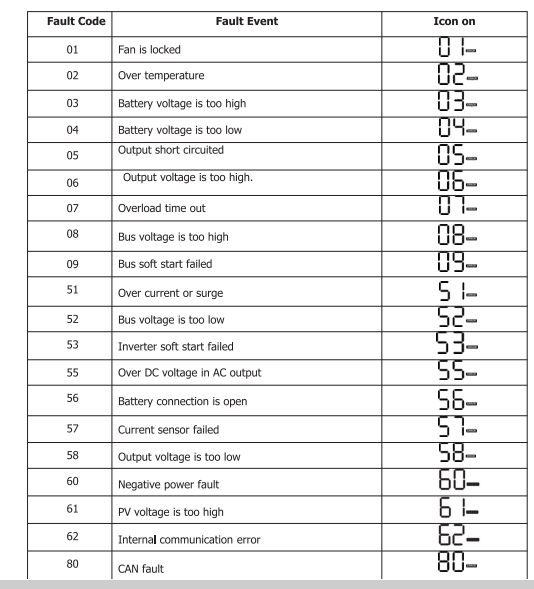

errorCode, warnCode
errorCode

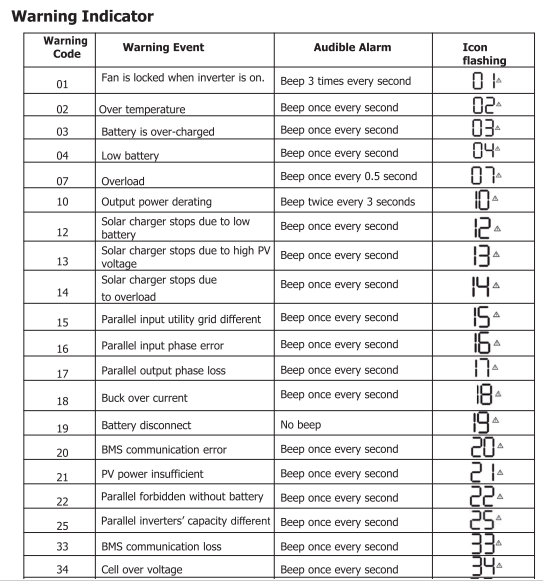

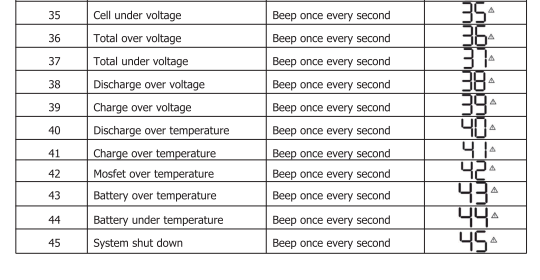

warnCode
