How to modify model number for mID series
The Model number is divided into seven parts: S, B, D, T, P, U, and M. M occupies 16 digits, and the others occupy 8 digits. For details, please refer to the attached table below:
Meaning
S0A B01 D01 T06 P0F U01 M03E8
S:Safety 0-26
B: Function1
D:Display ODM manufacturer
T: Function 2
P:Function3
U:Environment， Machine working environment， AC voltage range， PV ground
M:Power power section， accuracy is 100W
Safety
S00: Null
S01: VDE0126
S02: G99
S03: AS4777_Australia
S04: CEI0_21
S05: cS_SP1663
S06: reserved Xila
S07: N4105 (include VDE4105 and France)
S08: G98
S09: EN50438(Ireland)
S0A: CQC
S0B: EN50438 default(Include Switzerland, Poland, Turkey,Greece,VgridAvg10min>253V protection)
S0C: Hungary–>IEC62717&IEC62116
S0D: Belgium
S0E: MEA
S0F: PEA
S10: AS4777_Newzealand
S11: CQC_Plant
S12: India
S13: EN50438_Demark
S14: EN50438_Sweden
S15: EN50438_Norway
S16: cS_Queensland
S17: France_VFR2014
S18: cS_Korea60Hz
S19: Brazil
S1A: CEI0-16
S1B: Dewa
S1C: cS_Chile
S1D cS_Argentina
S1E: BDEW
S1F： cS_TAIWAN
S20： cS_TR3_2_1_Demark (for PV INV)
S21： CQC2018
S22： cS_TR3_3_1_Demark (for storage INV)
D:Display ODM
PV Inverter 0
Growatt Inverter 1
B: Function1
Bit0-Bit1 Exporting current limitation Enable
0: Disable exportLimit;
1: Enable 485 exportLimit;
2: Enable 232 exportLimit;
3: Enable CT exportLimit
Bit2 APF/SVG Enable
1: Enable APF/SVG
0：Disable APF/SVG
Bit3 AFCI Enable
1: Enable AFCI
0：Disable AFCI
Bit4 Battery type
0：lead acid battery
1：lithium-ion battery
Bit5-Bit7
Reserved
T Function
Bit0 PID Enable
0: Disable
1: Enable
Bit1 PV string Monitoring Enable
0: Disable
1: Enable
Bit2-Bit7
Reserved
p Function
Bit0 ISO Enable
0: Disable
1: Enable
Bit1 DCI Enable
0: Disable
1: Enable
Bit2 GFCI Enable
0: Disable
1: Enable
Bit3 Customer Protection range custom enable
0: Disable
1: Enable
Bit4-Bit7 Reserved
U（Environment）
Bit0-Bit2 Grid Volt
0：230V
1：277V
2：288V
Bit3 PV Negative is connected to ground Enable
0:Disable
1:Enable
Bit4-Bit7 Reserved
M:Power power section， accuracy is 100W
2.5 Power segment

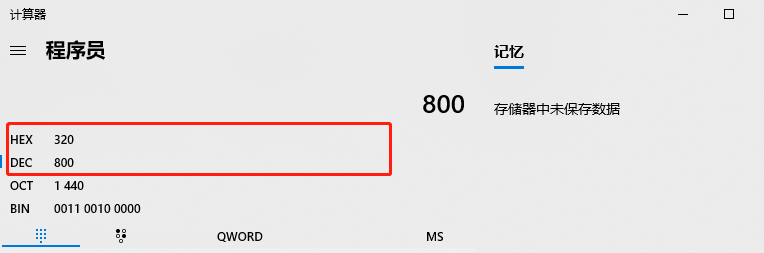

Accuracy is 100W ,like 80K is 0x320 , that’s 0x0320
How to modify model number
Method1:
Modify model number via server.growatt.com
Procedures

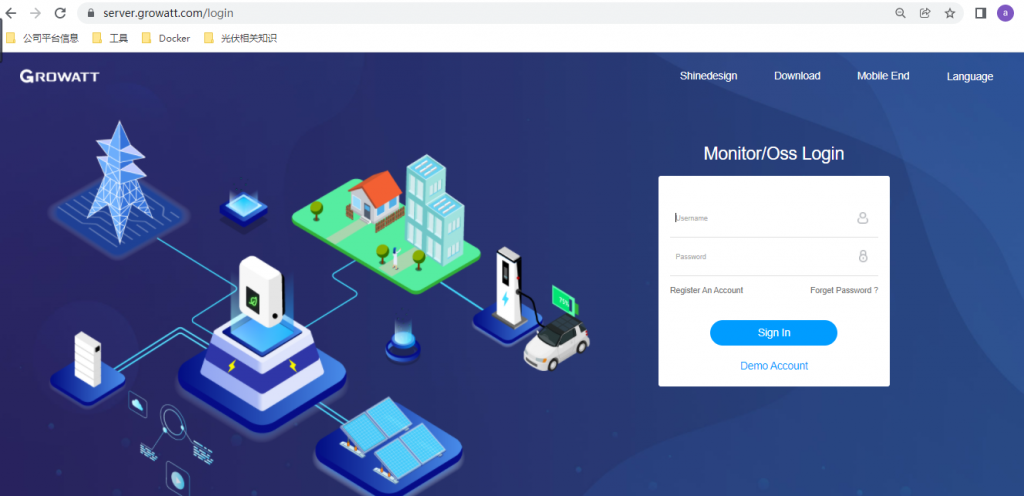

1. Access server.growatt.com

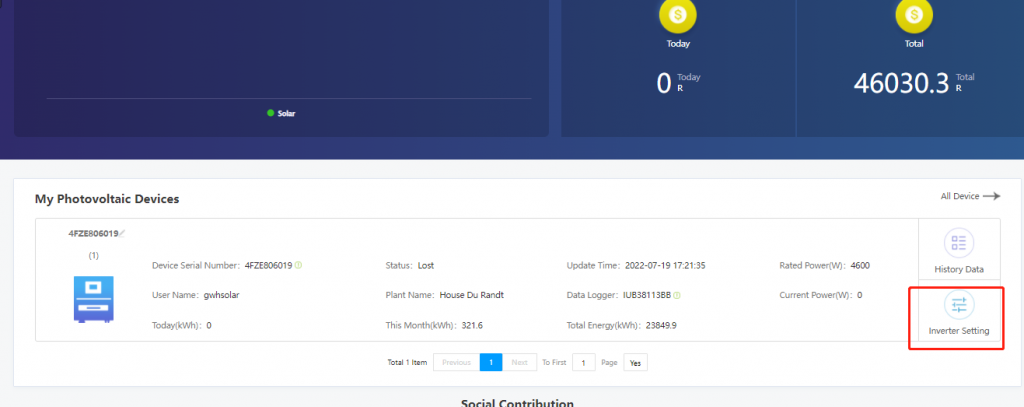

2. Select “Inverter setting”
3. Caclulate value you need to modify

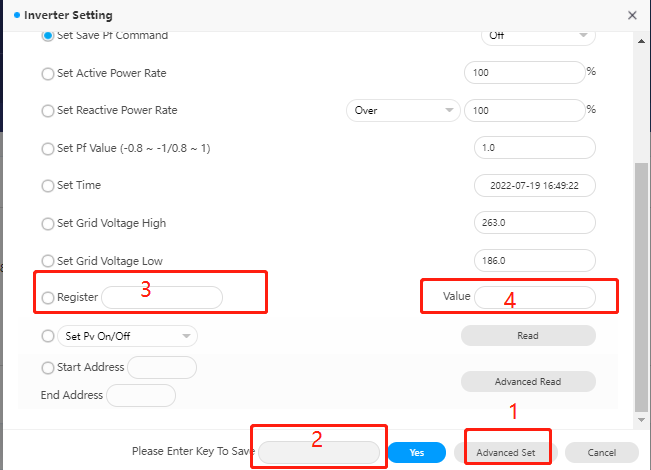

4. Modify register address value
procedure 2:
password: growatt+today’s date like growatt20220720

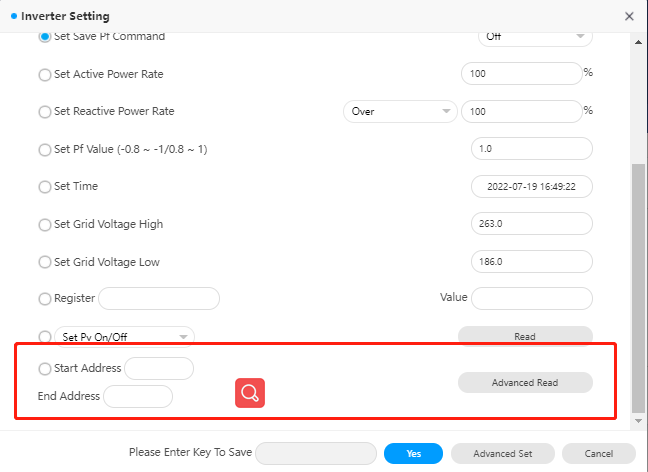

Before you modify the value, you had better read the corresponding register address
Troubleshooting:

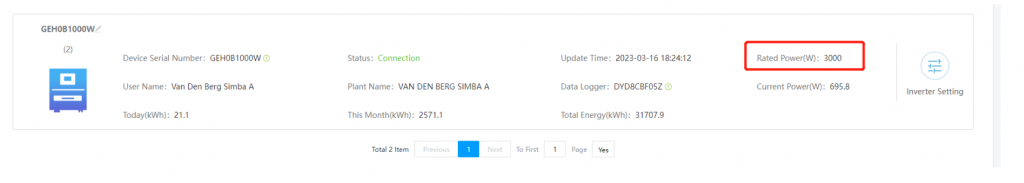

If you find that after you set correct value on these register address, but there is no change on model number. You can make inverter stop running. then reset it. Definitely ,it can be modified.
For example,

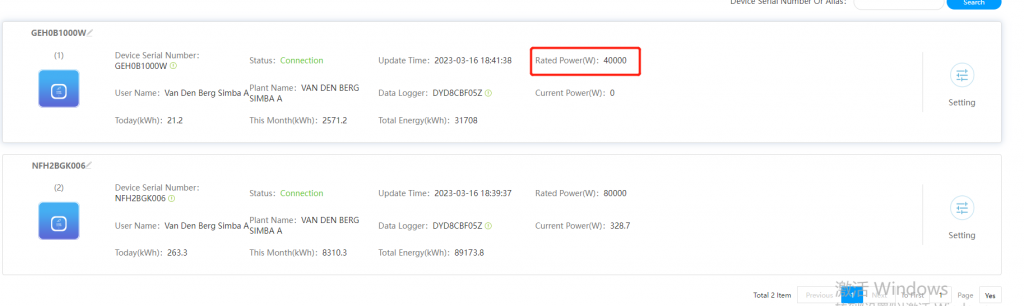

Modify power segment as 40000, you need to set 400 on 121 register address

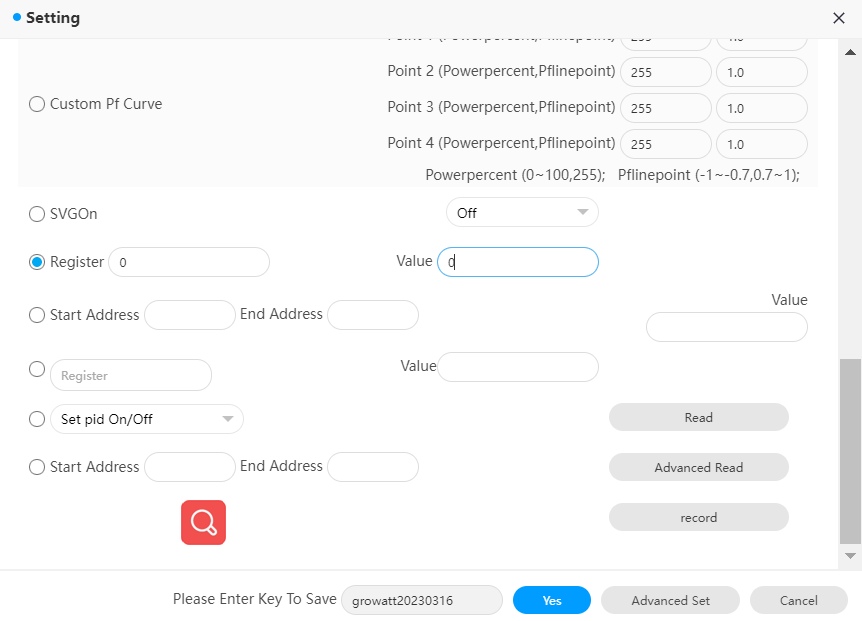

Firstly, you can set register 0 as 0
Register 0 is used to switch on inverter or switch off inverter , 0 is off, 1 is on.
Secondly, you can contine setting correct value on 121 register address.
