Eastron meter introduction
Eastron Setting Password: 1000
1. SDM230 Series
2. SDM630_Series
Meter Display Meaning

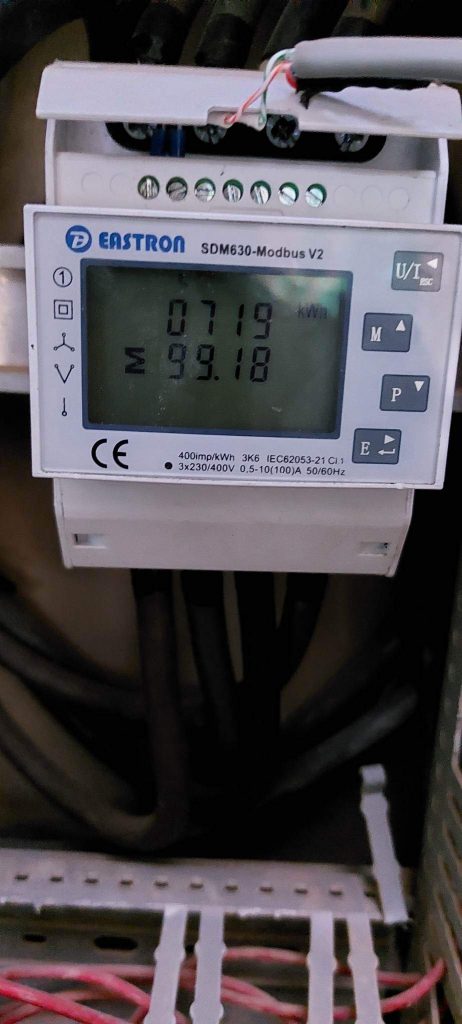

Total Energy
As screen space is limited, so data will display on 2 rows. So the value below should be 71999.18 kWh
![](https://www.amosplanet.org/wp-content/uploads/2023/02/ee902e0846e16c29b2d7b11f09e2c79-462x1024.jpg)

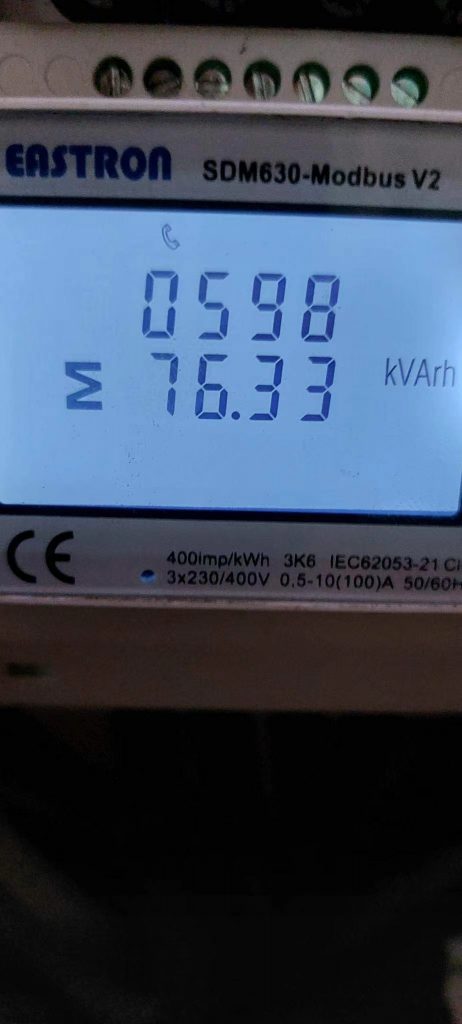

Total Reactive Energy
As screen space is limited, so data will display on 2 rows. The value below should be 59876.33 kVArh
![](https://www.amosplanet.org/wp-content/uploads/2023/02/5beaf291f94a364623815c5be451e0f-1-462x1024.jpg)

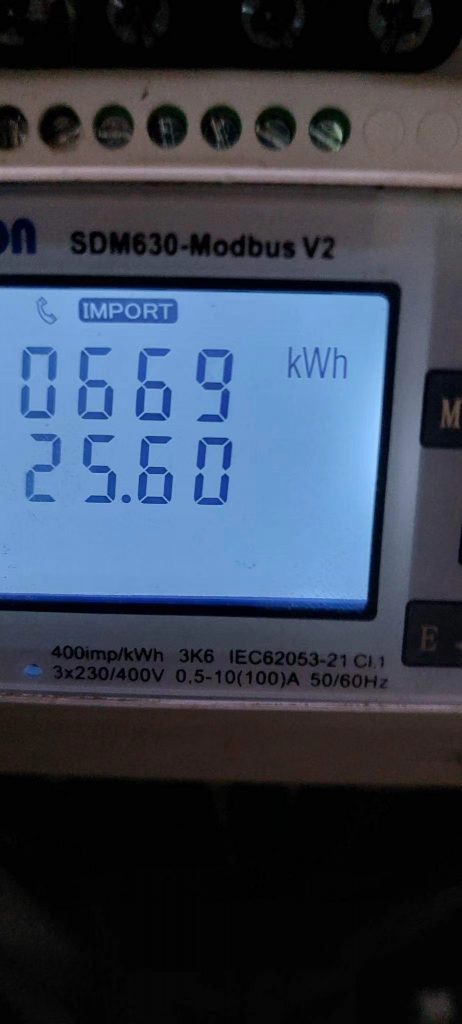

Import Total Energy
As screen space is limited, so data will display on 2 rows. The value below should be 66925.6 kWh
![](https://www.amosplanet.org/wp-content/uploads/2023/02/8e39f700b7347d7b1453ebb117ebae5-462x1024.jpg)

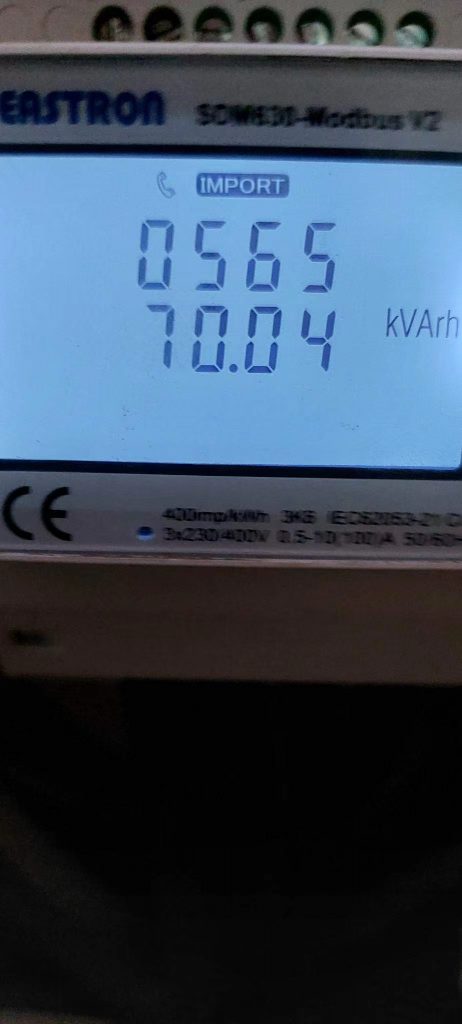

Import Total Reactive Energy
![](https://www.amosplanet.org/wp-content/uploads/2023/02/077501346ad5ffb54ae13e464987020-462x1024.jpg)

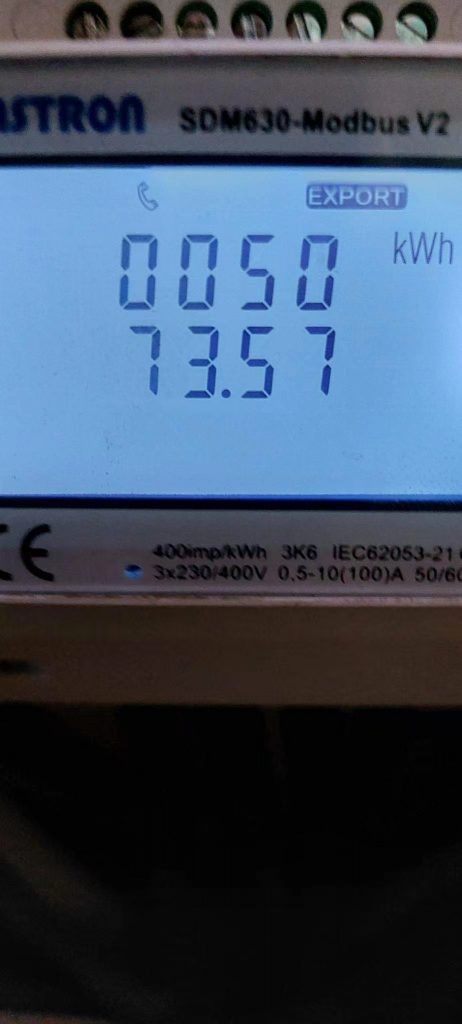

Export Total Energy
As screen space is limited, so data will display on 2 rows. The value below should be 5073.57 kWh
![](https://www.amosplanet.org/wp-content/uploads/2023/02/13226994c51d23db0fdea84442d85c3-462x1024.jpg)

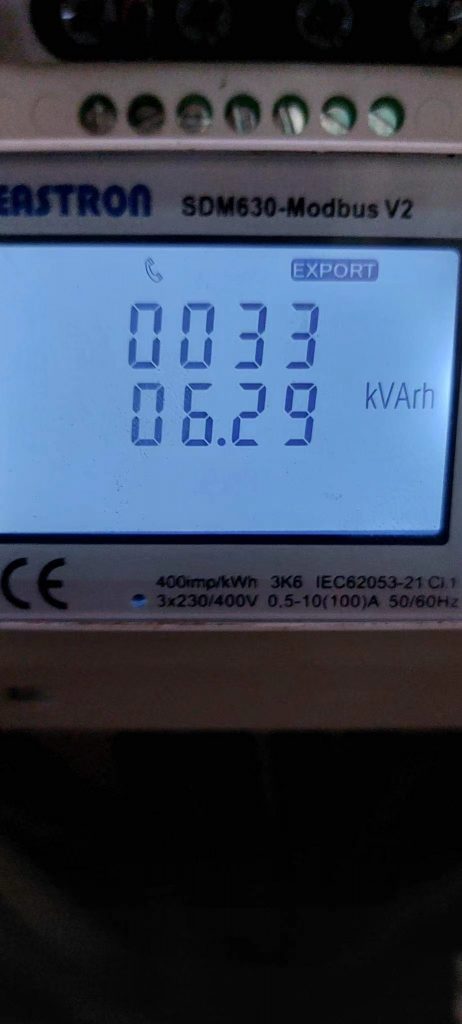

Export Total Reactive Energy
As screen space is limited, so data will display on 2 rows. The value below should be 3306.29 kVArh
![](https://www.amosplanet.org/wp-content/uploads/2023/02/4105c4a312edd015cb576b3c4640159-462x1024.jpg)

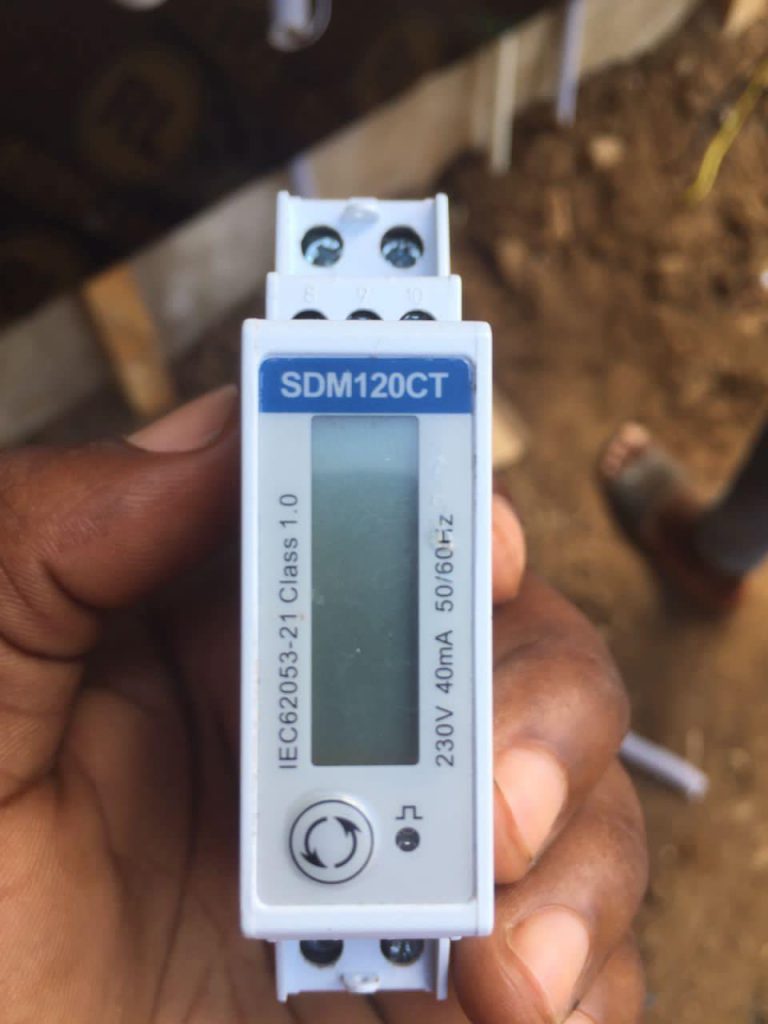

3. SDM120CT
![](https://www.amosplanet.org/wp-content/uploads/2023/02/微信图片_20211223141133-768x1024.jpg)

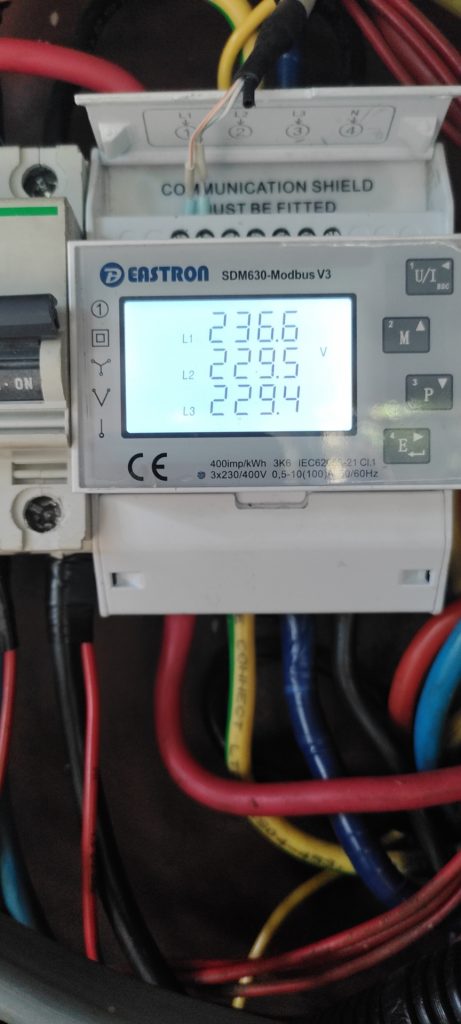

3. SDM630-modbus V3
![](https://www.amosplanet.org/wp-content/uploads/2023/02/594b54748ef3652d582cc577b992e16-461x1024.jpg)
