Shinemaster baudrate has been set wrong, and cause abnormal communnication
Phenomenon
Data aquisition via USB-485 TOOL, These data are abnormal and chaotic.
[2023-10-23 15:30:34.910]# RECV HEX>
18 00 1E 00 00 9E 86 00 06 00 60 06 0F
[2023-10-23 15:30:35.565]# SEND ASCII>
http://www.cmsoft.cn
[2023-10-23 15:30:36.690]# RECV HEX>
1E 00 1E 00 00 9E 86 00 06 80 66 FF 00
[2023-10-23 15:30:38.758]# RECV HEX>
60 80 1E 00 00 9E 86 00 06 00 60 FF 7E 33
[2023-10-23 15:30:40.822]# RECV HEX>
66 00 1E 00 00 9E 86 00 06 80 66 FF 78 C0
[2023-10-23 15:30:42.890]# RECV HEX>
06 00 1E 00 00 9E 86 00 06 80 60 FF 18 00
[2023-10-23 15:30:44.947]# RECV HEX>
18 00 1E 80 00 9E 86 00 06 00 60 FF 06 0F
[2023-10-23 15:30:47.011]# RECV HEX>
1E 00 1E 00 00 9E 86 00 06 00 66 FF 00
[2023-10-23 15:30:49.099]# RECV HEX>
60 00 1E 80 00 9E 86 00 06 00 60 FF 7E 33
[2023-10-23 15:30:51.163]# RECV HEX>
66 00 1E 00 00 9E 86 00 06 00 66 FF 78 C0
[2023-10-23 15:30:53.214]# RECV HEX>
06 00 1E 00 00 9E 86 00 06 00 60 FF 18 00
[2023-10-23 15:30:55.272]# RECV HEX>
18 00 1E 00 00 9E 86 00 06 00 60 FF 06 87
[2023-10-23 15:30:57.321]# RECV HEX>
1E 80 1E 00 00 9E 86 00 06 00 66 00
[2023-10-23 15:30:59.371]# RECV HEX>
60 00 1E 00 00 9E 86 00 06 00 60 FF 7E B3
[2023-10-23 15:31:01.417]# RECV HEX>
66 00 1E 80 00 9E 86 00 06 00 66 FF 78 C0
[2023-10-23 15:31:03.489]# RECV HEX>
06 00 1E 00 00 9E 86 00 06 00 60 FF 18 00
[2023-10-23 15:31:05.549]# RECV HEX>
18 00 1E 00 00 9E 86 00 06 00 60 FF 06 0F
[2023-10-23 15:31:07.592]# RECV HEX>
1E 00 1E 00 00 9E 86 00 06 00 66 FF 00
[2023-10-23 15:31:09.660]# RECV HEX>
60 00 1E 80 00 9E 86 00 06 00 60 FF 7E 33
[2023-10-23 15:31:11.713]# RECV HEX>
66 00 1E 00 00 9E 86 00 06 00 66 FF 78 C0
[2023-10-23 15:31:13.794]# RECV HEX>
06 00 1E 00 00 9E 86 00 06 00 60 FF 18 00
[2023-10-23 15:31:15.858]# RECV HEX>
18 00 1E 80 00 9E 86 00 06 00 60 FF 06 0F
[2023-10-23 15:31:17.930]# RECV HEX>
1E 00 1E 80 00 9E 86 00 06 80 66 FF 00
[2023-10-23 15:31:19.983]# RECV HEX>
60 00 1E 80 00 9E 86 00 06 80 60 FF 7E 33
[2023-10-23 15:31:22.050]# RECV HEX>
66 80 1E 80 00 9E 86 00 06 00 66 FF 78 C0
[2023-10-23 15:31:24.127]# RECV HEX>
06 00 1E 00 00 9E 86 00 06 00 60 FF 18 00
[2023-10-23 15:31:26.173]# RECV HEX>
18 80 1E 00 00 9E 86 00 06 80 60 FF 06 0F
[2023-10-23 15:31:28.240]# RECV HEX>
1E 00 1E 00 00 9E 86 00 06 00 66 FF 00
[2023-10-23 15:31:30.277]# RECV HEX>
60 00 1E 00 00 9E 86 00 06 80 60 FF 7E 33
[2023-10-23 15:31:32.323]# RECV HEX>
66 00 1E 80 00 9E 86 00 06 80 66 FF 78 C0
[2023-10-23 15:31:34.370]# RECV HEX>
06 00 1E 00 00 9E 86 00 06 00 60 FF 18 80
[2023-10-23 15:31:36.435]# RECV HEX>
18 00 1E 80 00 9E 86 00 06 00 60 06 0F
[2023-10-23 15:31:38.487]# RECV HEX>
1E 00 1E 80 00 9E 86 00 06 00 66 FF 00
[2023-10-23 15:31:40.545]# RECV HEX>
60 80 1E 00 00 9E 86 00 06 80 60 FF 7E 33
[2023-10-23 15:31:42.604]# RECV HEX>
66 00 1E 00 00 9E 86 00 06 00 66 FF 78 E0
[2023-10-23 15:31:44.687]# RECV HEX>
06 00 1E 80 00 9E 86 00 06 80 60 FF 18 00
[2023-10-23 15:31:46.753]# RECV HEX>
18 00 1E 80 00 9E 86 00 06 00 60 FF 06 0F
[2023-10-23 15:31:48.813]# RECV HEX>
1E 00 1E 80 00 9E 86 00 06 00 66 FF 00
[2023-10-23 15:31:50.872]# RECV HEX>
60 00 1E 00 00 9E 86 00 06 80 60 FF 7E 33
[2023-10-23 15:31:52.935]# RECV HEX>
66 00 1E 00 00 9E 86 00 06 00 66 FF 78 E0
[2023-10-23 15:31:55.015]# RECV HEX>
06 80 1E 00 00 9E 86 00 06 00 60 FF 18 00
[2023-10-23 15:31:57.069]# RECV HEX>
18 00 1E 80 00 9E 86 00 06 00 60 FF 06 0F
[2023-10-23 15:31:59.127]# RECV HEX>
1E 00 1E 00 00 9E 86 00 06 00 66 FF 00
[2023-10-23 15:32:01.170]# RECV HEX>
60 80 1E 00 00 9E 86 00 06 00 60 7E 33
[2023-10-23 15:32:03.222]# RECV HEX>
66 00 1E 00 00 9E 86 00 06 00 66 FF 78 E0
[2023-10-23 15:32:05.274]# RECV HEX>
06 00 1E 80 00 9E 86 00 06 00 60 FF 18 00
[2023-10-23 15:32:07.325]# RECV HEX>
18 00 1E 00 00 9E 86 00 06 00 60 FF 06 87
[2023-10-23 15:32:09.371]# RECV HEX>
1E 00 1E 00 00 9E 86 00 06 00 66 FF 00
[2023-10-23 15:32:11.448]# RECV HEX>
60 00 1E 80 00 9E 86 00 06 00 60 7E 33
[2023-10-23 15:32:13.510]# RECV HEX>
66 00 1E 00 00 9E 86 00 06 00 66 FF 78 C0
[2023-10-23 15:32:15.573]# RECV HEX>
06 00 1E 80 00 9E 86 00 06 80 60 FF 18 80
[2023-10-23 15:32:17.649]# RECV HEX>
18 80 1E 00 00 9E 86 00 06 00 60 FF 06 0F
[2023-10-23 15:32:19.710]# RECV HEX>
1E 80 1E 00 00 9E 86 00 06 00 66 00
[2023-10-23 15:32:21.787]# RECV HEX>
60 00 1E 00 00 9E 86 00 06 00 60 FF 7E 9B
[2023-10-23 15:32:23.848]# RECV HEX>
66 00 1E 00 00 9E 86 00 06 00 66 FF 78 E0
[2023-10-23 15:32:25.912]# RECV HEX>
06 00 1E 00 00 9E 86 00 06 00 60 FF 18 00
[2023-10-23 15:32:27.960]# RECV HEX>
18 00 1E 80 00 9E 86 00 06 00 60 FF 06 8F
[2023-10-23 15:32:30.017]# RECV HEX>
1E 00 1E 00 00 9E 86 00 06 00 66 FF 00
[2023-10-23 15:32:32.059]# RECV HEX>
60 80 1E 00 00 9E 86 00 06 00 60 FF 7E 33
[2023-10-23 15:32:34.106]# RECV HEX>
66 00 1E 00 00 9E 86 00 06 00 66 FF 78 E0
[2023-10-23 15:32:36.153]# RECV HEX>
06 00 1E 00 00 9E 86 00 06 00 60 FF 18 00
[2023-10-23 15:32:38.225]# RECV HEX>
18 80 1E 00 00 9E 86 00 06 80 60 FF 06 0F
[2023-10-23 15:32:40.268]# RECV HEX>
1E 00 1E 80 00 9E 86 00 06 00 66 FF 00
[2023-10-23 15:32:42.345]# RECV HEX>
60 00 1E 00 00 9E 86 00 06 00 60 FF 7E 33
[2023-10-23 15:32:44.412]# RECV HEX>
66 00 1E 80 00 9E 86 00 06 00 66 FF 78 E0
[2023-10-23 15:32:46.473]# RECV HEX>
06 00 1E 80 00 9E 86 00 06 00 60 FF 18 00
[2023-10-23 15:32:48.526]# RECV HEX>
18 00 1E 00 00 9E 86 00 06 00 60 FF 06 0F
[2023-10-23 15:32:50.594]# RECV HEX>
1E 00 1E 80 00 9E 86 00 06 00 66 FF 00
[2023-10-23 15:32:52.670]# RECV HEX>
60 00 1E 80 00 9E 86 00 06 00 60 FF 7E 33
[2023-10-23 15:32:54.732]# RECV HEX>
66 00 1E 00 00 9E 86 00 06 80 66 FF 78 C0
[2023-10-23 15:32:56.797]# RECV HEX>
06 00 1E 00 00 9E 86 00 06 00 60 18 00
[2023-10-23 15:32:58.839]# RECV HEX>
18 00 1E 80 00 9E 86 00 06 00 60 FF 06 0F
[2023-10-23 15:33:00.904]# RECV HEX>
1E 00 1E 00 00 9E 86 00 06 80 66 FF 00
[2023-10-23 15:33:02.957]# RECV HEX>
60 00 1E 00 00 9E 86 00 06 00 60 FF 7E 33
[2023-10-23 15:33:05.006]# RECV HEX>
66 00 1E 00 00 9E 86 00 06 00 66 FF 78 E0
[2023-10-23 15:33:07.040]# RECV HEX>
06 00 1E 00 00 9E 86 00 06 00 60 FF 18 00
[2023-10-23 15:33:09.114]# RECV HEX>
18 00 1E 80 00 9E 86 00 06 00 60 FF 06 0F
[2023-10-23 15:33:11.161]# RECV HEX>
1E 00 1E 00 00 9E 86 00 06 00 66 FF 00
[2023-10-23 15:33:13.241]# RECV HEX>
60 00 1E 00 00 9E 86 00 06 00 60 FF 7E 33
[2023-10-23 15:33:15.293]# RECV HEX>
66 00 1E 00 00 9E 86 00 06 00 66 FF 78 C0
[2023-10-23 15:33:17.365]# RECV HEX>
06 00 1E 80 00 9E 86 00 06 00 60 FF 18 00
[2023-10-23 15:33:19.415]# RECV HEX>
18 80 1E 00 00 9E 86 00 06 00 60 FF 06 0F
[2023-10-23 15:33:21.496]# RECV HEX>
1E 80 1E 00 00 9E 86 00 06 00 66 FF 00
[2023-10-23 15:33:23.564]# RECV HEX>
60 00 1E 00 00 9E 86 00 06 00 60 FF 7E 33
[2023-10-23 15:33:25.621]# RECV HEX>
66 00 1E 00 00 9E 86 00 06 80 66 FF 78 C0
[2023-10-23 15:33:27.686]# RECV HEX>
06 00 1E 80 00 9E 86 00 06 80 60 FF 18 00
[2023-10-23 15:33:29.736]# RECV HEX>
18 00 1E 00 00 9E 86 00 06 00 60 FF 06 0F
[2023-10-23 15:33:31.790]# RECV HEX>
1E 00 1E 00 00 9E 86 00 06 00 66 FF 00
[2023-10-23 15:33:33.841]# RECV HEX>
60 80 1E 00 00 9E 86 00 06 80 60 FF 7E 33
[2023-10-23 15:33:35.891]# RECV HEX>
66 00 1E 00 00 9E 86 00 06 80 66 FF 78 C0
[2023-10-23 15:33:37.935]# RECV HEX>
06 00 1E 00 00 9E 86 00 06 00 60 FF 18 80
[2023-10-23 15:33:39.998]# RECV HEX>
18 00 1E 00 00 9E 86 00 06 00 60 FF 06 0F
[2023-10-23 15:33:42.044]# RECV HEX>
1E 00 1E 80 00 9E 86 00 06 00 66 00
[2023-10-23 15:33:44.126]# RECV HEX>
60 80 1E 00 00 9E 86 00 06 00 60 FF 7E 33
[2023-10-23 15:33:46.194]# RECV HEX>
66 00 1E 00 00 9E 86 00 06 00 66 FF 78 C0
[2023-10-23 15:33:48.243]# RECV HEX>
06 00 1E 80 00 9E 86 00 06 00 60 FF 18 80
[2023-10-23 15:33:50.306]# RECV HEX>
18 00 1E 00 00 9E 86 00 06 80 60 FF 06 F8
[2023-10-23 15:33:52.375]# RECV HEX>
1E 00 1E 00 00 9E 86 00 06 00 66 FF 00
[2023-10-23 15:33:54.452]# RECV HEX>
60 00 1E 80 00 9E 86 00 06 00 60 FF 7E 33
[2023-10-23 15:33:56.522]# RECV HEX>
66 00 1E 80 00 9E 86 00 06 00 66 FF 78 C0
[2023-10-23 15:33:58.603]# RECV HEX>
06 00 1E 80 00 9E 86 00 06 00 60 FF 18 00
[2023-10-23 15:34:00.653]# RECV HEX>

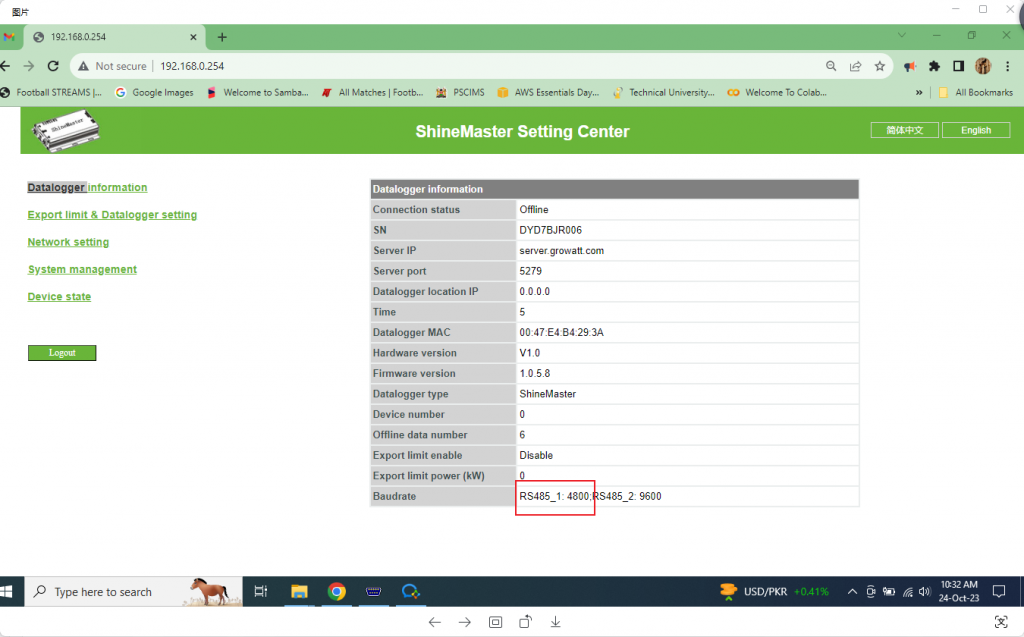

18 00 1E 00 00 9E 86 00 06 00 60 FF 06 0F In the begining, thought that it may be caused by faulty USB-485 or faulty Shinemaster. and have confirmed to local engineer, and said that 485 tool has been tested with another device, and can demonstrate that it is normal. So most probably it is caused by Shinemaster. After checking Shinemaster configuration and find that Baudrate on Shinemaster is different from baudrate on com tool
Reaon Analysis

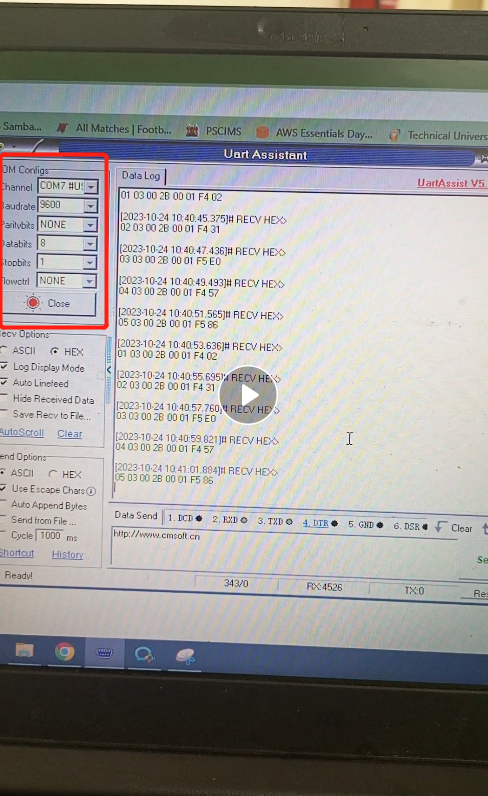

Baudrate on Shinemaster and com tool is different and cause chaotic data. Make sure that before commissioning it, they should be checked meticulously
