SPF 3000TL LVM-ES Introduction
SPF 3000TL LVM-ES is designed for 110V utility area like America, Canada, Mexico, Cuba, Japan, Taiwan, Lebanon etc.
SPF 3000TL LVM-ES Datasheet

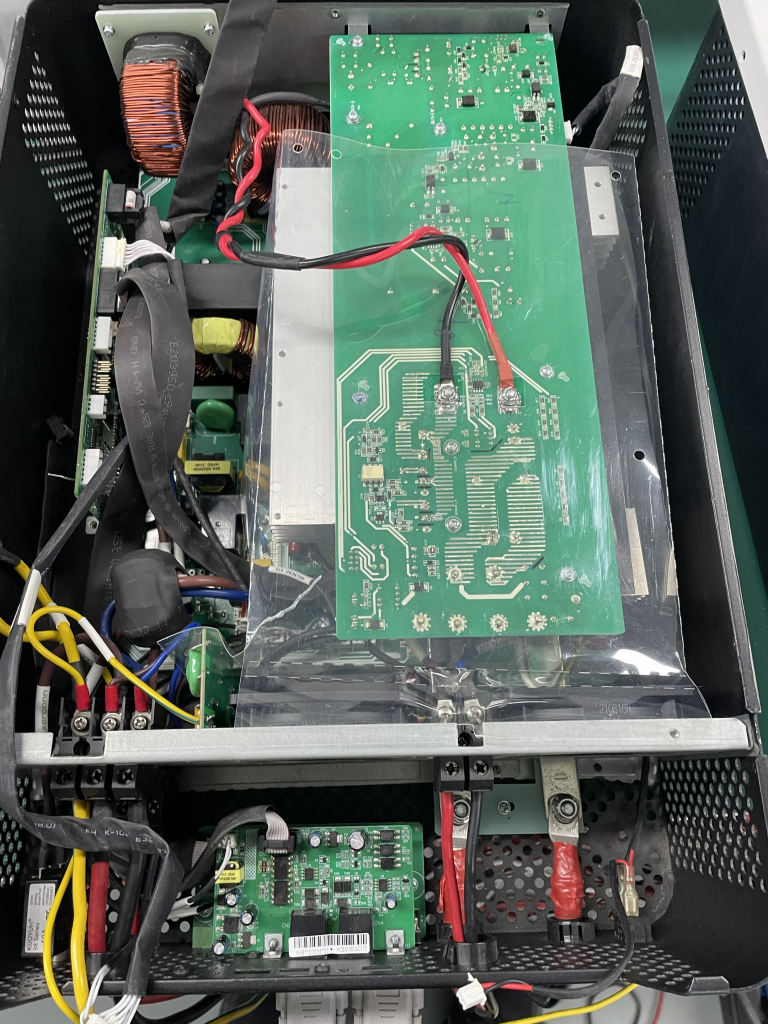

Interval View
Board Function
mainboard
The system layout is almost same with SPF 5000ES ( AC output 220V ) mainboard, the difference is Bus voltage ( almost 200V ), high frequency transformer, BUS capacitor
MPPT Board
The system layout is almost same with SPF 5000ES MPPT board, the difference is Utility SPS circuit
Control Board
It is almost same with SPF 5000ES control board, but sampling chip etc. are different
Parallel Board
It is totally same with SPF 5000ES parallel board
BMS Board
It is totally same with SPF 5000ES BMS board
Com Board
It is totally same with SPF 5000ES Com board
