solar Pump inverter Introduction
Solar Pump Inverter has 2 series. SPI 1500-4000TL2-HV and SPI 3000-22000.
Set Password: 520
SPI 3000-22000
SPI 3000, 4000, 5500 has same internal boards
SPI 7500, 9200, 11000 has same internal boards
SPI 13000, 15000, 22000 has same internal boards
Boards Introduction
For SPI 3000-22000, PV input voltage is converted into BUS voltage directly, then go through 6 IGBTs on 3 phases. The principle is like Frequency converter.

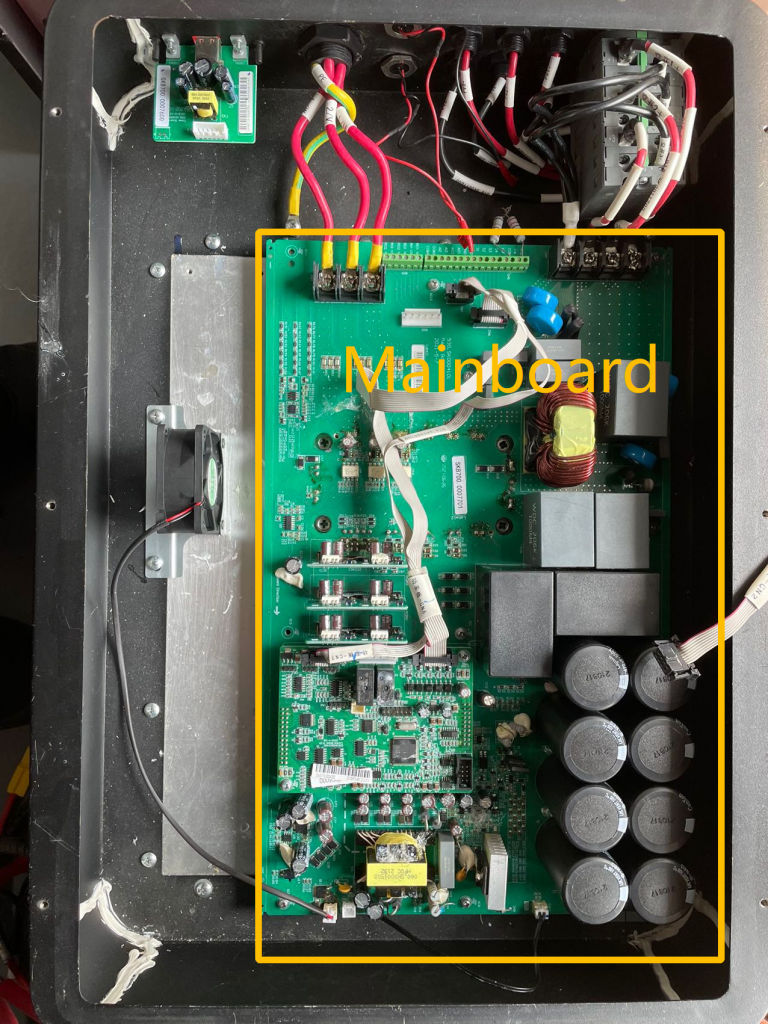

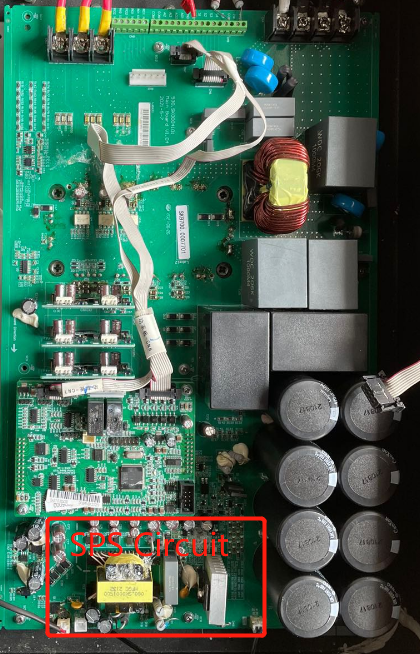

Mainboard
![](https://www.amosplanet.org/wp-content/uploads/2023/02/1677220229748-768x1024.png)
![](https://www.amosplanet.org/wp-content/uploads/2023/02/企业微信截图_16772204652611.png)

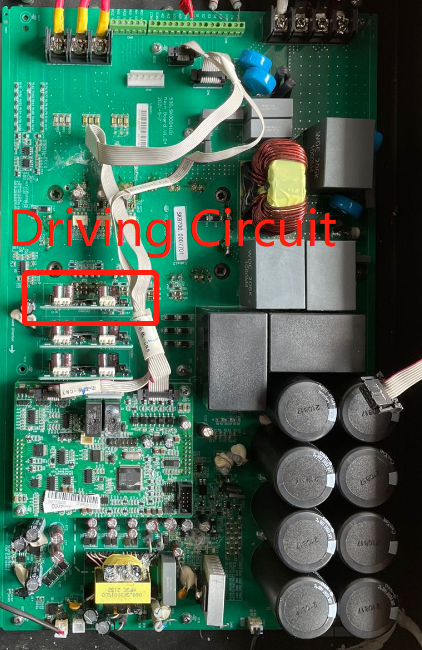

![](https://www.amosplanet.org/wp-content/uploads/2023/02/1677220544223.png)

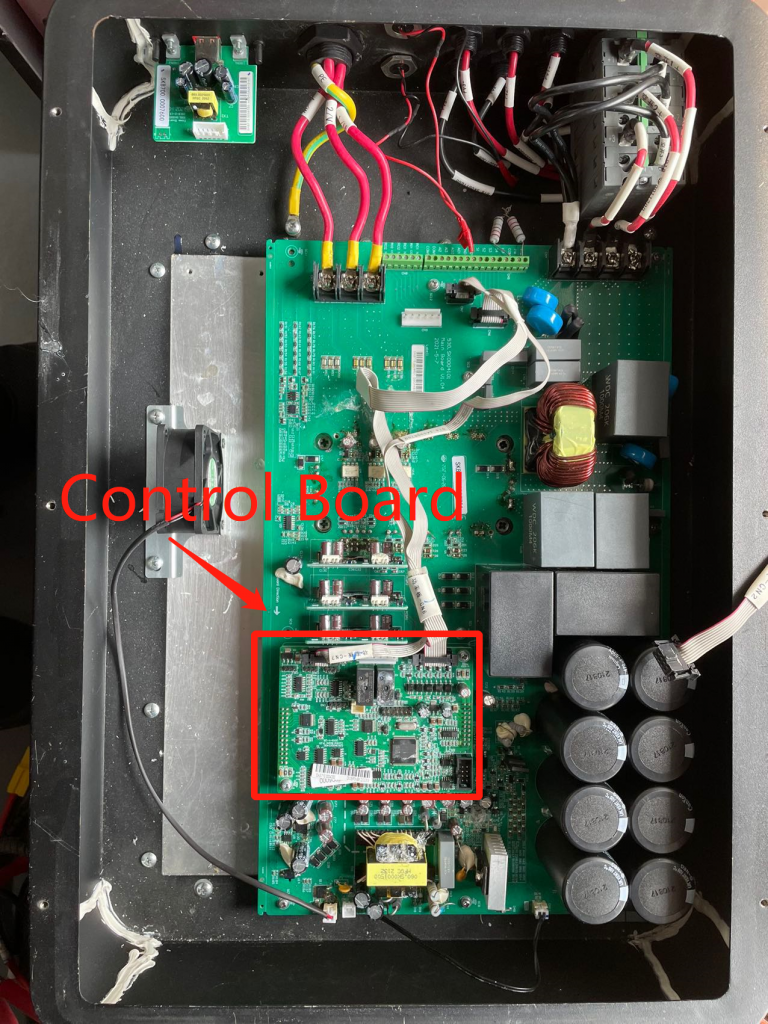

Control Board
![](https://www.amosplanet.org/wp-content/uploads/2023/02/1677220327799-768x1024.png)

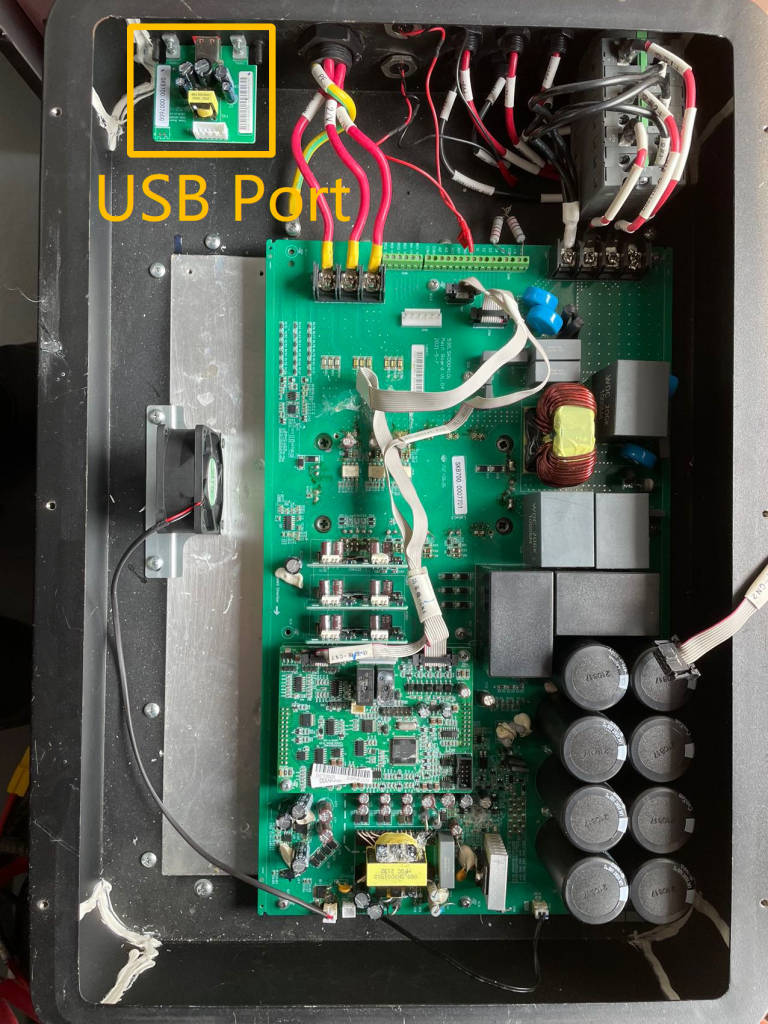

USB Board
![](https://www.amosplanet.org/wp-content/uploads/2023/02/image-8-768x1024.png)

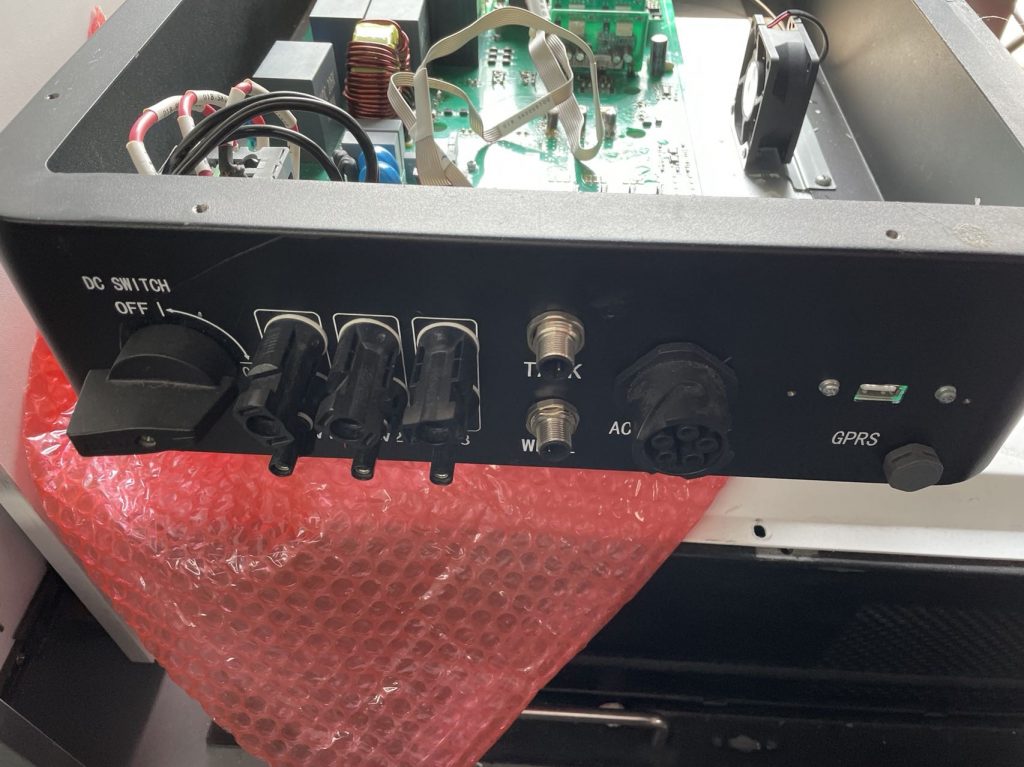

Appearance
![](https://www.amosplanet.org/wp-content/uploads/2023/02/a0d773f851dd1239482da61eccdc41f-1024x767.jpg)
SPI 1500-4000TL2-HV
This series has designed BOOST Circuit on mainboard. AC output is 220V.
SPI 1500-4000 TL2-HV( SPI 1500TL2-HV, SPI 2200TL2-HV, SPI 4000TL2-HV ) Control board are totally same

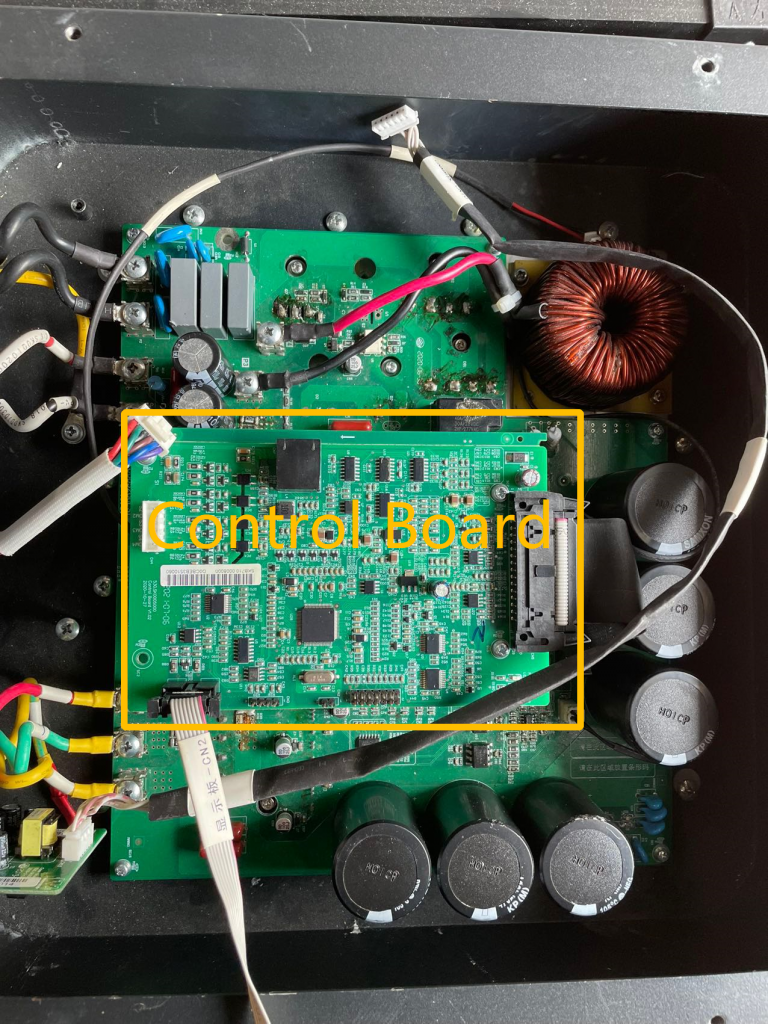

Control Board
![](https://www.amosplanet.org/wp-content/uploads/2023/02/image-9-768x1024.png)

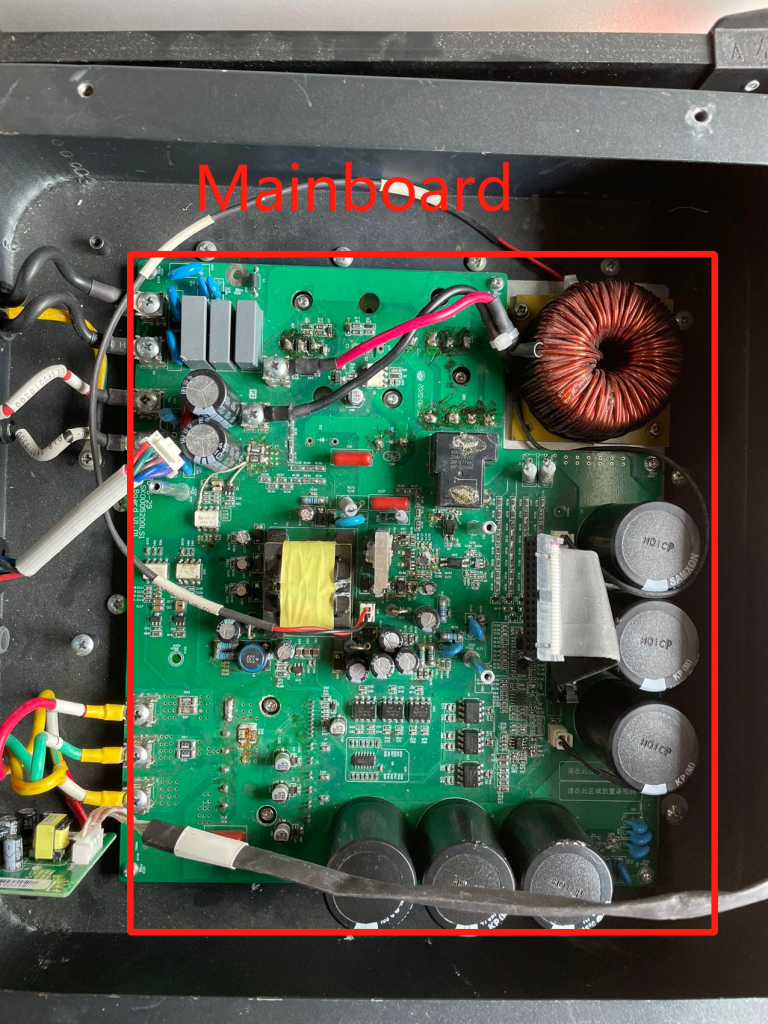

Mainboard
![](https://www.amosplanet.org/wp-content/uploads/2023/02/image-10-768x1024.png)
SPI 1500-2200 TL2-HV mainboard current sample circuit and INV IGBT are different
SPI 4000 TL2-HV Mainboard has big difference from SPI 1500-2200 TL2-HV mainboard

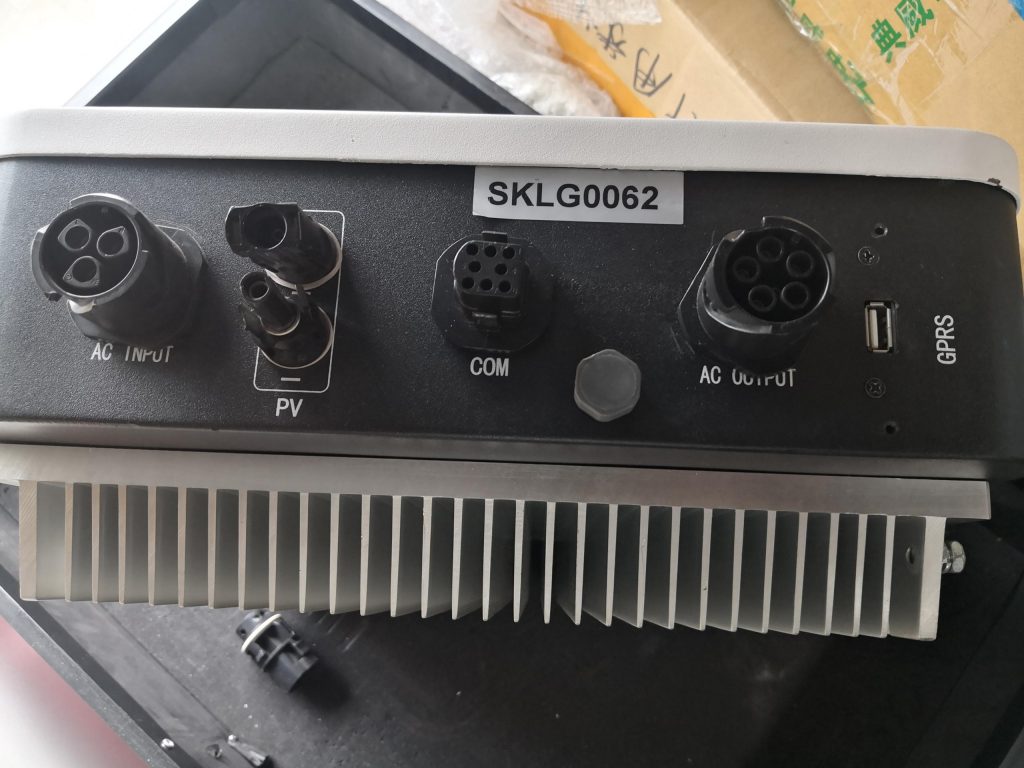

Bottom
![](https://www.amosplanet.org/wp-content/uploads/2023/03/d801641663f07c4660b721ce6b4ba3f5-1024x768.jpg)
