MAX 50-100KTL3 LV Register address meaning
MAX /MAC/MID-X Modbus protocol type Download
Hold register address
It is related with settings of inverter,
Input Register address
It is related with running parameters of inverter.
Register Value
00
Meaning: Remote On/Off
ON: 1, OFF: 0
01
Meaning: SafetyFuncEn
Bit0: SPI Enable
Bit1: AutoTestStart
Bit2: LVFRT Enable 低电压穿越
Bit3: FreqDerating Enable When it enables, 91 register(Frequency Degrading point) address can be set.
Bit4: Softstart Enable 开机加载速率，每个机型都有
Bit5: DRMS Enable 澳大利亚电网调度指令
Bit6: PowerVoltageFunc : High voltage degrade , it is based on local utility safey rule
In the past , Bit0-3: for CE10-21 safety rule, Bit 4-6 for SAA. Now it has been cancelled.
02
Meaning: PF CMD memory state
Set Holding register address 3,4,5,99 CMD will be memory or not (1/0), If not, these settings are the initial value
03
Meaning: Active P Rate
Inverter Max output active power percent
Value: 0-100 or 255 ; 255: power is not be limited
04
Meaning: Reactive P Rate
Inverter Max output reactive power percent
05
Meaning: Power factor
Inverter output power factor’s 10000 times. If you want to set PF as 0.8, 0.8*10000 can be set on the register address

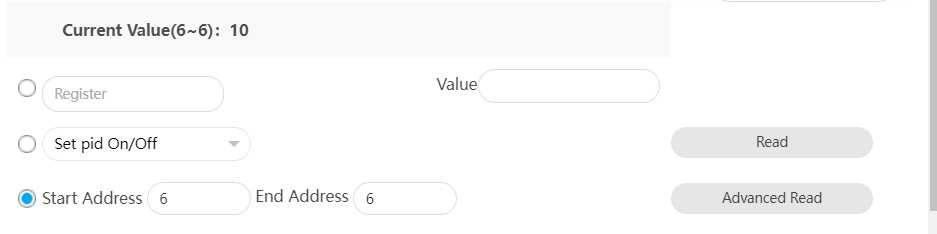

06 and 07
Meaning: Rated Power
06 register address: Normal power (high)
07 register address: Normal power (low)

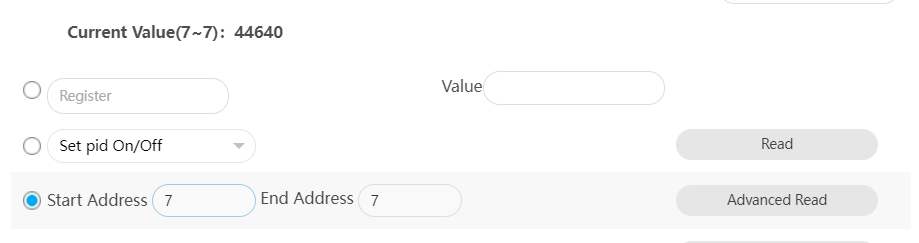

Algorithm: (06 register address value * 2^16+07 register address value)*0.1w
(10*65535+44640)*0.1w= 69.999
08
Meaning: Vnormal
Normal work PV voltage
09 , 10 ,11

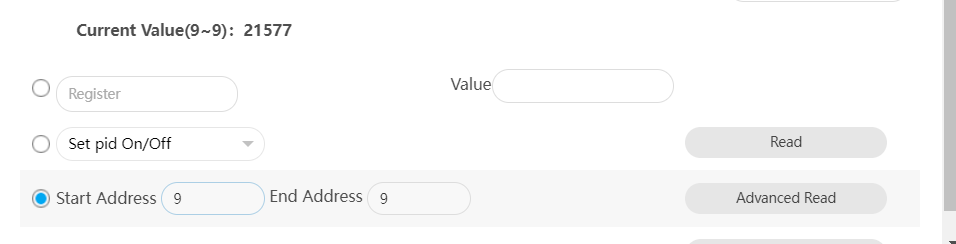

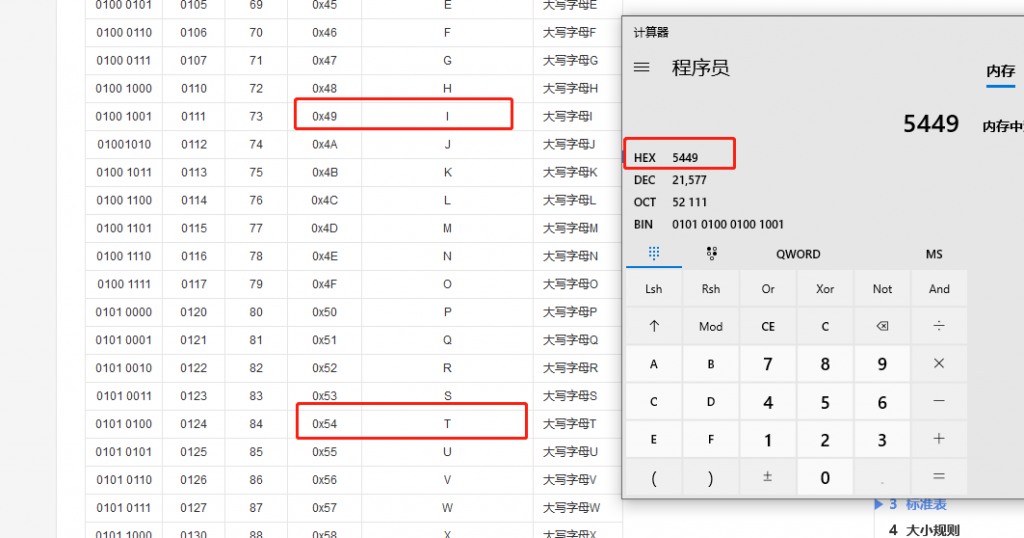

09: Fw version H Firmware version (high)
5449 ASCLL码等于TI

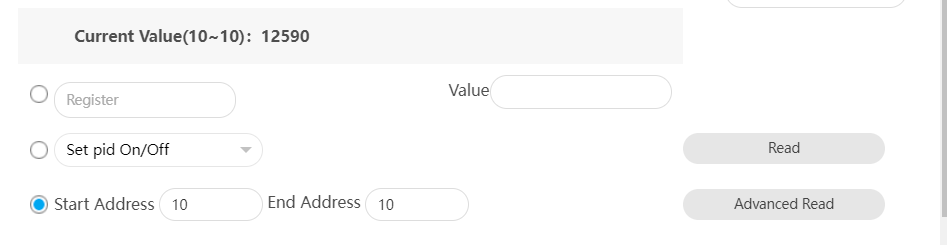

10: Fw version M Firmware version (middle)

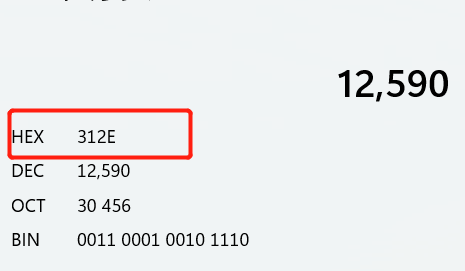

312E ASCLL码等于 1.

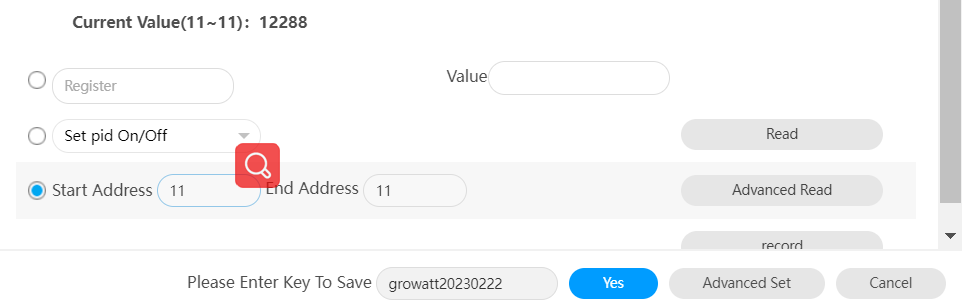

11: Fw version L Firmware version (low)

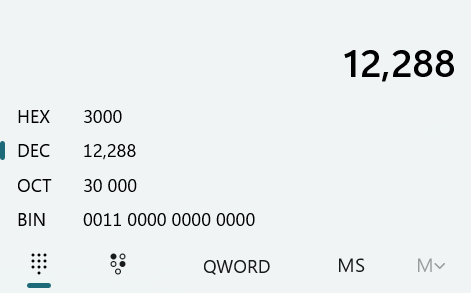

3000 ASCII 码等于 0
12 , 13 ,14
12 Fw version2 H Control Firmware version (high)
13 Fw version2 M Control Firmware version (middle)
14 Fw version2 L Control Firmware version (low)

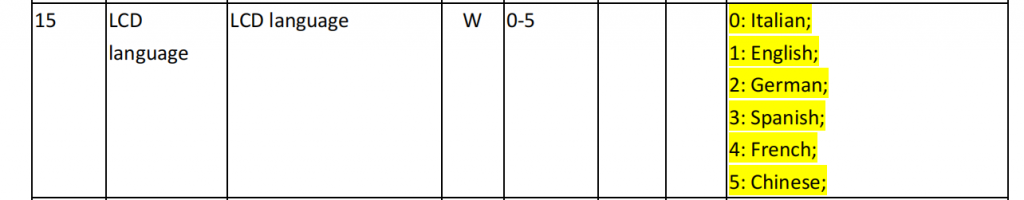

15

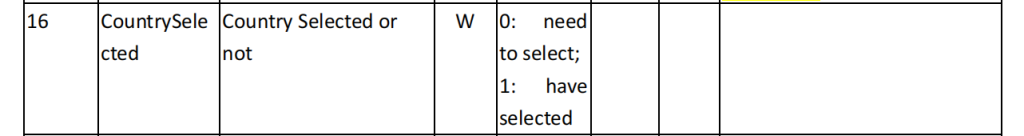

16

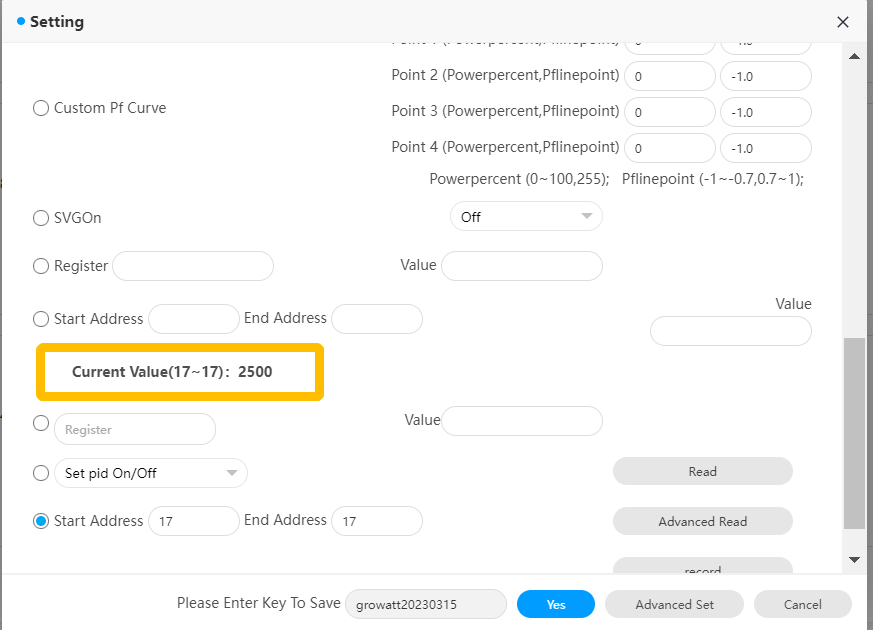

17
18

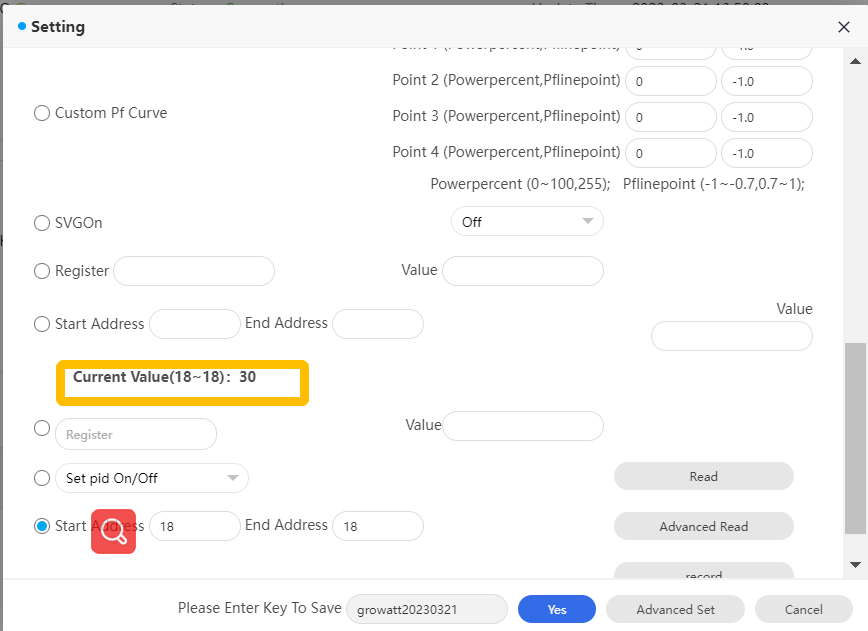

Grid Time: The interval time that inverter connects to grid, if M3 version is lower than 19, MAX grid time 900s, if M3 version is 19, MAX grid time 1200s
19
Reconnecting time
20
开机时候加载斜率
When inverter is switched on, startslope
21
When inverter restarts, powerrestartSlope

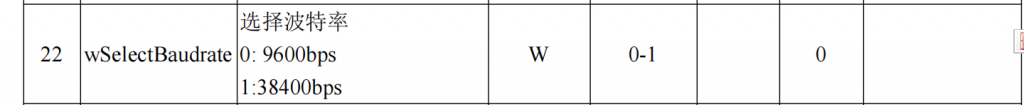

22
Set Baude Rate
23-27
Inverter S/N
28-29
Model number
| Model高位设置（A*B*D*T*) | 28 | 0-65535 | 工程模式的寄存器设置需转换成10进制（如A0B0D1T0)对应0x0010(对应十进制16），输入16 |
| Model低位设置（P*U*M*S*) | 29 | 0-65535 | 工程模式的寄存器设置需转换成10进制（如PFU1M3SA)对应0xF13A(对应十进制61754），输入61754； 设置28和29号寄存器需先发关机命令使逆变器处于非逆变状态； |
30
Com Address is inverter Address
31
Upgrading Status or upgrading progress query
32

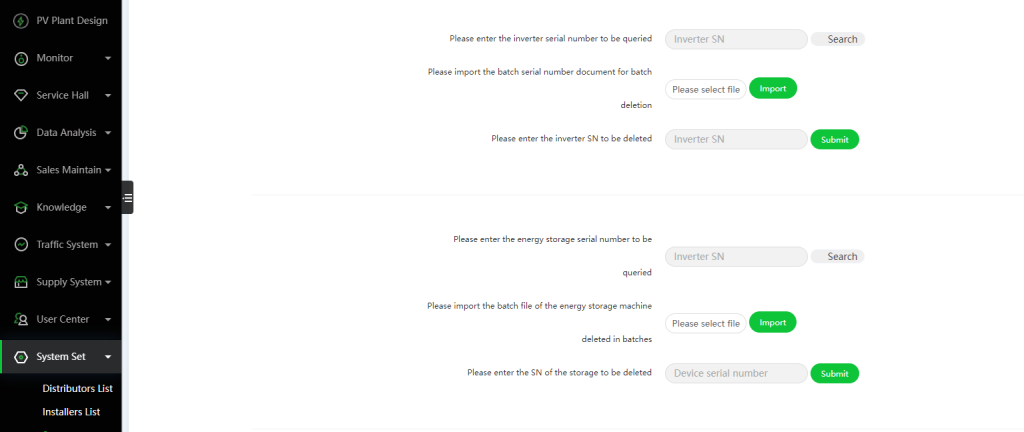

delete electricity data on inverter
Please note that on OSS, there is also delete function which is used to delete server data.
33
安规参数会恢复默认值,但当前设置的安规号不变
A和S定义 的安规号不变，只是相关参数会还原

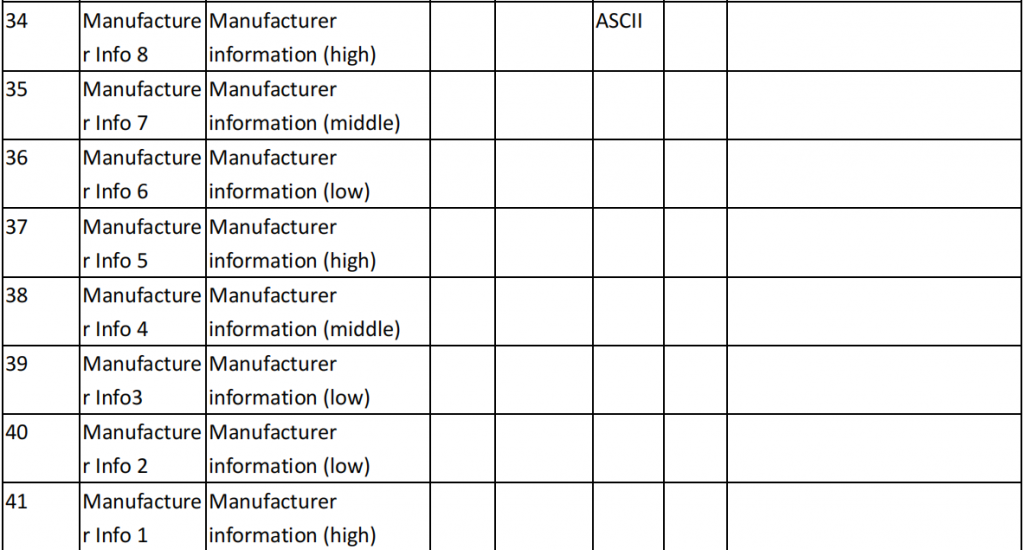

34-41
It is used to show manufacuter info. like Growatt

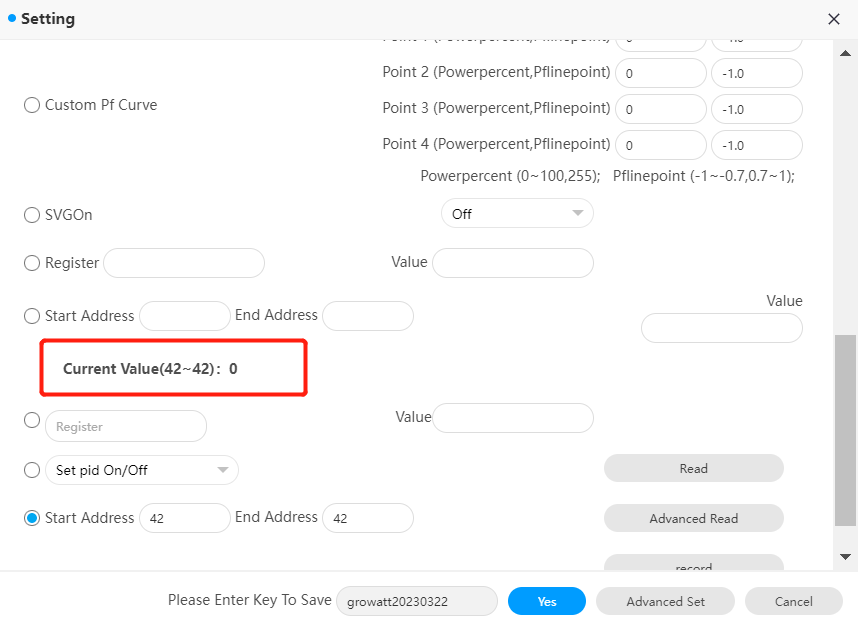

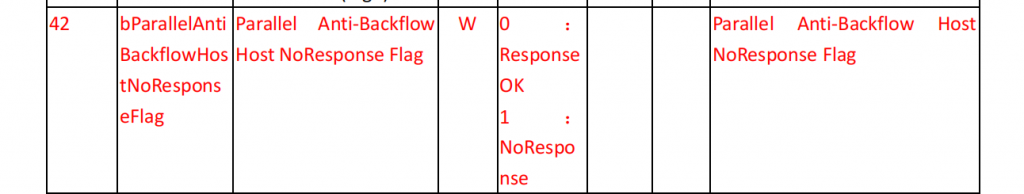

42
It is for exporting current limitation flag of multi inverters in parallel
43
Device Type Code is used for our server data division

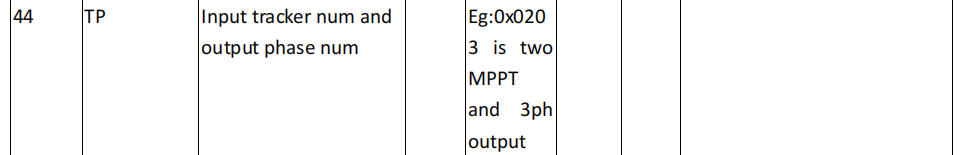

44
It is for CHNT brand model specially

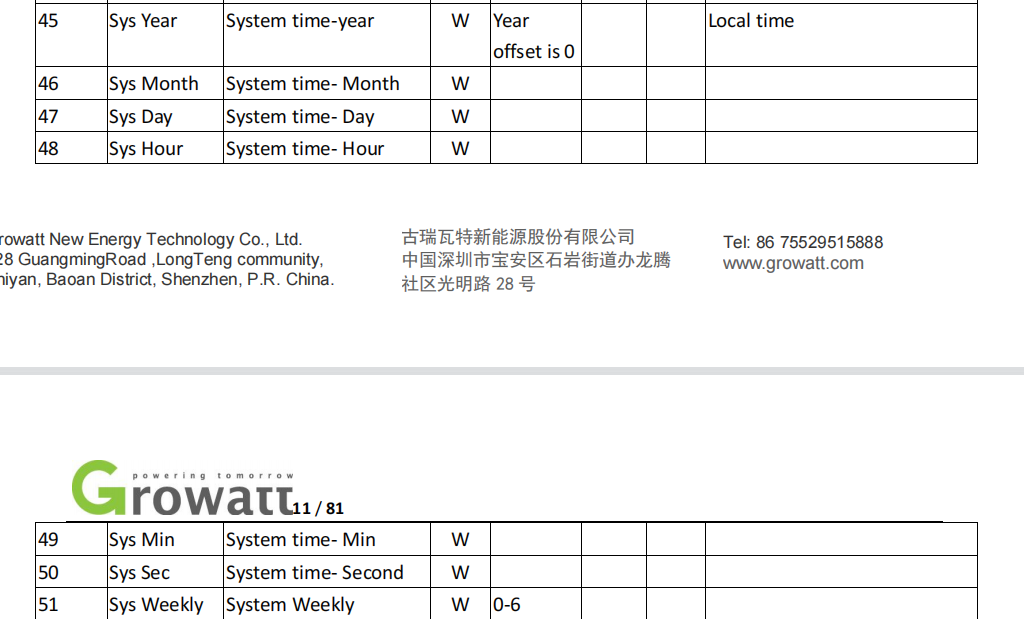

45-51
52
53
54
55
56
57
58
59
60
61

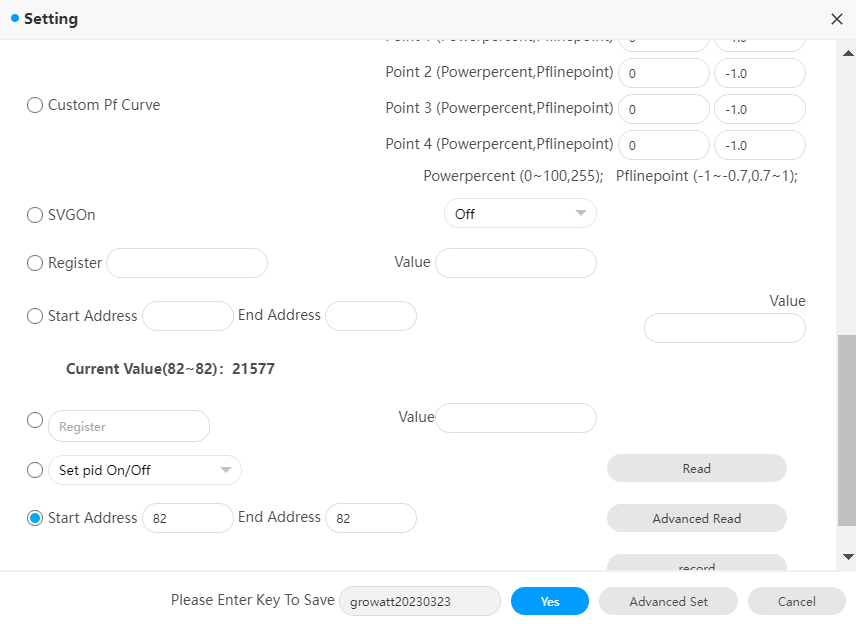

82

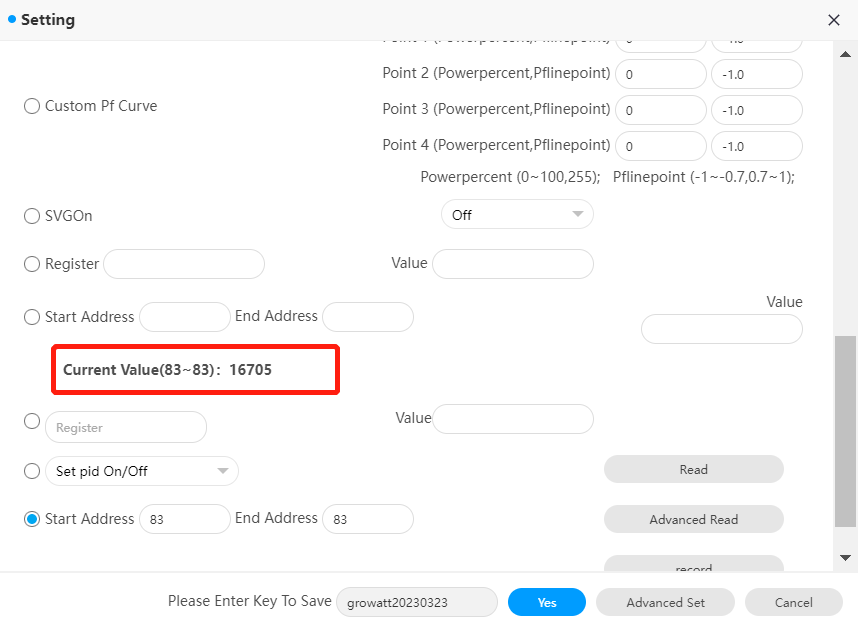

83
84
85
86
87
88

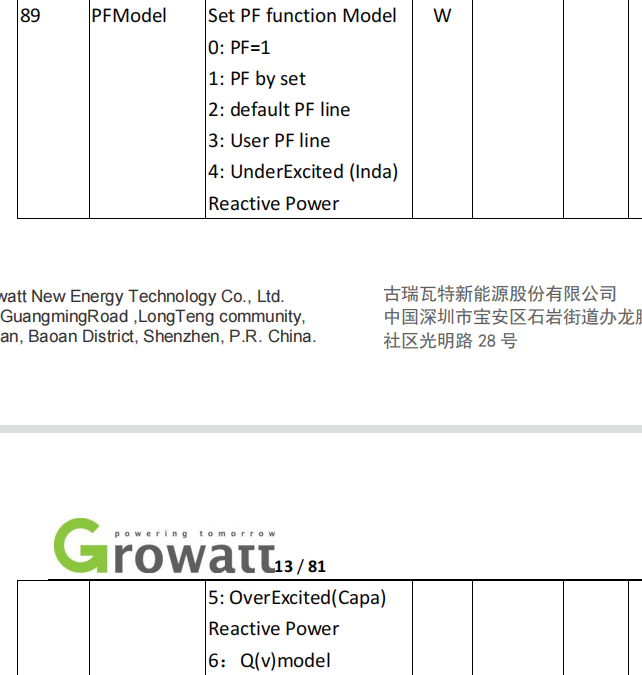

89
0: PF =1
Set PF =1
1: PF by set
Set PF value
2: Default PF Line
3: User PF Line
User set customized PF line
4. Underexcited(Inda)
Reactive Power
5. OverExcited(Capa)
Reactive Power
6. Q(v) Model

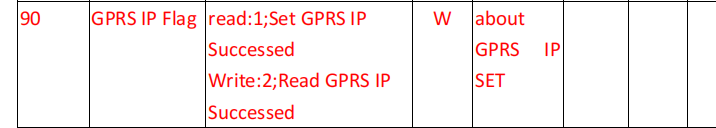

90
91
92
When frequency exceeds rated value, limit rate that inverter will degrade( 过频降载的一个斜率 )

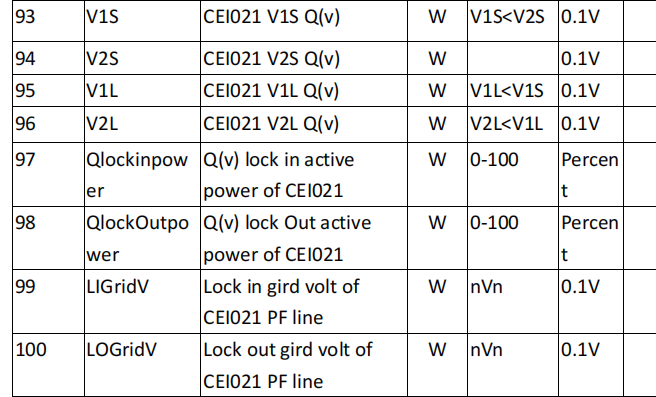

93-100

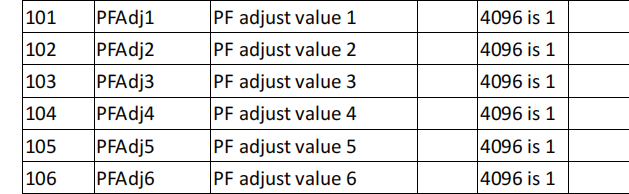

101-106
107

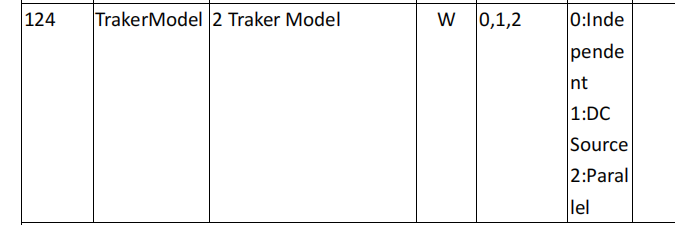

124
0是每一路不同的源，且每一路独立；2是输入并在一起，PV电压基本一致；取最大路MPPT电压的那一路控制
0 means different sources for each channel, and each channel is independent; 2 means the inputs are combined together, and the PV voltage is basically the same; take the control of the channel with the largest MPPT voltage
