How to adjust to battery voltage of off grid inverter on lcd display
Procedures:
Please note that the method just can be used for several voltage difference between real battery voltage and LCD Display. If the difference is large, maybe board is something wrong.
- Only connect battery to inverter( Don’t connect inverter to utility, PV system and load ); It mainly prevents the big fluctuation on battery voltage.

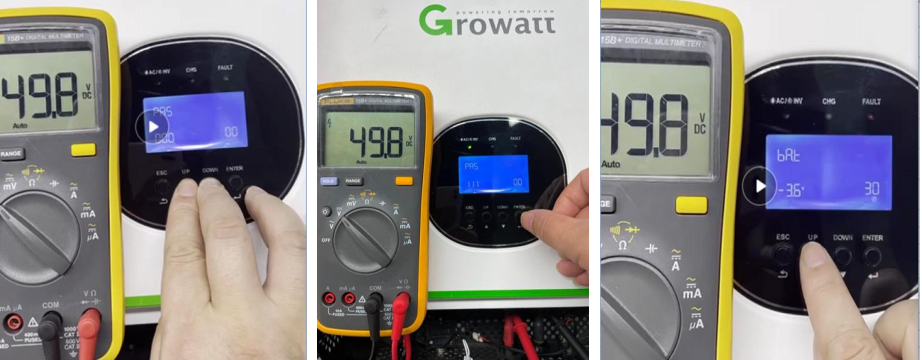

- Press UP an Down at the same time for 3 seconds and type 111 , then press Enter
- Select battery page , S means reduce the voltage, A means increase the voltage.
For example, LCD displays 53V and multimeter displays 50V, then type 3V on S state. And press Enter
to save it.
Hi Amos,
Thanks for this. Helps a lot.
Which parameters allows me to reconfigure the SOC to Battery voltage ratio? The SOC seems to be linked to a Flooded/AGM type battery and not the flat curve of a LifePo4 SOC curve.
Dear Mark,
You can’t configure it, because SOC is caculated based on battery voltage. That’s why it is not accurate, just for reference
Thanks!
