Unique MPPT
System Layout
Model Series Introdcution
Mic 2.5K-3.3K, Both Mainboard and IO board are same, IO board, GFIC, ISO, Relays , Filtering Wave Circuit, lighting strike protector are integrated on IO board.
MIC 600-2K, Both Mainboard and IO board are same, IO board, GFIC, ISO, Relays , Filtering Wave Circuit, lighting strike protector are integrated on IO board.
Mic 2.5K-3.3K Board Introduction

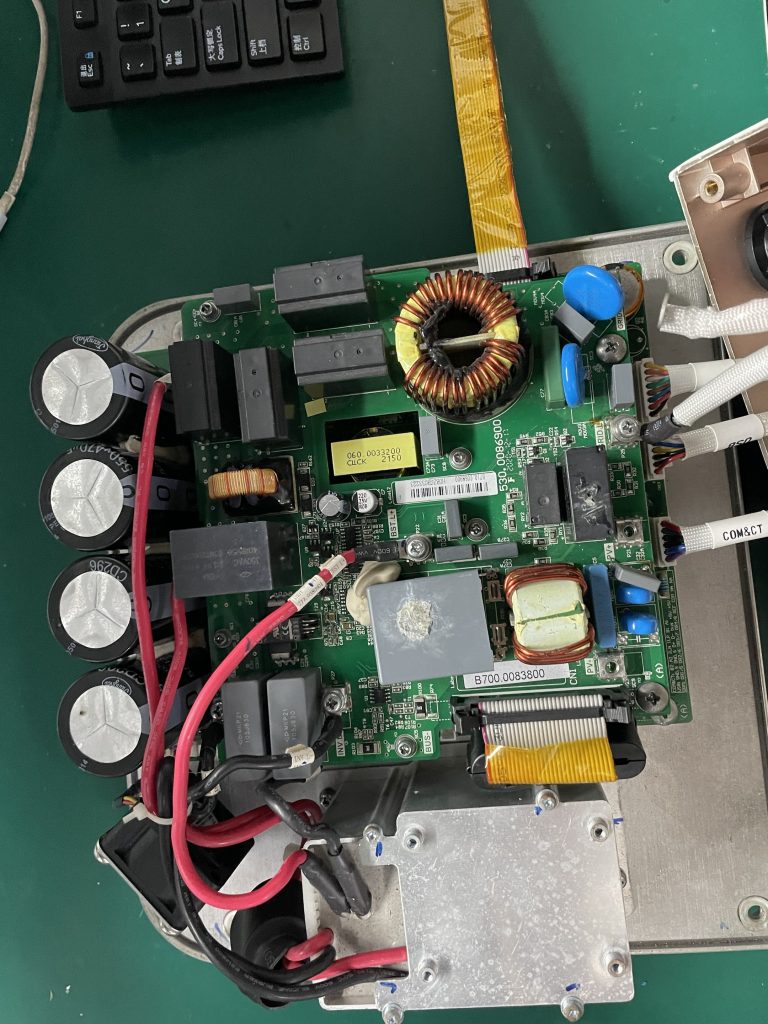

IO Board
![](https://www.amosplanet.org/wp-content/uploads/2023/10/eaa7758a-ac7b-4586-867a-abbefe000676-768x1024.jpg)

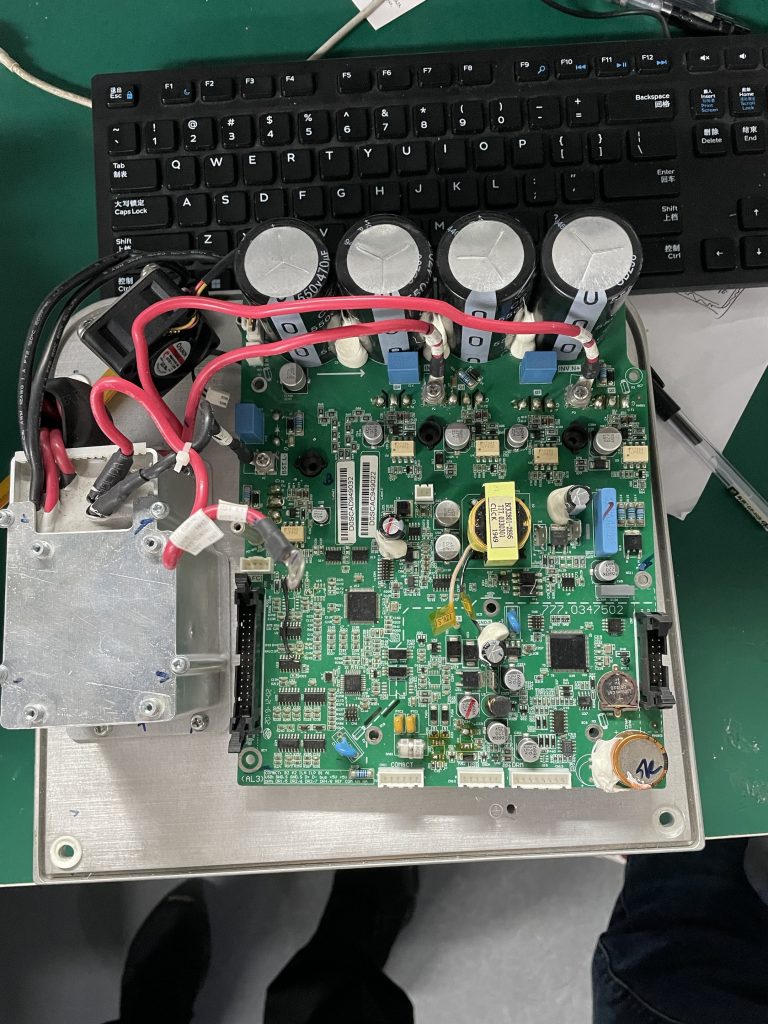

Mainboard
![](https://www.amosplanet.org/wp-content/uploads/2023/10/ecfec3eb-160a-4edb-9d1f-aef590ad980f-768x1024.jpg)
Mic 2.5K-3.3K Board Function Introduction
IO Board
![](https://www.amosplanet.org/wp-content/uploads/2023/10/企业微信截图_1697463368892.png)

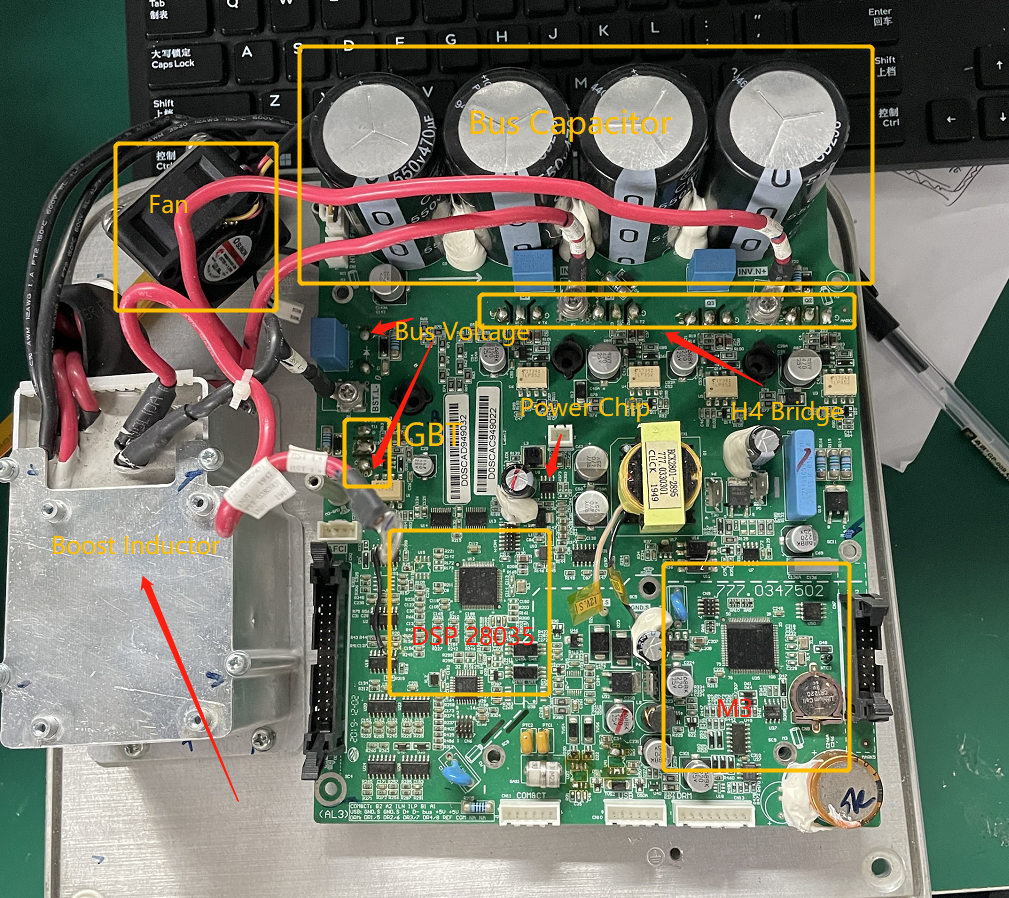

Mainboard
Only this series MIC has Fan.
![](https://www.amosplanet.org/wp-content/uploads/2023/10/企业微信截图_16974639016428.png)
Mic 0.6K-2K Board Introduction

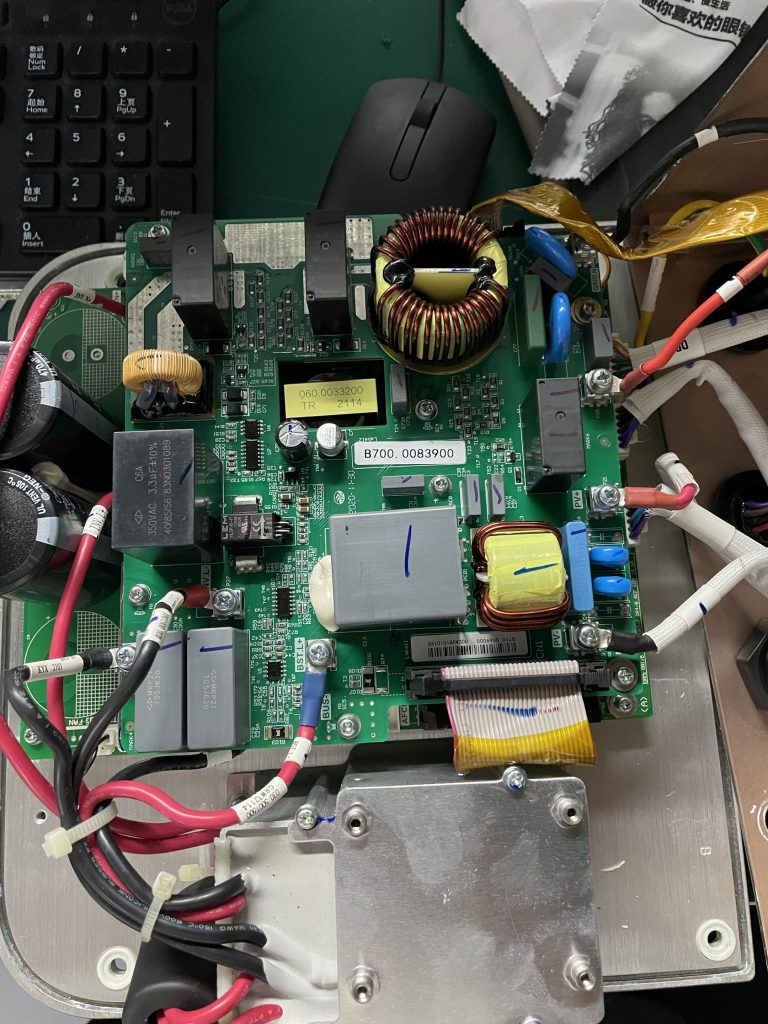

IO Board
just 2 relays on AC output side
![](https://www.amosplanet.org/wp-content/uploads/2023/10/e992fc21-de3a-4ae3-a03f-3d7f57f4e501-768x1024.jpg)

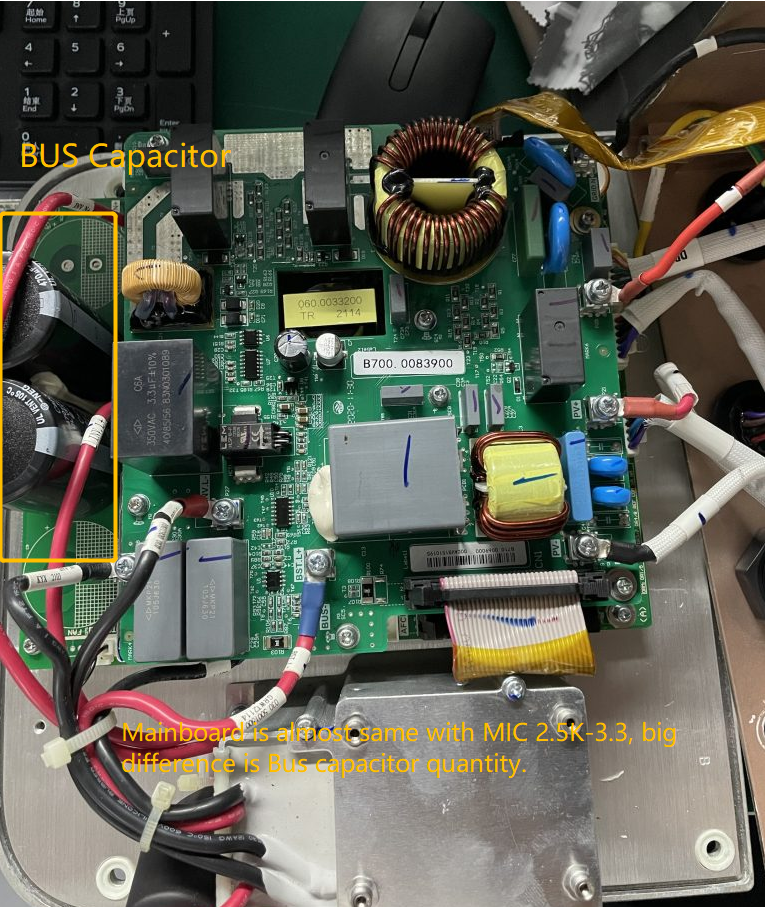

MainBoard
![](https://www.amosplanet.org/wp-content/uploads/2023/10/企业微信截图_16974646992775.png)
