Material code list of Off Grid Inverter
SPF 3000TL HVM 24V
1. MOV Board SKB700. 0008401
SPF 5000ES
SPF 5000ES DC-DC电路
021.0009200 FUSE/11.9*41.7*0.6 电池输入端进入DC-DC电路的保险丝 100只
010.0017800 DC-DC电路16个MOS管，1600只
KA3525 DC-DC电路驱动芯片 50只
010.0009400 IGBT STGWT80H65DFB/80A/650V/TO-247/175度/引脚长20mm DC-DC电路上4个IGBT， 400只
009.0000700 2SC2873-Y/2A/50V/150℃/NPN/SMD 驱动电路中三极管， 400只
009.0000800 2SA1213-Y/-2A/-50V/150℃/PNP/SMD 驱动中三极管，400只
001.0007800 22ohm/1206/F DC-DC电路驱动电路电阻 200只
001.0022200 47K/1206/F/SMD DC-DC电路驱动电路电阻 200只
001.0005900 10ohm/1206/F/SMD DC-DC电路驱动电路电阻 200只
001.0016500 47ohm/1206/F DC-DC电路驱动电路电阻 200只
001.0008400 49.9K/1206/F/SMD DC-DC电路驱动电路电阻 200只
SPF 5000ES DC-AC电路
010.00094 IGBT STGWT80H65DFB/80A/650V/TO-247/175度/引脚长20mm 400只
001.00165 47ohm/1206/F 200只
007.0000900 Photo-coupler 200只
SPF 5000ES 主板辅源电路
010.0010900 NMOS/IRF640/16A/200V/TO-220 辅源电路MOS管 100只
008.0006000 ES2D-E3/5BT/2A/200V/150℃/DO-214AA(SMB) 二极管 100只
001.00059 10ohm/1206/F/SMD 200只
电源芯片 UC2845 007.0023900 200只
SPF 5000ES MPPT板
010.0004300 IGBT FGH60N60SMD/60A/600V/175℃/TO-247 BOOST电路上IGBT， 200只
008.0001902 APT30DQ60BG/30A/600V/175℃/TO-247 BOOST电路上二极管 ， 100只
007.0000900 FOD3120SD/8PIN/100℃/SMT 8-Pin(Lead Bend) 光耦 100只
009.0000700 2SC2873-Y/2A/50V/150℃/NPN/SMD 驱动三极管 200只
010.0012300 MPPT板辅源 IXTP3N100P/3A/1000V/150℃/N/TO-220 100只
008.0000900 STTH310S/3A/1000V/175℃/SMC MPPT辅源驱动二极管 200只
002.0008700 无感绕线电阻 NKNP 3W 0.33R 2%（无感） 200只
930.0500701 BUS电容 200只
960.0000300 M3*10三合一十字 1000只
960.0045800 M3X8三合一十字 1000只
920.0022100 上盖 螺丝 200只
960.0500300 M6 螺母, 200只
KUOYUH/40A/250AC/直脚 断路器 015.SK0000800 50只
018.0459100 从逆变器开关至主板连接线 联益/XH-2P*2+UL1007#22AWG*(红/黑)+187端子 净长L=450mm/L=160mm(不含端子) 100根
PV输入端子 020.0014500 50只
AC输入输出端子 018.0232200 50只1. MOV Board SKB700.0001101
2.40A breaker
KUOYUH/40A/250AC/直脚
015.SK0000800
3. Inductor Board
BOOST电感/NPF226060/1.5mH±10%/74Ts/Ф1.1*2P
030.Sk0001102
4. AC 输入输出端子
018.0232200
5. PV输入端子
020.0014500
MAX 50-80K 6MPPT
MAX 50-70KTL3 IO Board DIP（Standard 继电器6PCS） B700.0064002
MAX 50-100KTL3 POWER Board DIP B700.0056501
PCBA半成品_MAX 50-100KTL3 CTRL Board DIP B700.0063801
PCBA半成品_MAX STM3 Board DIP（F107/外置监控）B700.0124700
台达/外部风扇/PFB0924GHEF0K/929238/24V/0.67A 25.0013901
台达/THB1224B-AEYN/内部风扇/12012025.4mm/24VDC/0.5A/4500RPM/L=140mm 025.0017800
MAX 100-125K 7MPPT
MAX 100-150KTL3-X IO Board DIP 100.0266403
MAX 100-150KTL3-X Power Board DIP（两脚二极管）100.0266204
MAX 50-100KTL3 CTRL Board DIP B700.0063801
MAX 50-100KTL3 STM3 Board DIP（LED）（External）（F107）B700.0124701
(A)NMB/12038VA24QFUE1/内部风扇/12010538mm/24V*1.04A/5700转/IP20/黑色套管/JST端子 25.0018700
永立/MGT9224YB-W38 E/外部风扇/929238/24VDC/0.88A/10300RPM/IP68/L= 1400mm 025.0024100
SPH 3000-6000
温度传感器/L=1500MM/接水晶头 13.0009900
温度传感器/L=1500MM/接水晶头/NTSF3153GZ001 013.0018400
SPH 3000-6000 TL BL UP
NTC is totally same with SPH 3000-6000
SPH 4000-1000TL3 standard
NO NTC
SPH 4000-1000TL3 UP
NO NTC
MIN 6000-X
B700.0105700 can be used in MIN 6000-X, but it has no CT exporting current limitation

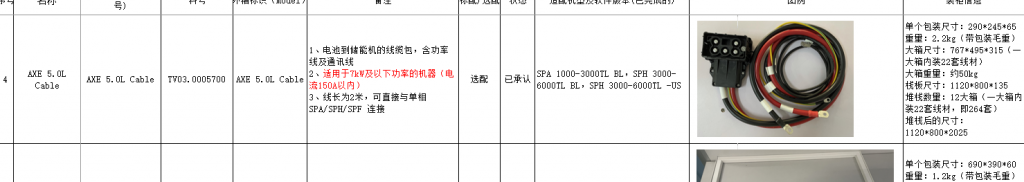

AXE 5.0L cable
Hope 4.8L-c1 can communication cable
018.SK0030300
OFF Grid Inverter – lOW frequency Inverter
When you apply low frequency inverter spare parts, please make sure that you have applied them below. They are newest ones, and have been improved a lot. Or other matierial code will cause something wrong.

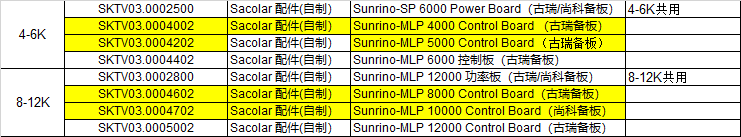

SPF 12000T DVM-US MPV
SKB700.0002601 Sunrino 12000 Power Board(with Bypass) DIP
SKB700.0008601 (A)Sunrino-SP 12000 Control BOARD （with Bypass）DIP
