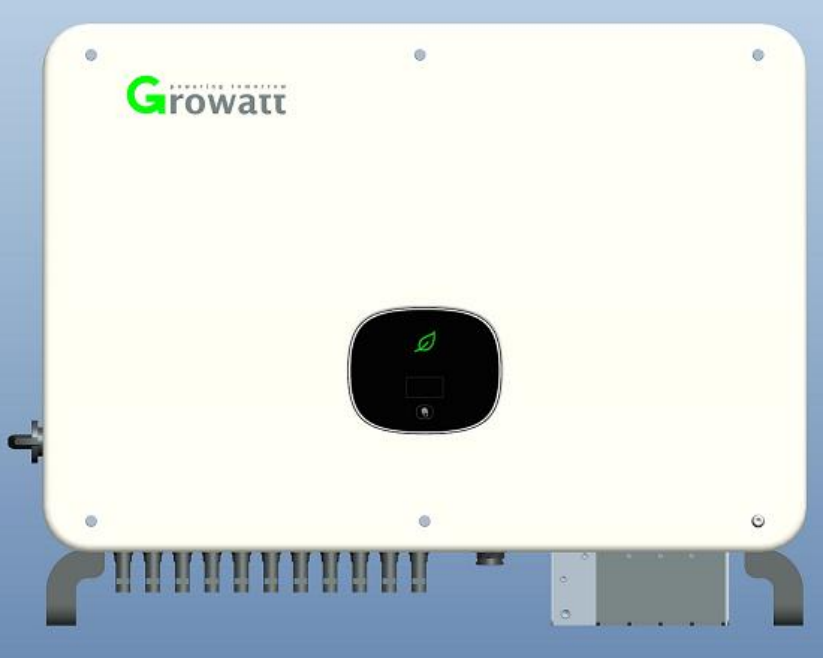

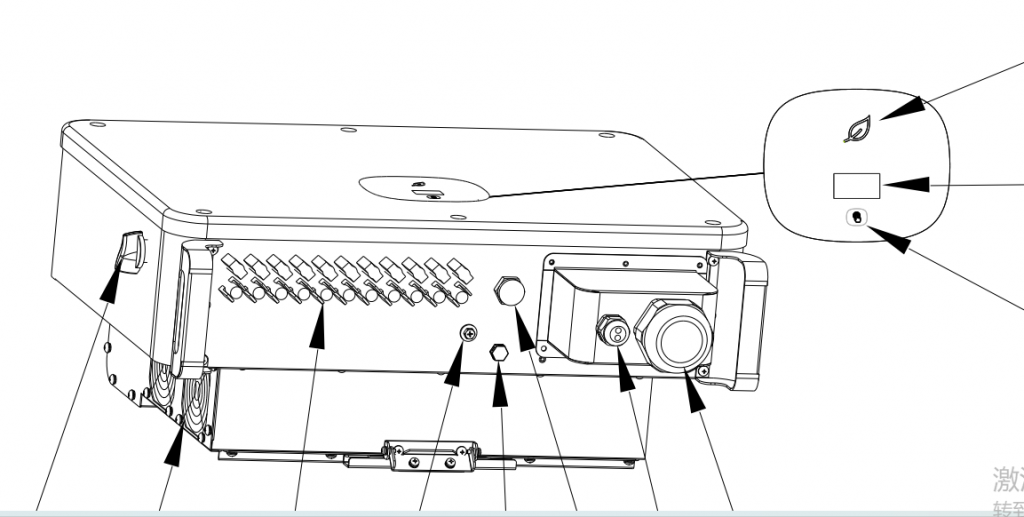

Product Appearance
![](https://www.amosplanet.org/wp-content/uploads/2023/12/企业微信截图_1701953669588.png)
![](https://www.amosplanet.org/wp-content/uploads/2023/12/企业微信截图_17019542147670-1024x517.png)

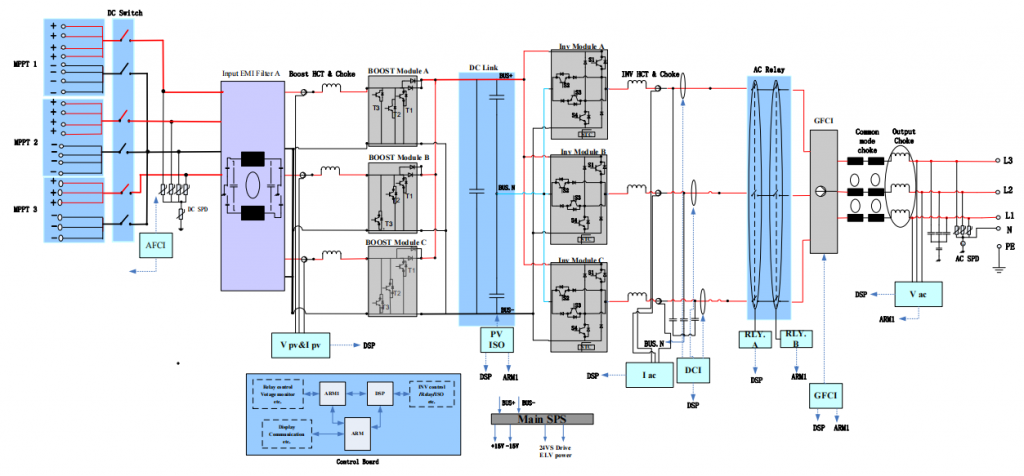

System Principle
![](https://www.amosplanet.org/wp-content/uploads/2023/12/企业微信截图_17019537607455-1024x476.png)

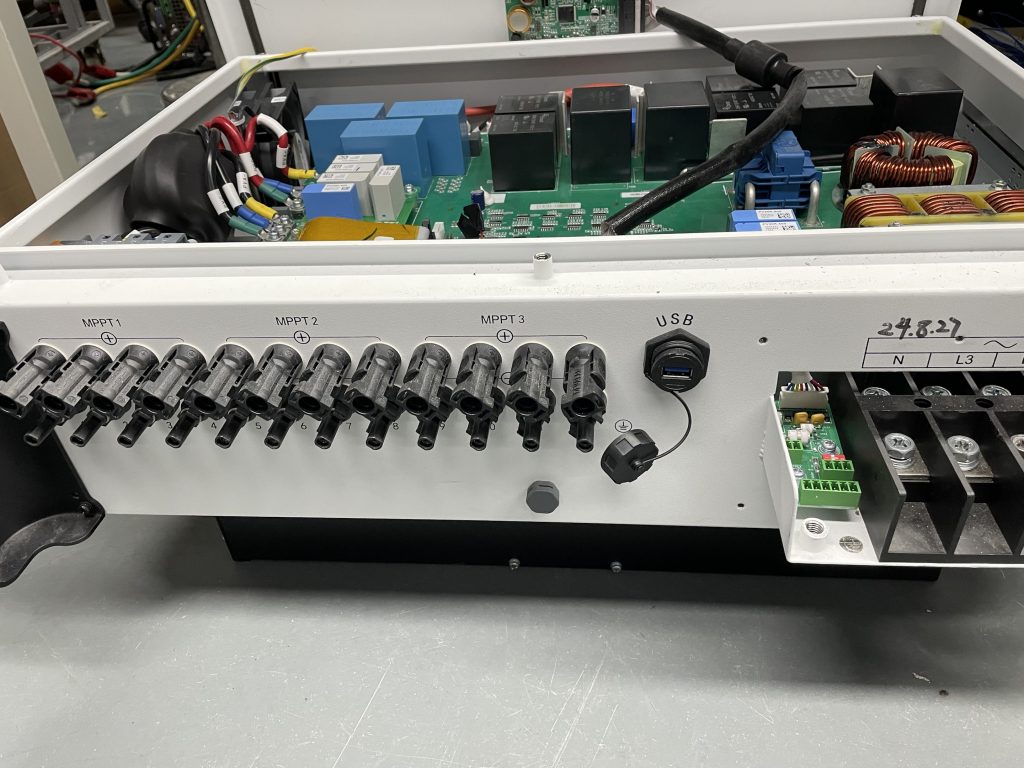

Bottom Port
![](https://www.amosplanet.org/wp-content/uploads/2023/12/366a776f-e492-4006-9f94-ea5b4722cc1a-1024x768.jpg)
MAC 50~70KTL3-X has different IO, Mainboard on different models. Boards can’t be swapped each other on different models
Board Introduction

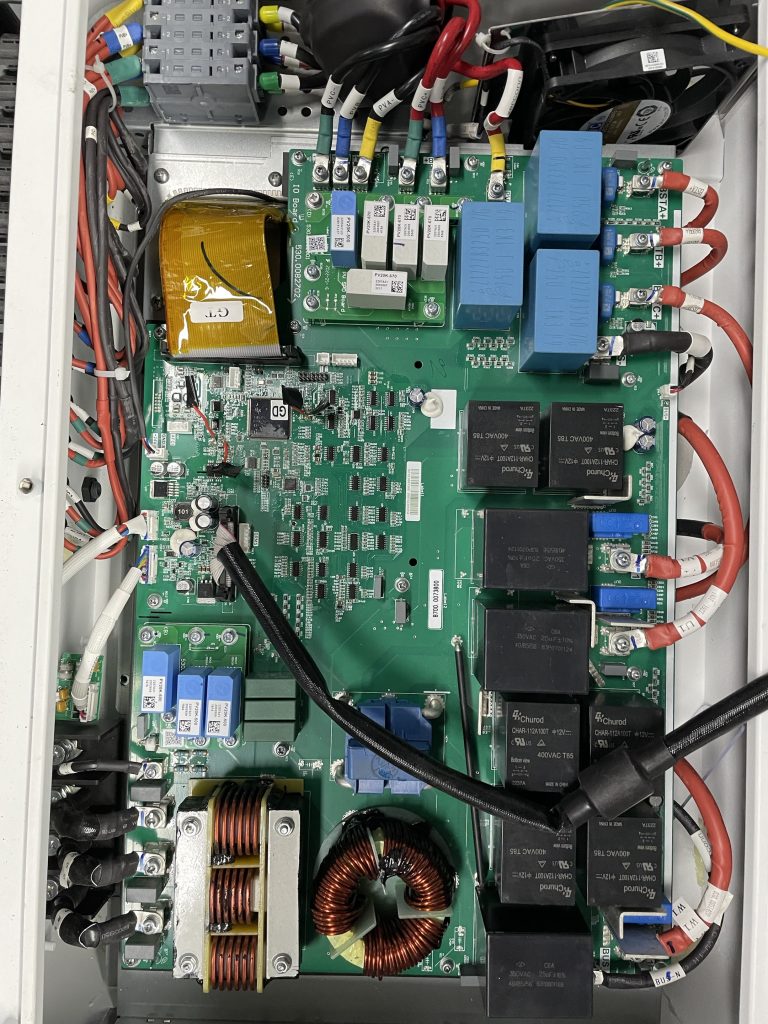

IO Board
![](https://www.amosplanet.org/wp-content/uploads/2023/12/e0182eac-1ea3-487a-8874-c4021ed7033a-768x1024.jpg)

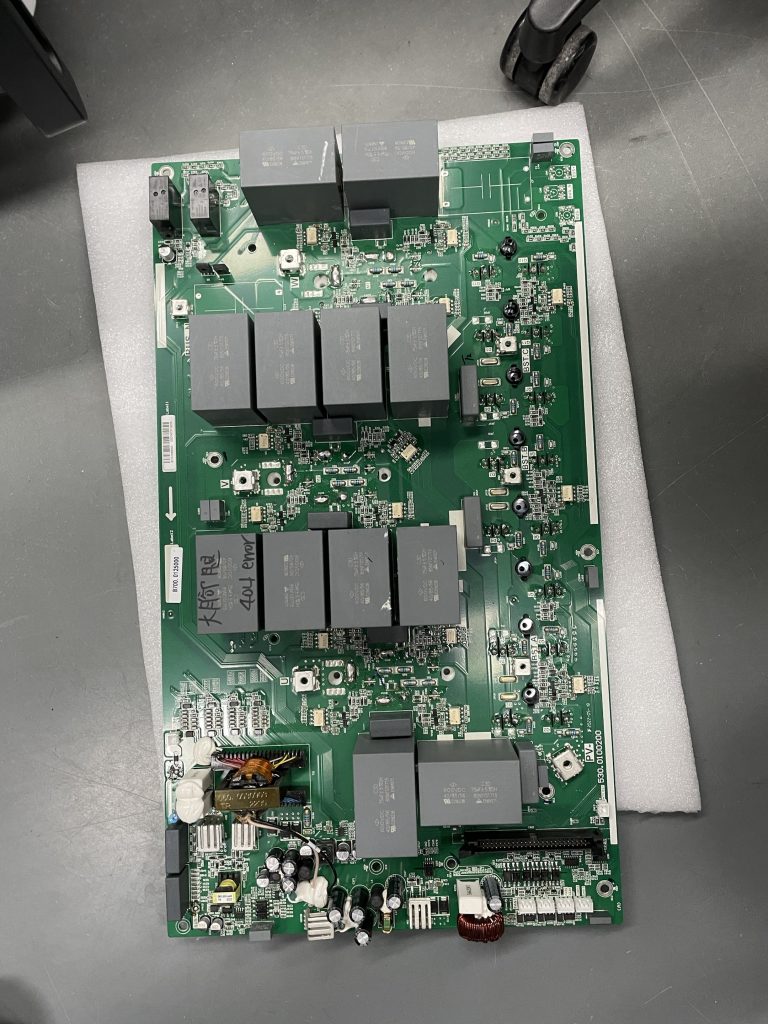

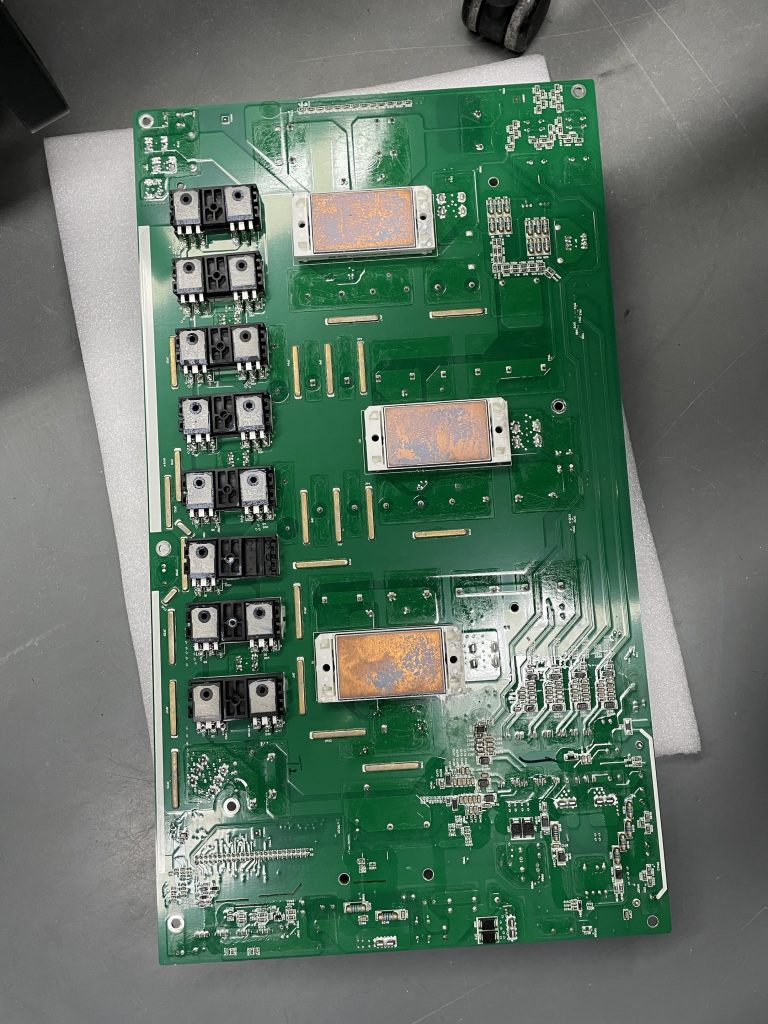

Mainboard
![This image has an empty alt attribute; its file name is 9de8c71c-0d1b-4ad6-a061-9457e82e52bd-768x1024.jpg](https://www.amosplanet.org/wp-content/uploads/2023/12/image.jpeg)
![](https://www.amosplanet.org/wp-content/uploads/2023/12/783a9bde-430d-4b69-ae40-32acccea0ce4-768x1024.jpg)

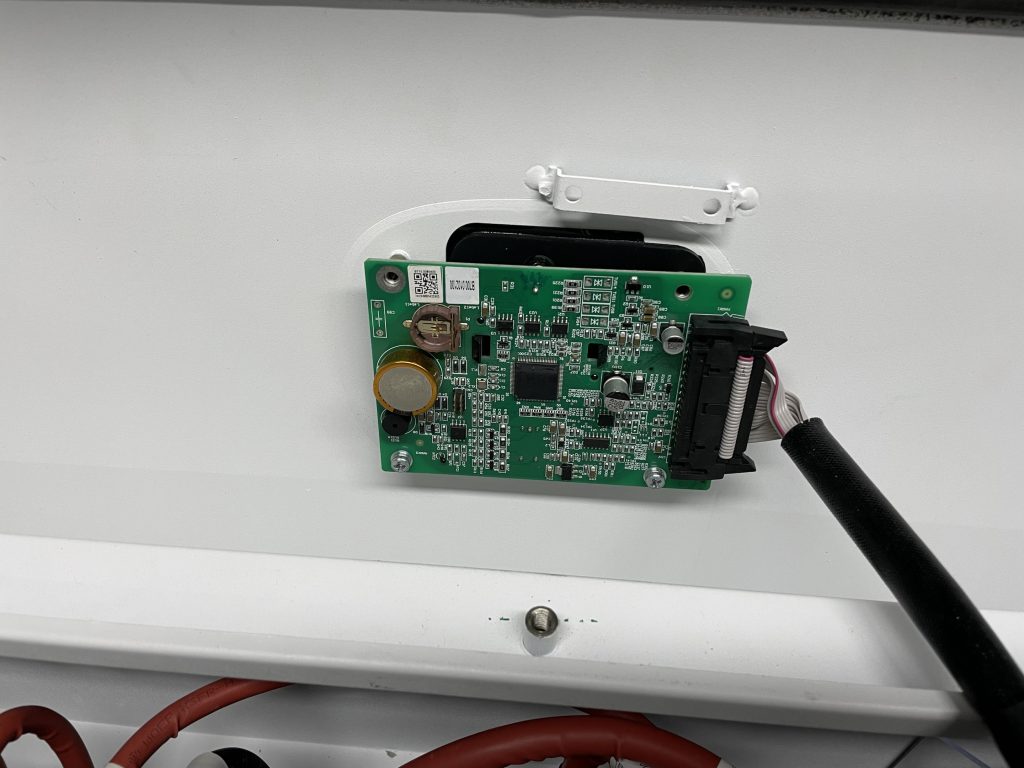

M3 board
![](https://www.amosplanet.org/wp-content/uploads/2023/12/978ee35d-9b85-40c1-90df-d4c241bb8239-1024x768.jpg)
Board Function Introduction

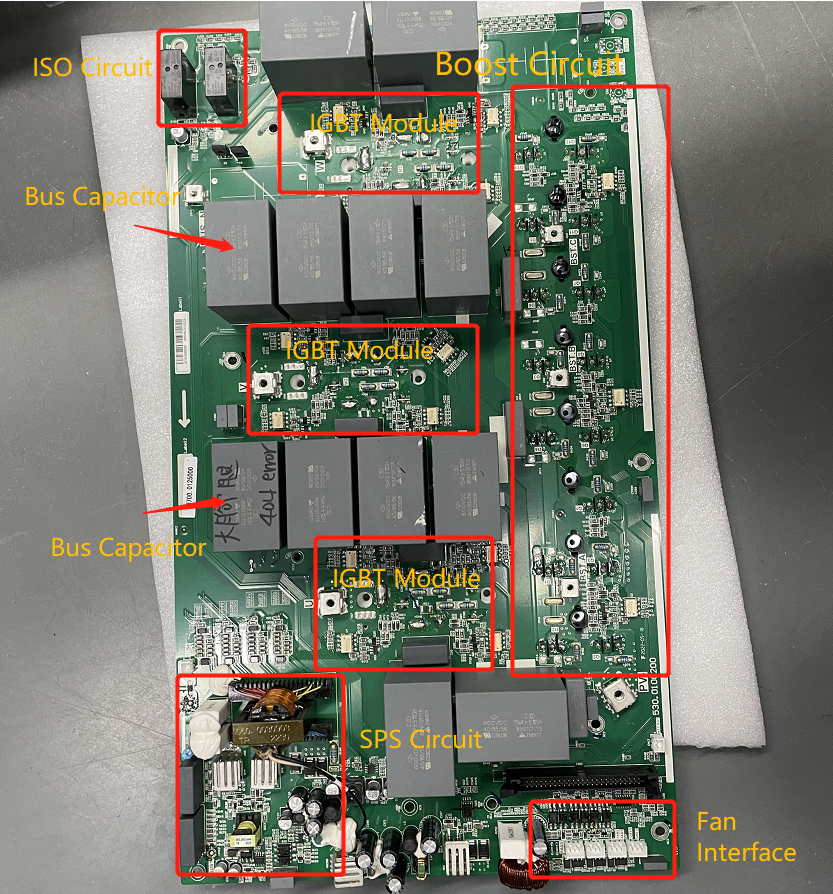

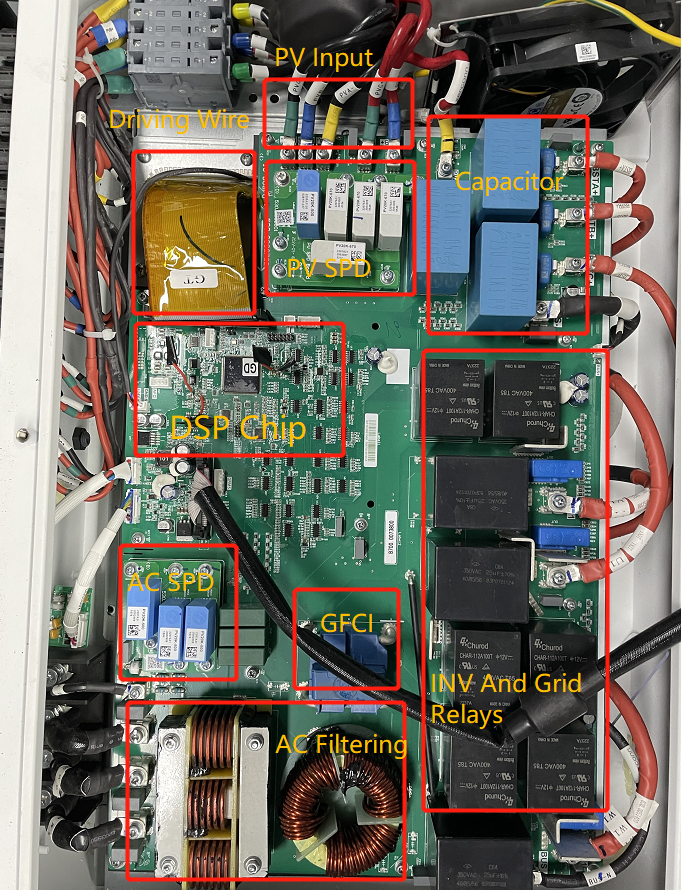

Mainboard
![](https://www.amosplanet.org/wp-content/uploads/2023/12/企业微信截图_17019547541353.png)
IO board
DSP Chip: 280075, NEXT to DSP chip, there is small chip called M0 chip
![](https://www.amosplanet.org/wp-content/uploads/2023/12/企业微信截图_17019551472677.png)

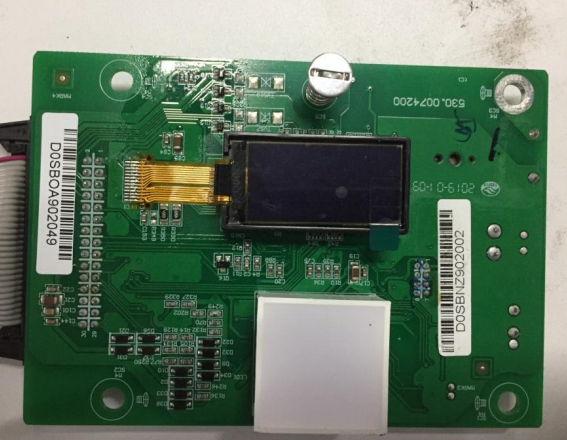

M3 board

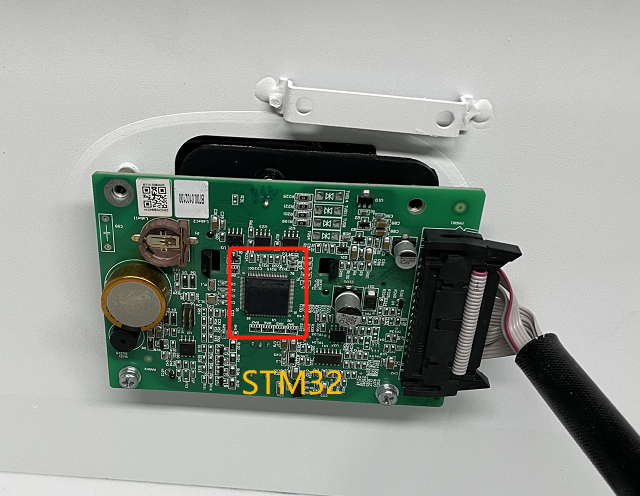

Chip: STM32
![](https://www.amosplanet.org/wp-content/uploads/2023/12/企业微信截图_17019559308009.png)
![](https://www.amosplanet.org/wp-content/uploads/2023/12/企业微信截图_17019559821662.png)
