How to Check Power Segment On SPF ES series

How to check power segment on SPF eS series

SPF 5000ES and SPF 35000 ES have different control boards( Actually control boards hardware are totally same, just firmware is different, to avoid clients flashing different firmware and cause the malfunciton, factory has the limit, so that you must use same power segment control board on same power segment inverter). Please highlight it. You can use the method below to distinguish them.


1.Press UP and Down at the same time

2. Type password: 111

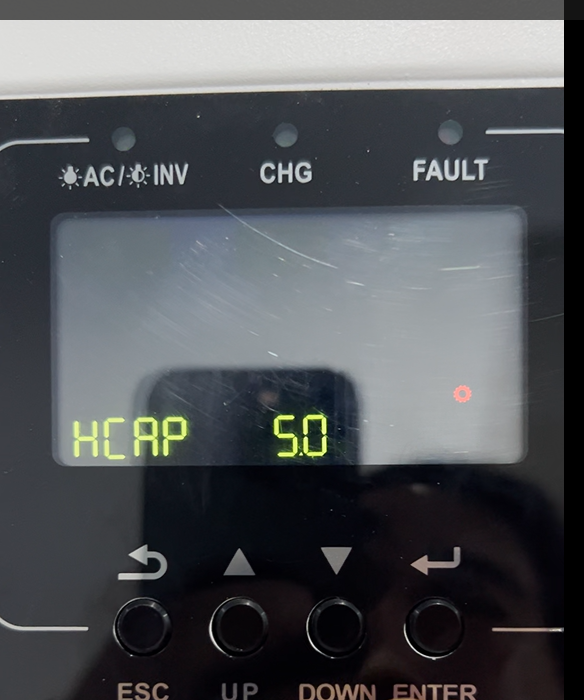

3. Switch to HCAP Page, Number represent Power segment, like 5, which is 5000W

Operation Video
