mIN-XH Series introduction
MIN 2500~6000TL-XH has same M3 board
MIN-XE M3 board can’t used in MIN-XH, but MIN-XH M3 board can be used in MIN-XE, because MIN-XH M3 board has extra chip which is in charge of battery communication
Please note that when M3 board has been exchanged, inverter S/N and model number needs to be reset.
There is off grid box that is used to switch to grid or connect to grid. Actually it is the relay inside the inverter.
MIN 2500~6000TL-XH Appearance
DRM: DEMAND RESPONSE MODES
DRED ( demand response enabling device ), can realize real-time and fast active power scheduling and reactive power scheduling of the grid, and the photovoltaic inverter can also run stably during the scheduling process. The power grid company requires the ability to remotely control the drm equipment and operate the energy storage inverter, so as to control the input and output power of the energy storage inverter, or to connect or disconnect from the grid.
MIN 2500~3000TL-XH Board Type
Mainboard
M3 board
MIN 2500~3000TL-XH Main Board, Firmware are totally same, excep model number. As hardware will be changed in future, so when you are ready to replace mainboard from other model. Please confirm to us.
MIN 3600~6000TL-XH Board Type
Mainboard
M3 board
MIN 3600~6000TL-XH Main Board, Firmware are totally same, excep model number. As hardware will be changed in future, so when you are ready to replace mainboard from other model. Please confirm to us.
MIN 3600~6000TL-XH Board Function
Mainboard
DSP chip is located on the upside of SPS circuit

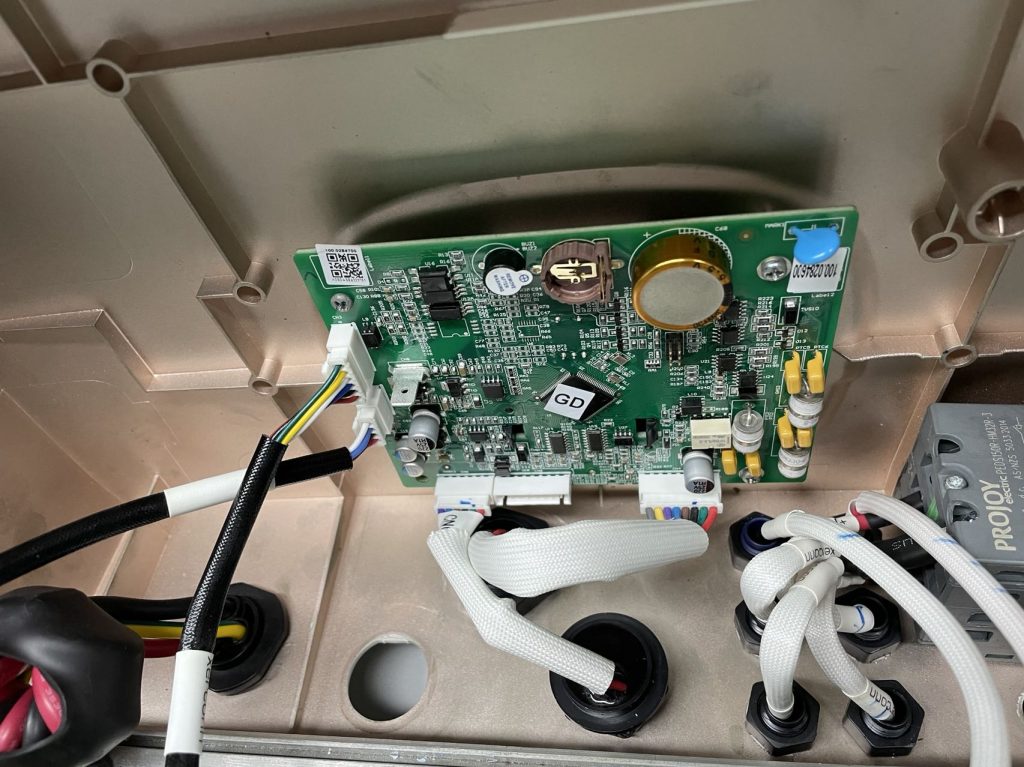

M3 board
M3 board uses GD chip.
